Actuator Series
KNX system products
4-Channel Switch Actuator
Product Features
- Manual Override Switch
- On/Off Delay Function
- Scene/Preset Control: 8-bit / 1 position
- Threshold Function
- Logic Functions (AND, OR, XOR, Gate)
- Forced Operation and Safety Functions
- Status Query Response
- Relay Position Selection upon Bus Voltage Failure/Restoration
- Staircase Lighting Function with Alarm and Adaptive Time Control
Product Parameters
Power Supply:
Bus Voltage: DC 21V ~ 30V, supplied via the bus
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Rated Load:
Rated Current (for 10A model): 10A, AC 250V, 50/60 Hz
Rated Current (for 20A model): 20A, AC 250V, 50/60 Hz
Operation and Indication:
A red LED and button for physical address assignment.
A flashing green LED indicates normal device operation.
Channel Output:
Configuration: 4-channel / 8-channel / 12-channel
Temperature Range:
Operation: -5 °C ~ +45 °C
Storage: -25 °C ~ +55 °C
Transport: -25 °C ~ +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/S4.10.1 | 90*73*64mm(L*W*H) | 4 | Standard 35mm DIN Rail | 10A，Without current detection |
| DL-E/S4.16.20.1 | 90*73*64mm(L*W*H) | 4 | Standard 35mm DIN Rail | 20A，Without current detection |
| DL-E/S4.16.20.1C | 90*73*64mm(L*W*H) | 4 | Standard 35mm DIN Rail | 20A，With current detection |
8-Channel Switch Actuator
Product Features
- Manual Override Switch
- On/Off Delay Function
- Scene/Preset Control: 8-bit / 1 position
- Threshold Function
- Logic Functions (AND, OR, XOR, Gate)
- Forced Operation and Safety Functions
- Status Query Response
- Relay Position Selection upon Bus Voltage Failure/Restoration
- Staircase Lighting Function with Alarm and Adaptive Time Control
Product Parameters
Power Supply:
Bus Voltage: DC 21V ~ 30V, supplied via the bus
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Rated Load:
Rated Current (for 10A model): 10A, AC 250V, 50/60 Hz
Rated Current (for 20A model): 20A, AC 250V, 50/60 Hz
Operation and Indication:
A red LED and button for physical address assignment.
A flashing green LED indicates normal device operation.
Channel Output:
Configuration: 4-channel / 8-channel / 12-channel
Temperature Range:
Operation: -5 °C ~ +45 °C
Storage: -25 °C ~ +55 °C
Transport: -25 °C ~ +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |

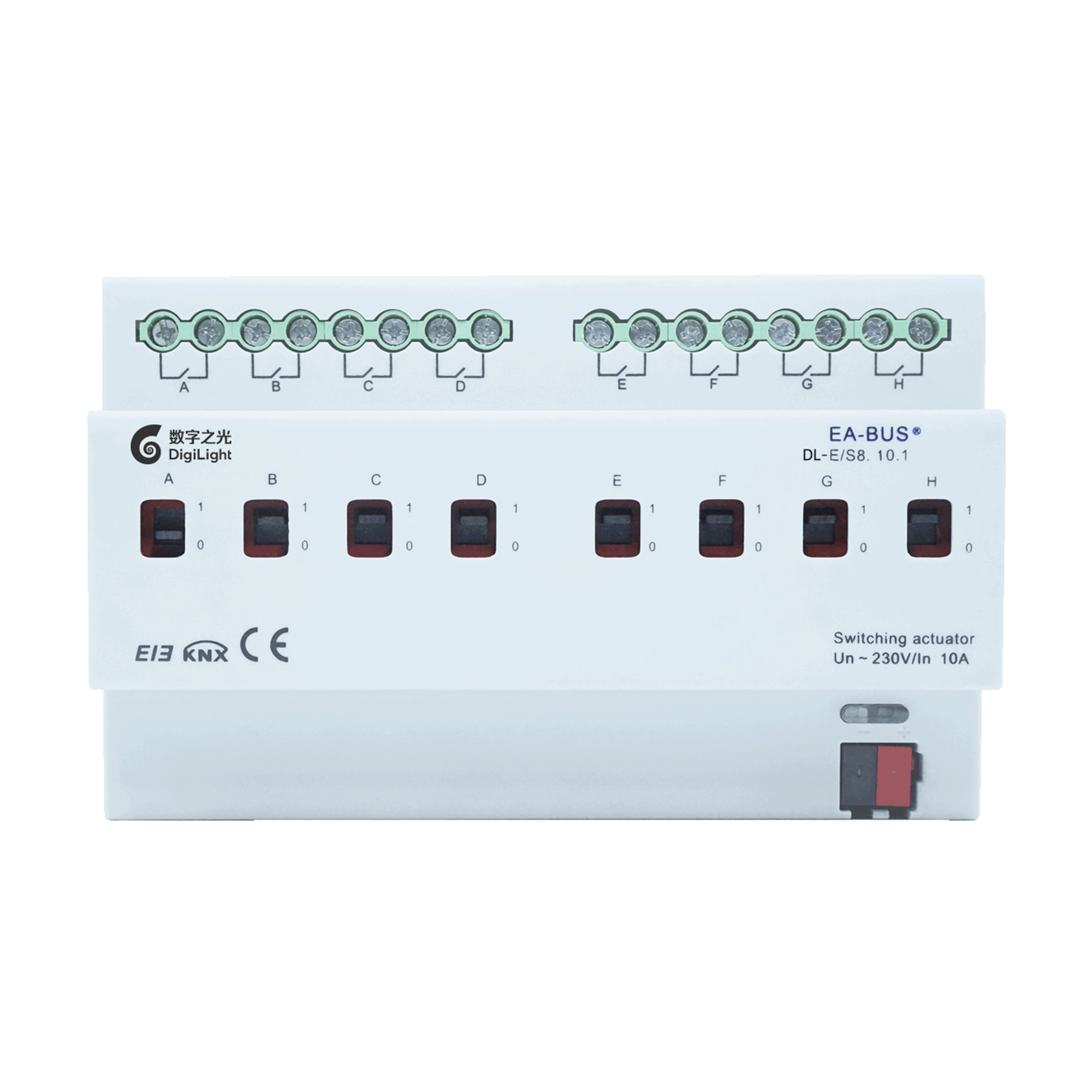

| DL-E/S8.10.1 | 90*146*64mm(L*W*H) | 8 | Standard 35mm DIN Rail | 10A，Without current detection |
| DL-E/S8.16.20.1 | 90*146*64mm(L*W*H) | 8 | Standard 35mm DIN Rail | 20A，Without current detection |
| DL-E/S8.16.20.1C | 90*146*64mm(L*W*H) | 8 | Standard 35mm DIN Rail | 20A，With current detection |
12-Channel Switch Actuator
Product Features
- Manual Override Switch
- On/Off Delay Function
- Scene/Preset Control: 8-bit / 1 position
- Threshold Function
- Logic Functions (AND, OR, XOR, Gate)
- Forced Operation and Safety Functions
- Status Query Response
- Relay Position Selection upon Bus Voltage Failure/Restoration
- Staircase Lighting Function with Alarm and Adaptive Time Control
Product Parameters
Power Supply:
Bus Voltage: DC 21V ~ 30V, supplied via the bus
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Rated Load:
Rated Current (for 10A model): 10A, AC 250V, 50/60 Hz
Rated Current (for 20A model): 20A, AC 250V, 50/60 Hz
Operation and Indication:
A red LED and button for physical address assignment.
A flashing green LED indicates normal device operation.
Channel Output:
Configuration: 4-channel / 8-channel / 12-channel
Temperature Range:
Operation: -5 °C ~ +45 °C
Storage: -25 °C ~ +55 °C
Transport: -25 °C ~ +70 °C

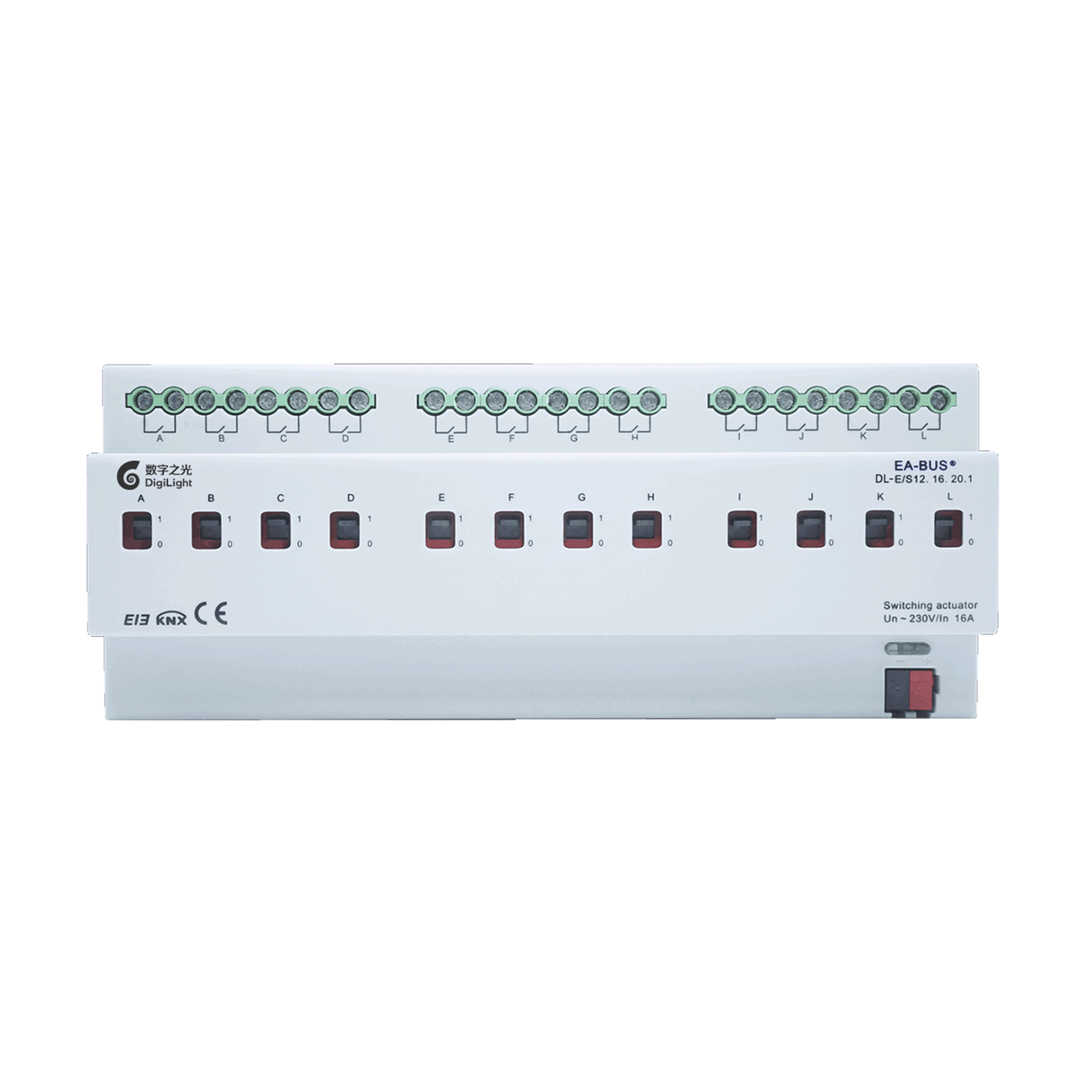

Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/S12.10.1 | 90*219*64mm(L*W*H) | 12 | Standard 35mm DIN Rail | 10A，Without current detection |
| DL-E/S12.16.20.1 | 90*219*64mm(L*W*H) | 12 | Standard 35mm DIN Rail | 20A，Without current detection |
| DL-E/S12.16.20.1C | 90*219*64mm(L*W*H) | 12 | Standard 35mm DIN Rail | 20A，With current detection |
Embedded 4-Channel Multi-Function Switch
Product Features
- Manual Override Switch
- On/Off Delay Function
- Scene/Preset Control: 8-bit / 1 position
- Threshold Function
- Logic Functions (AND, OR, XOR, Gate)
- Forced Operation and Safety Functions
- Status Query Response
- Relay Position Selection upon Bus Voltage Failure/Restoration
- Staircase Lighting Function with Alarm and Adaptive Time Control
Product Parameters
Power Supply:
Bus Voltage: DC 21V ~ 30V, supplied via the bus
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Rated Load:
Rated Current (for 10A model): 10A, AC 250V, 50/60 Hz
Rated Current (for 20A model): 20A, AC 250V, 50/60 Hz
Operation and Indication:
A red LED and button for physical address assignment.
A flashing green LED indicates normal device operation.
Channel Output:
Configuration: 4-channel / 8-channel / 12-channel
Temperature Range:
Operation: -5 °C ~ +45 °C
Storage: -25 °C ~ +55 °C
Transport: -25 °C ~ +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/MRO404.06.1 | 56*51*22mm(L*W*H) | — | Flush-mounted box | 6A，4-channel dry contact |
4-Channel 1A Thyristor Dimming Actuator
Product Functional
- Switching Function (On/Off)
- Relative/Absolute Dimming
- Status Reporting
- Preset Value Configuration
- 15 Scene Settings
- Sequential Operation
- Combined Scene Function
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V – 30V (supplied via bus)
Operating Current: < 12 mA
Standby Power Consumption: < 360 mW
Auxiliary Power Supply: AC 95V – 255V, 50/60 Hz
Power Consumption:** < 4.5 W
Operation & Indication
Red LED and button for physical address assignment.
Flashing green LED indicates normal device operation.
Output Parameters: AC 230V, 50/60 Hz, Phase Dimming
1-Channel, Max. Load:** 10A per channel
1-Channel, Max. Load:** 20A per channel
2-Channel, Max. Load:** 10A per channel
4-Channel, Max. Load:** 5A per channel
Min. Load:** 10 W per channel
Power Dissipation:** Max. 5 W per channel
Temperature Range
Operation: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/DAS4.1.1 | 90*73*64mm(L*W*H) | 4 | Standard 35mm DIN Rail | 1A Thyristor Dimmer |
4-Channel 3A Dimming Actuator
Product Functional
- Switching Function (On/Off)
- Relative/Absolute Dimming
- Status Reporting
- Preset Value Configuration
- 15 Scene Settings
- Sequential Operation
- Combined Scene Function
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V – 30V (supplied via bus)
Operating Current: < 12 mA
Standby Power Consumption: < 360 mW
Auxiliary Power Supply: AC 95V – 255V, 50/60 Hz
Power Consumption:** < 4.5 W
Operation & Indication
Red LED and button for physical address assignment.
Flashing green LED indicates normal device operation.
Output Parameters: AC 230V, 50/60 Hz, Phase Dimming
1-Channel, Max. Load:** 10A per channel
1-Channel, Max. Load:** 20A per channel
2-Channel, Max. Load:** 10A per channel
4-Channel, Max. Load:** 5A per channel
Min. Load:** 10 W per channel
Power Dissipation:** Max. 5 W per channel
Temperature Range
Operation: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C

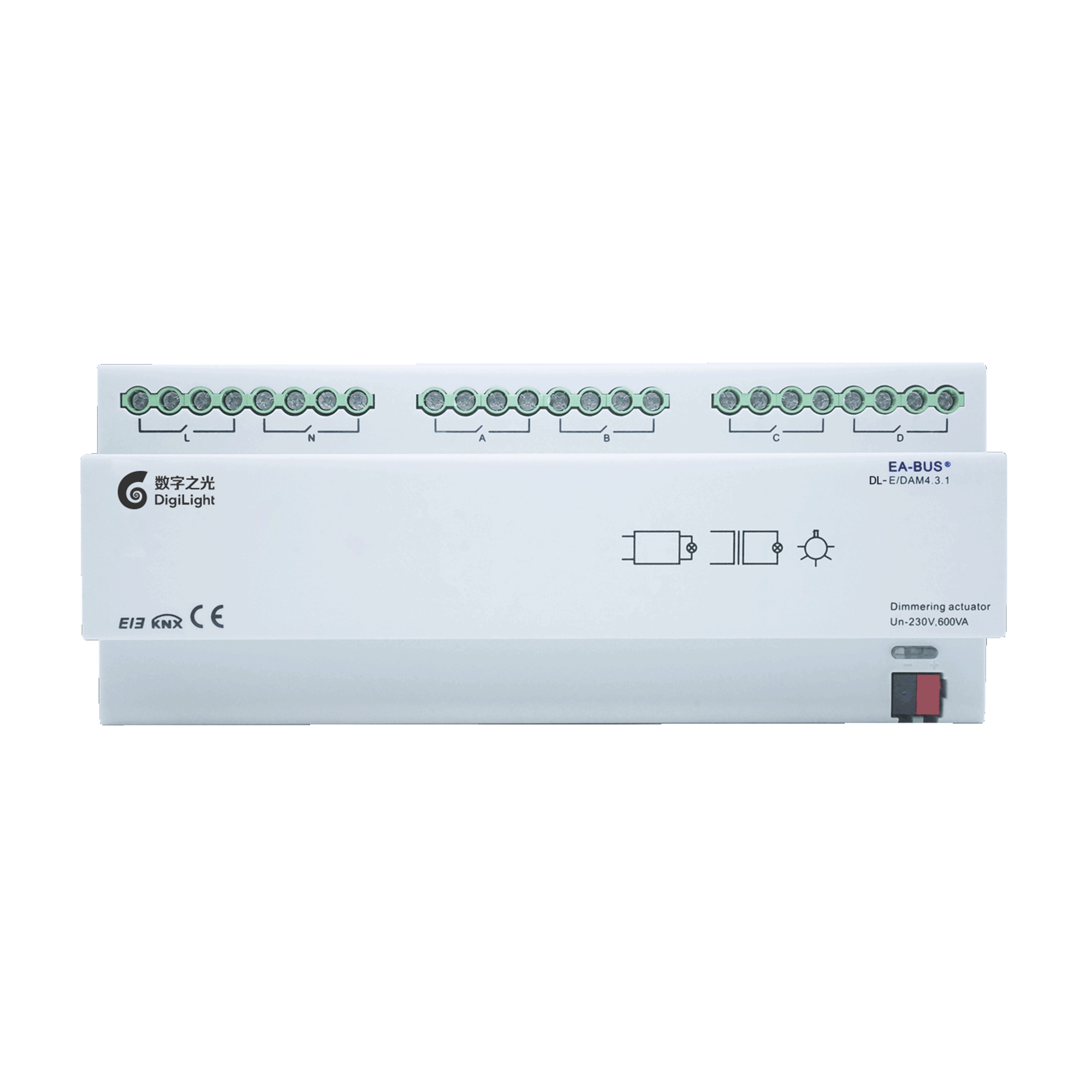

Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/DAM4.3.1 | 90*219*64mm(L*W*H) | 12 | Standard 35mm DIN Rail | 3A，MOS Tube |
4-Channel 5A Dimming Actuator
Product Functional
- Switching Function (On/Off)
- Relative/Absolute Dimming
- Status Reporting
- Preset Value Configuration
- 15 Scene Settings
- Sequential Operation
- Combined Scene Function
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V – 30V (supplied via bus)
Operating Current: < 12 mA
Standby Power Consumption: < 360 mW
Auxiliary Power Supply: AC 95V – 255V, 50/60 Hz
Power Consumption:** < 4.5 W
Operation & Indication
Red LED and button for physical address assignment.
Flashing green LED indicates normal device operation.
Output Parameters: AC 230V, 50/60 Hz, Phase Dimming
1-Channel, Max. Load:** 10A per channel
1-Channel, Max. Load:** 20A per channel
2-Channel, Max. Load:** 10A per channel
4-Channel, Max. Load:** 5A per channel
Min. Load:** 10 W per channel
Power Dissipation:** Max. 5 W per channel
Temperature Range
Operation: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |

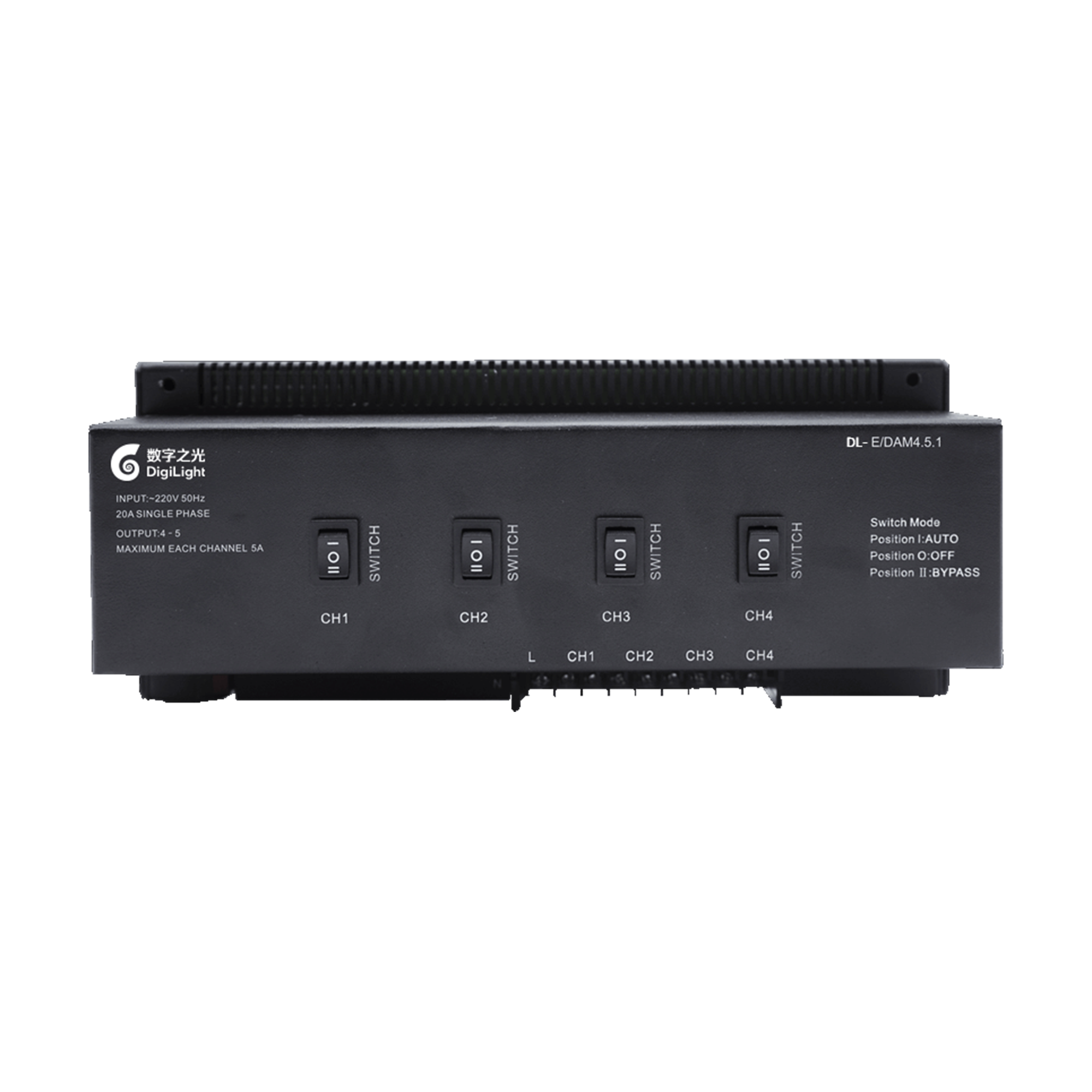

| DL-E/DAM4.5.1 | 287.5*121.5*64mm(L*W*H) | — | Wall bracket mounting | 5A，MOS Tube |
1-Channel 10A Dimming Actuator
Product Functional
- Switching Function (On/Off)
- Relative/Absolute Dimming
- Status Reporting
- Preset Value Configuration
- 15 Scene Settings
- Sequential Operation
- Combined Scene Function
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V – 30V (supplied via bus)
Operating Current: < 12 mA
Standby Power Consumption: < 360 mW
Auxiliary Power Supply: AC 95V – 255V, 50/60 Hz
Power Consumption:** < 4.5 W
Operation & Indication
Red LED and button for physical address assignment.
Flashing green LED indicates normal device operation.
Output Parameters: AC 230V, 50/60 Hz, Phase Dimming
1-Channel, Max. Load:** 10A per channel
1-Channel, Max. Load:** 20A per channel
2-Channel, Max. Load:** 10A per channel
4-Channel, Max. Load:** 5A per channel
Min. Load:** 10 W per channel
Power Dissipation:** Max. 5 W per channel
Temperature Range
Operation: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |

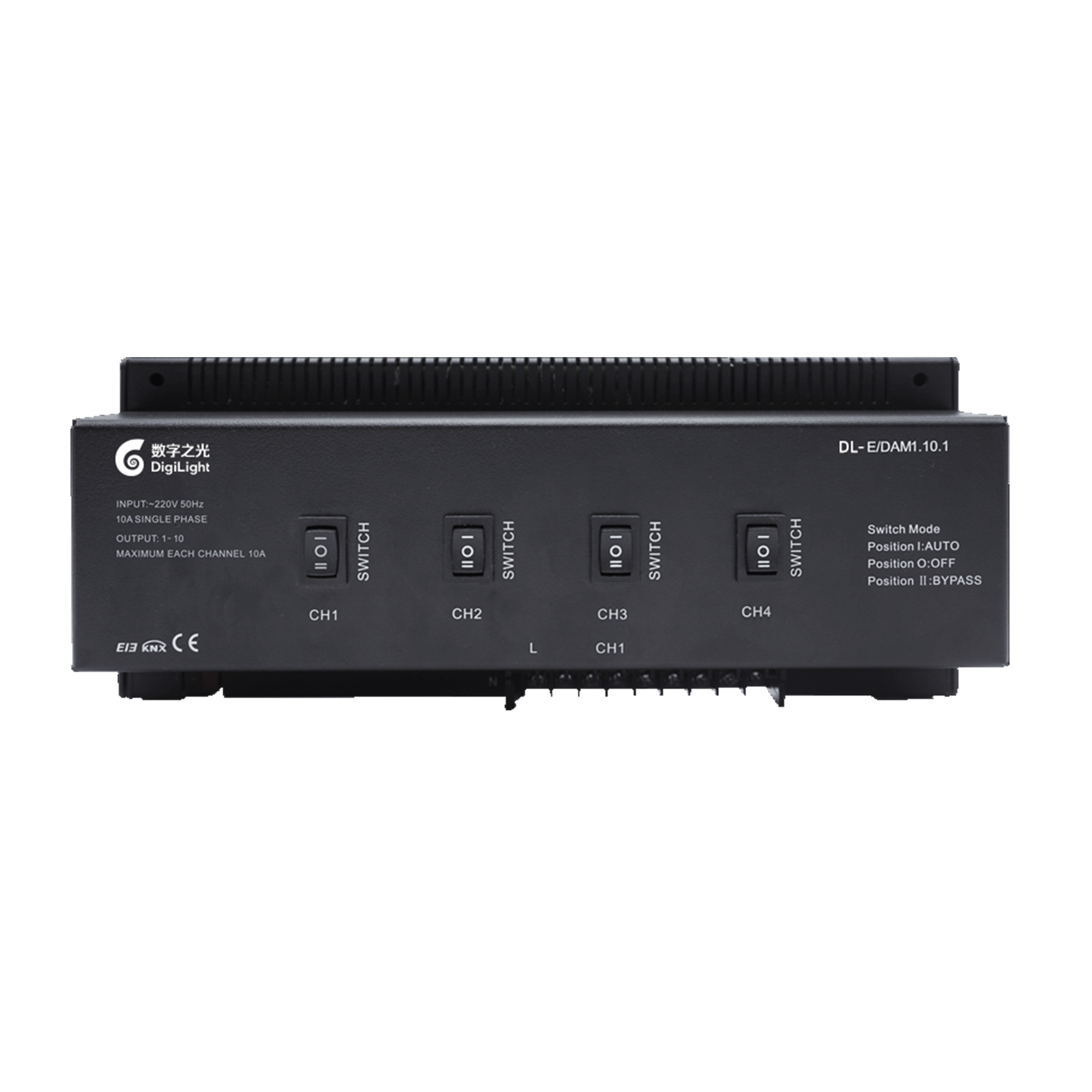

| DL-E/DAM1.10.1 | 287.5*121.5*64mm(L*W*H) | — | Wall bracket mounting | 10A，MOS Tube |
2-Channel 10A Dimming Actuator
Product Functional
- Switching Function (On/Off)
- Relative/Absolute Dimming
- Status Reporting
- Preset Value Configuration
- 15 Scene Settings
- Sequential Operation
- Combined Scene Function
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V – 30V (supplied via bus)
Operating Current: < 12 mA
Standby Power Consumption: < 360 mW
Auxiliary Power Supply: AC 95V – 255V, 50/60 Hz
Power Consumption:** < 4.5 W
Operation & Indication
Red LED and button for physical address assignment.
Flashing green LED indicates normal device operation.
Output Parameters: AC 230V, 50/60 Hz, Phase Dimming
1-Channel, Max. Load:** 10A per channel
1-Channel, Max. Load:** 20A per channel
2-Channel, Max. Load:** 10A per channel
4-Channel, Max. Load:** 5A per channel
Min. Load:** 10 W per channel
Power Dissipation:** Max. 5 W per channel
Temperature Range
Operation: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |

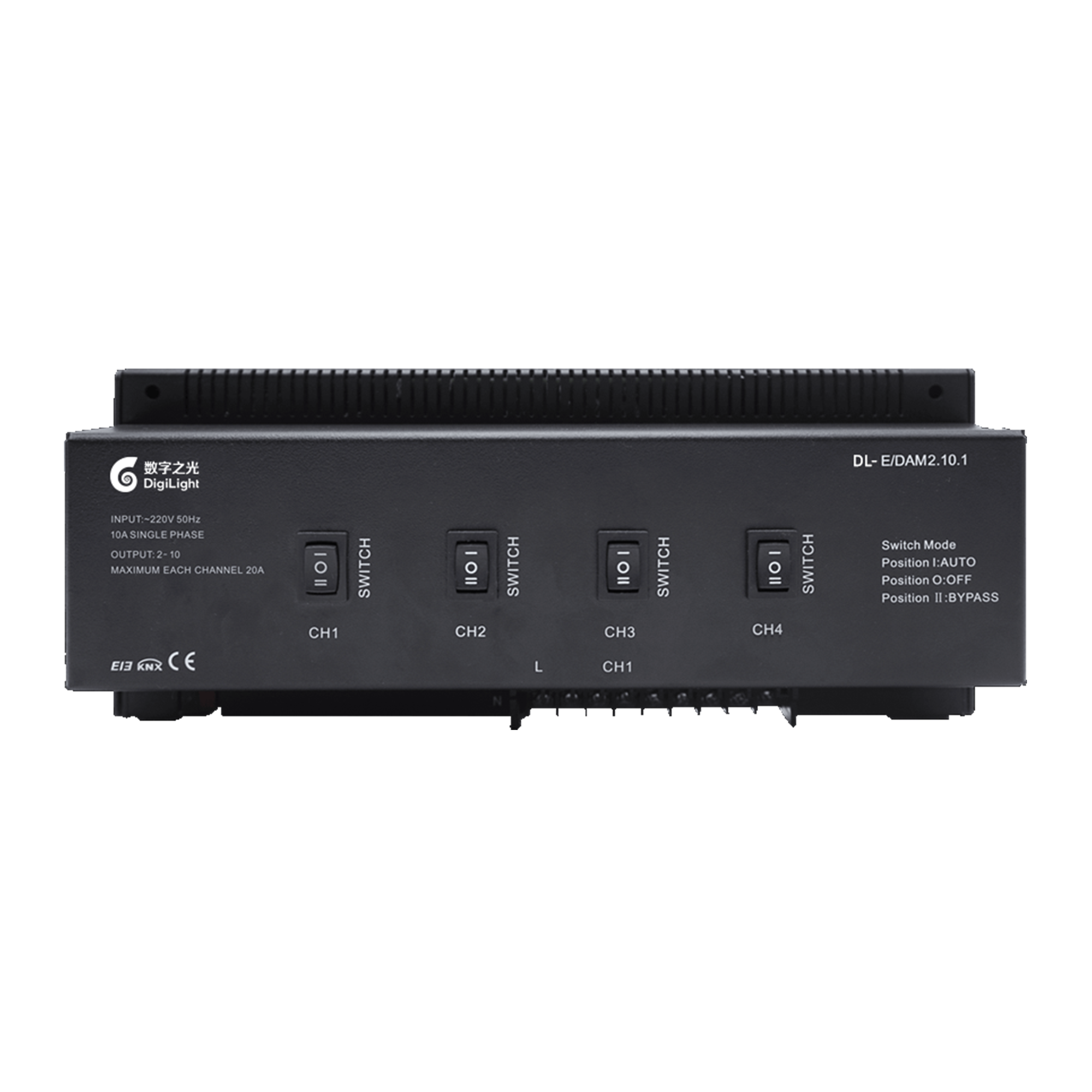

| DL-E/DAM2.10.1 | 287.5*121.5*64mm(L*W*H) | — | Wall bracket mounting | 10A，MOS Tube |
1-Channel 20A Dimming Actuator
Product Functional
- Switching Function (On/Off)
- Relative/Absolute Dimming
- Status Reporting
- Preset Value Configuration
- 15 Scene Settings
- Sequential Operation
- Combined Scene Function
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V – 30V (supplied via bus)
Operating Current: < 12 mA
Standby Power Consumption: < 360 mW
Auxiliary Power Supply: AC 95V – 255V, 50/60 Hz
Power Consumption:** < 4.5 W
Operation & Indication
Red LED and button for physical address assignment.
Flashing green LED indicates normal device operation.
Output Parameters: AC 230V, 50/60 Hz, Phase Dimming
1-Channel, Max. Load:** 10A per channel
1-Channel, Max. Load:** 20A per channel
2-Channel, Max. Load:** 10A per channel
4-Channel, Max. Load:** 5A per channel
Min. Load:** 10 W per channel
Power Dissipation:** Max. 5 W per channel
Temperature Range
Operation: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification

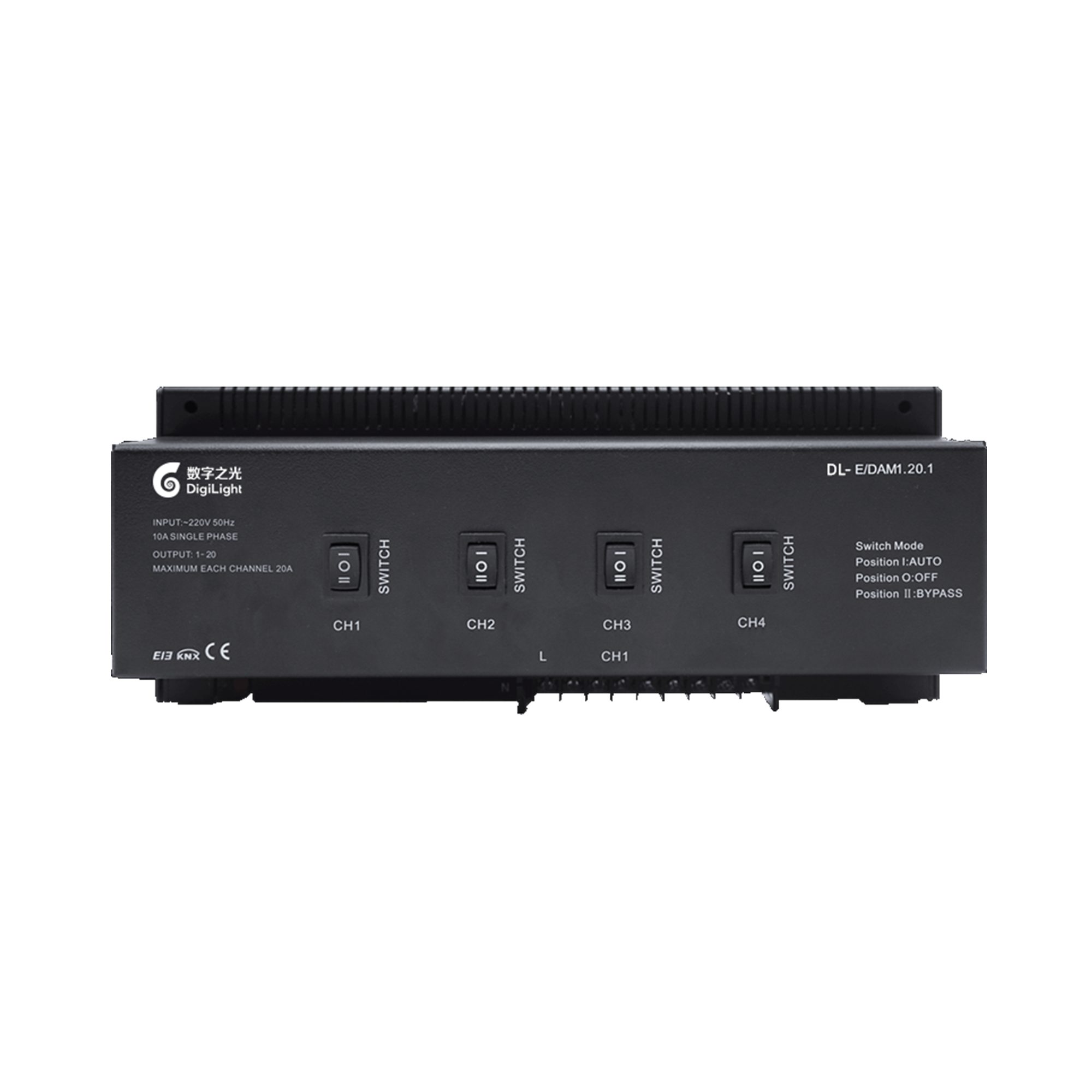

| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/DAM1.20.1 | 287.5*121.5*64mm(L*W*H) | — | Wall bracket mounting | 20A，MOS Tube |
4-Channel 0-10V Dimming Actuator
Product Functional
- On/Off Switching
- Relative/Absolute Dimming
- Status and Error Reporting
- Preset Value Function
- 15 Scene Settings
- Bus Reset Status Setting Function
- 0/1-10V Output, each channel with an independent 16A relay
Product Parameters
Power Supply & Input
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power Supply: AC 95V ~ 255V, 50/60 Hz
Output Specifications
Relay Output: 16A
0/1-10V Output Current: < 100 mA
Product appearance
Product specification

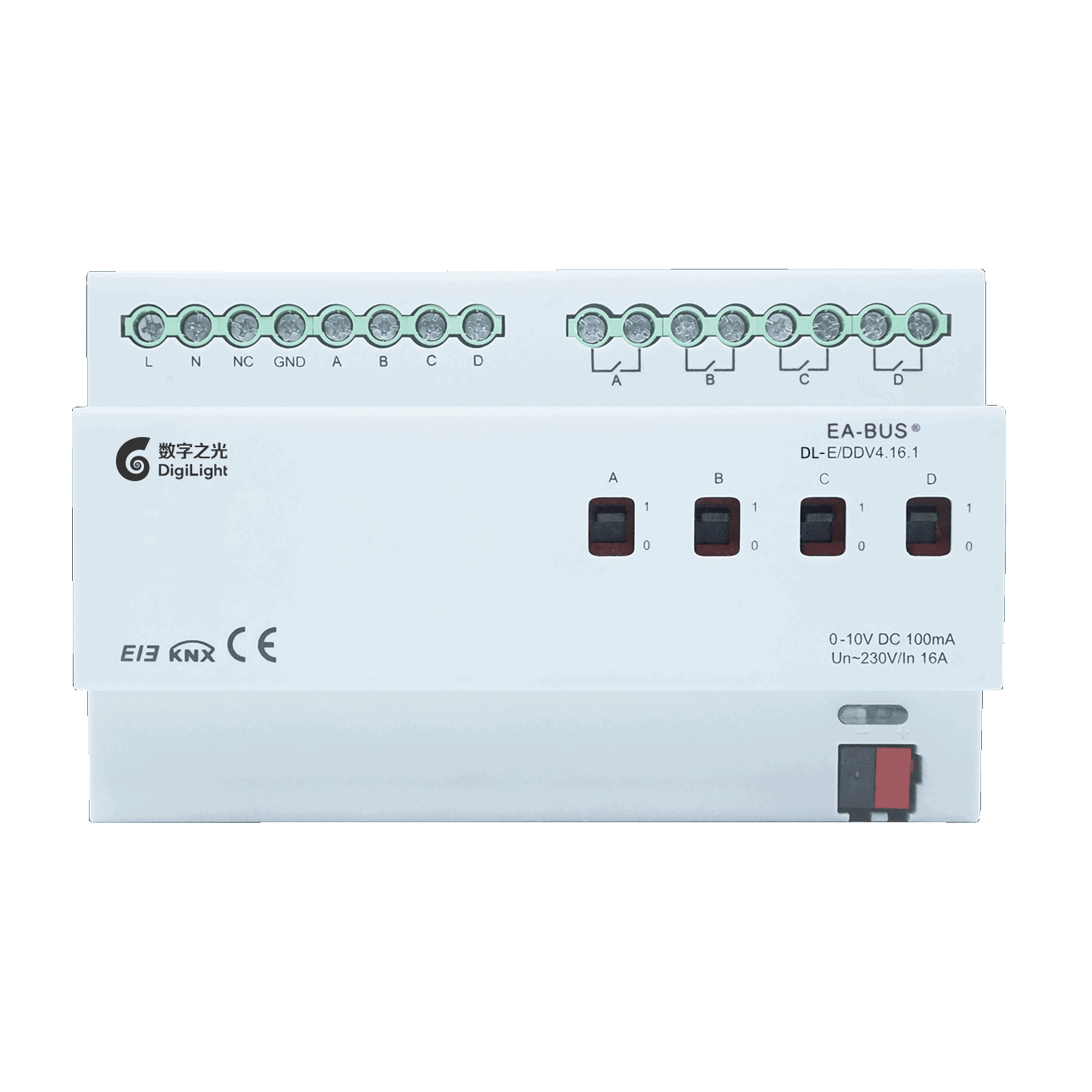

| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/DDV4.16.1 | 90*146*64mm(L*W*H) | 8 | Standard 35mm DIN Rail | 16A Independent Relay Output |
8-Channel 0-10V Dimming Actuator
Product Functional
- On/Off Switching
- Relative/Absolute Dimming
- Status and Error Reporting
- Preset Value Function
- 15 Scene Settings
- Bus Reset Status Setting Function
- 0/1-10V Output, each channel with an independent 16A relay
Product Parameters
Power Supply & Input
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power Supply: AC 95V ~ 255V, 50/60 Hz
Output Specifications
Relay Output: 16A
0/1-10V Output Current: < 100 mA
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/DDV8.16.1 | 90*219*64mm(L*W*H) | 12 | Standard 35mm DIN Rail | 16A Independent Relay Output |
Embedded 3-Channel 0-10V Dimmer
Product Functional
- On/Off Switching
- Relative/Absolute Dimming
- Status and Error Reporting
- Preset Value Function
- 15 Scene Settings
- Bus Reset Status Setting Function
- 0/1-10V Output, each channel with an independent 16A relay
Product Parameters
Power Supply & Input
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power Supply: AC 95V ~ 255V, 50/60 Hz
Output Specifications
Relay Output: 16A
0/1-10V Output Current: < 100 mA
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |

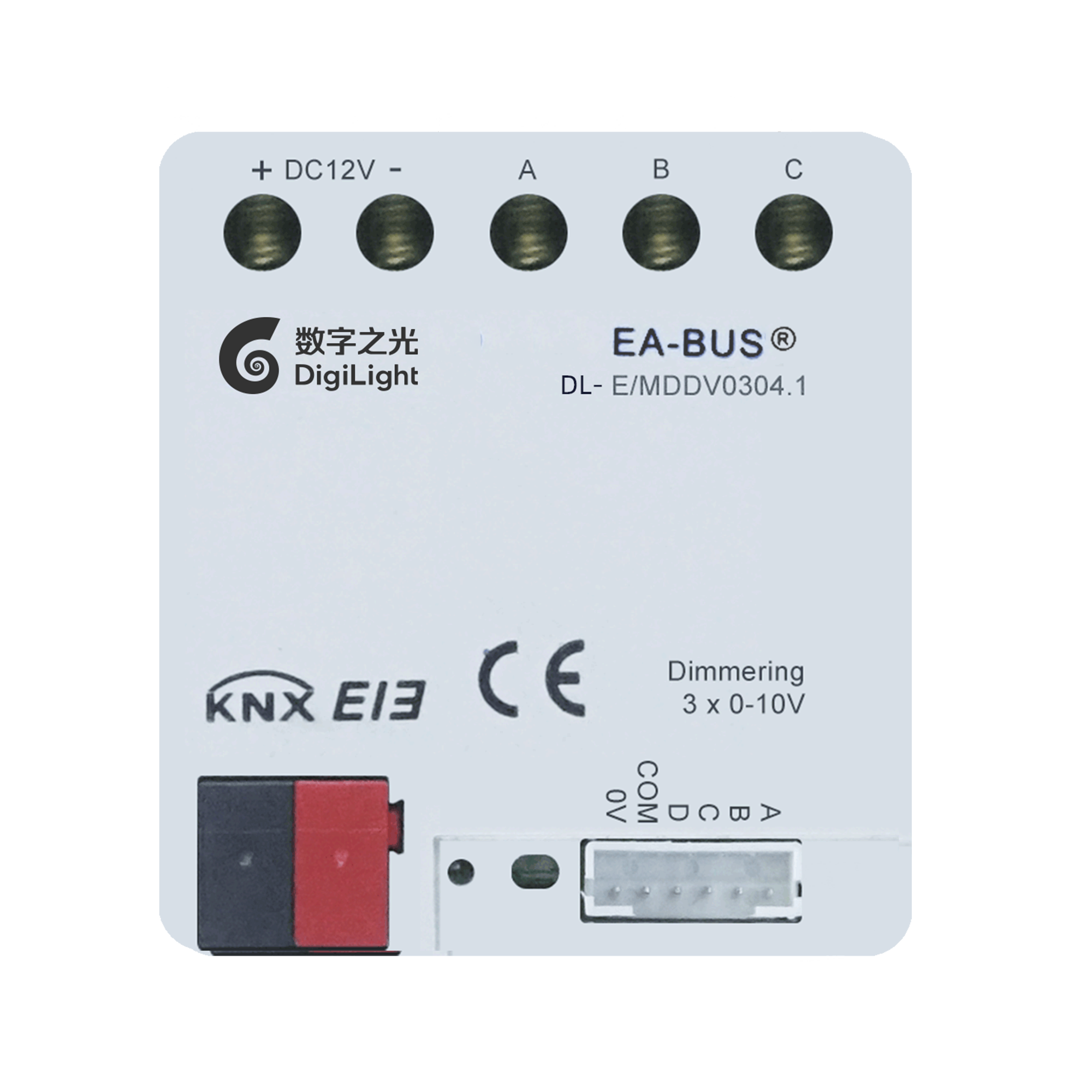

| DL-E/MDDV0304.1 | 56*51*22mm(L*W*H) | — | Flush-mounted box | 0-10V，4-channel dry contact |

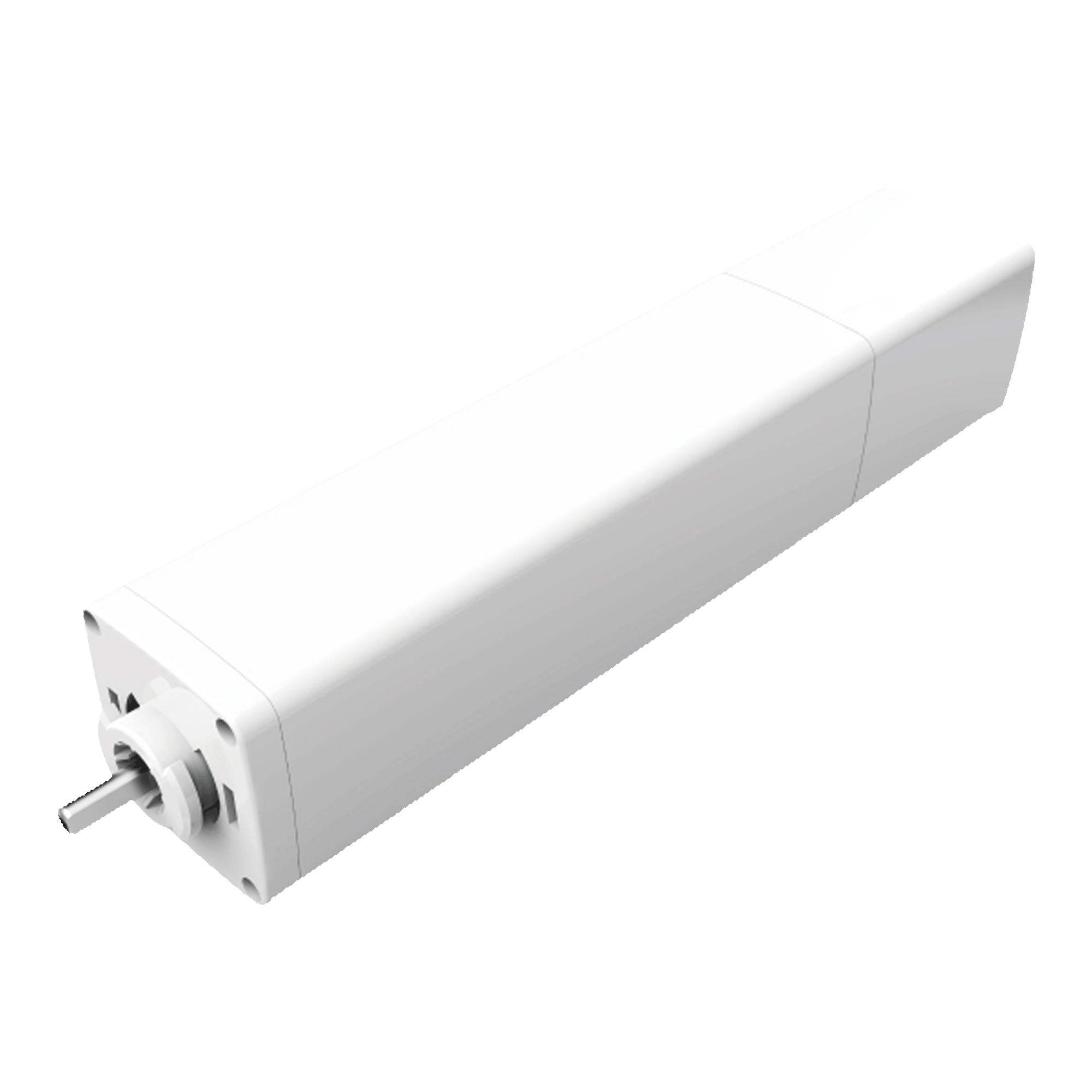

KNX Blind/Curtain Motor
Product Features
- Pull-Cord Start Function: When powered on, gently pull the curtain about 10cm in one direction by hand, and it will automatically begin the full open or close operation.
- Manual Override during Power Failure: During a power outage, the curtain can be operated manually with ease, just like a standard curtain.
- Enables smart opening and closing of home curtains.
- Obstacle Detection Auto-Stop: If an obstacle is encountered during operation, the motor stops automatically to protect the system and the curtain.
- Modular Track Design: Tracks can be freely assembled and connected to fit various window sizes.
- Automatic Travel Setting: The motor can automatically set its open and close limits, either upon initial installation or after a database download, with no manual configuration needed.
- Travel Memory Function: The programmed travel settings are permanently retained in memory, even after a power loss.
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: 360 mW
Auxiliary Power Supply: AC 100V ~ 240V, 50Hz/60Hz
Rated Power: 40 W
Mechanical Specifications
Maximum Straight Track Length: 12 m
Motor Weight: 1 kg
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/WDJ40.1 | 300*50*65mm(L*W*H) | — | — | Includes 4m rail |
4-Channel Blind Actuator
Product Features
Supports blinds and curtains
Scene/Preset function
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power Supply: AC 95V ~ 255V, 50/60 Hz
Temperature Range
Operation: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |

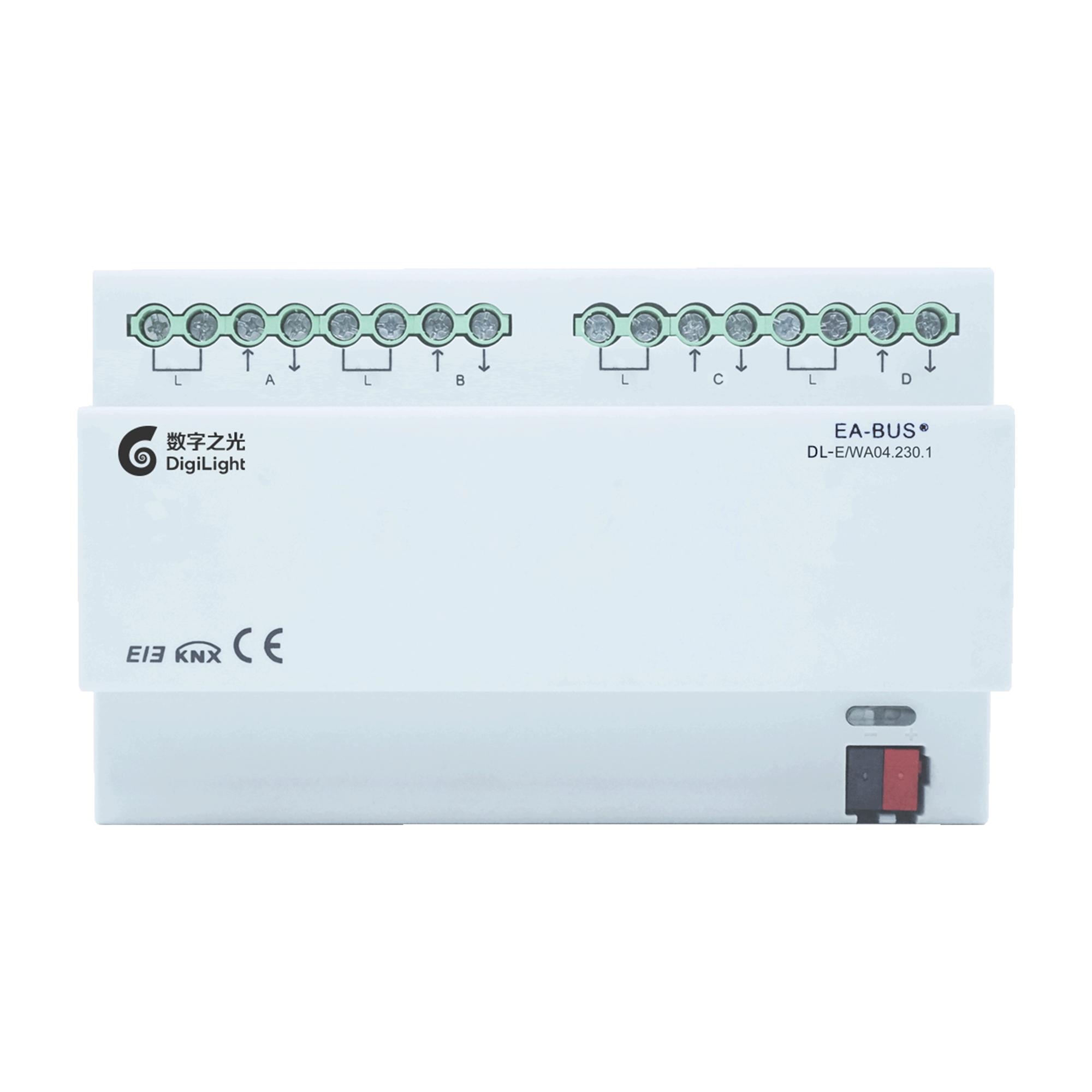

| DL-E/WA04.230.1 | 90*146*64mm(L*W*H) | 8 | Standard 35mm DIN Rail | — |
2-Channel Dry Contact Blind Interface
Product Features
- Compatible with both curtain and blind motors.
- Supports pulse (step-by-step) and DC voltage control signals.
- Output section is electrically isolated from the KNX bus.
- Scene function support.
- On/Off and percentage-based control.
Product Parameters
Electrical Parameters
Bus Voltage: 21-30V DC, supplied via bus
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Indication & Programming
Red LED and programming button for physical address setting
Green LED indicates normal device operation at the application layer
Connection Terminals
EIB/KNX Bus Connection: Terminal for ø0.8mm conductors
Dry Contact Output: 6-pin terminals (x2)
Environmental Conditions
Operating Temperature: –5°C to +45°C
Storage Temperature: –25°C to +55°C
Transport Temperature: –25°C to +70°C
Relative Humidity: < 93% (non-condensing)
Output Specifications
Output Voltage: DC/AC, max. 36V
Output Current: max. 400 mA
Product appearance
Product specification

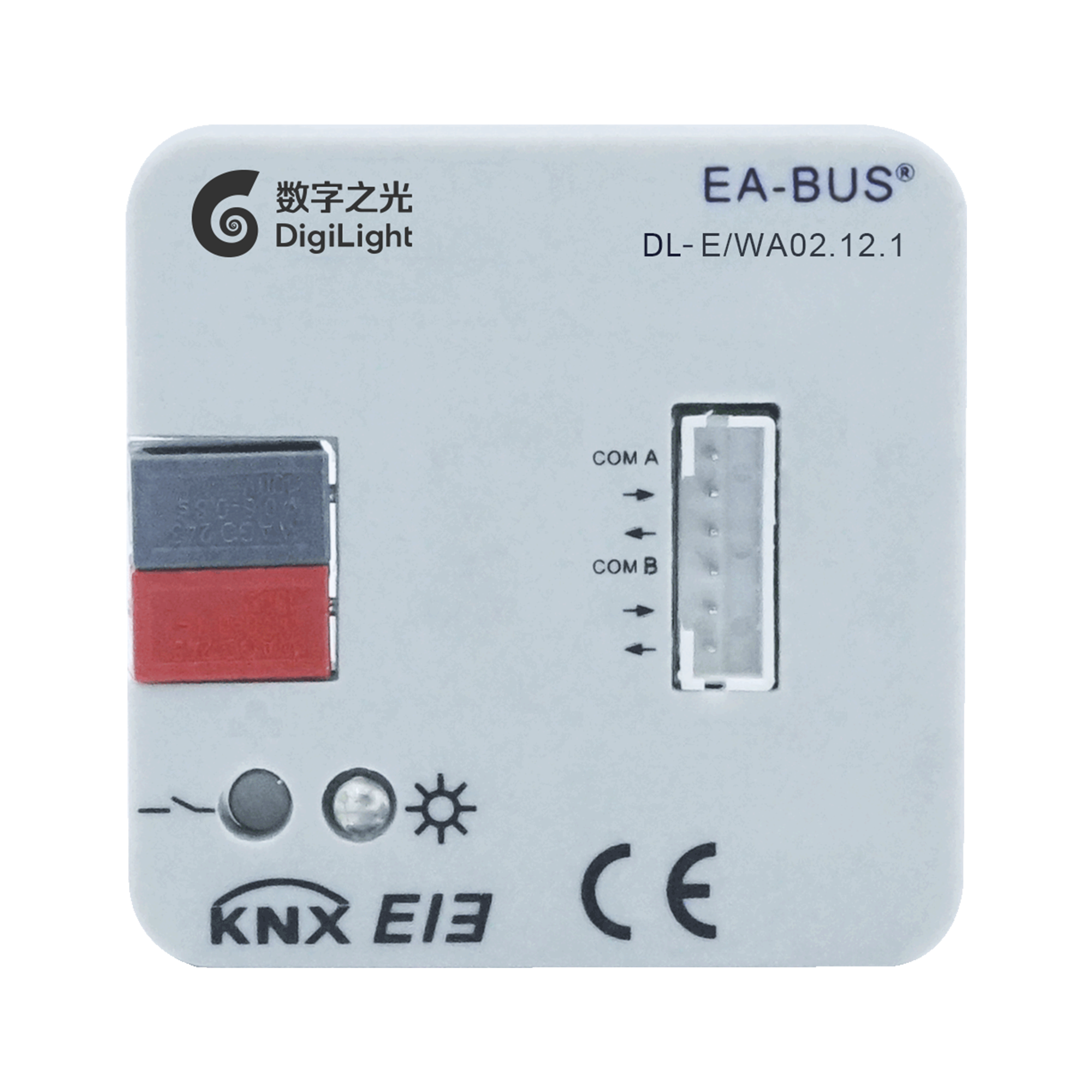

| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/WA02.12.1 | 43*43*11mm(L*W*H) | — | Flush-mounted box | — |
4-Channel Dry Contact Blind Interface
Product Features
- Compatible with both curtain and blind motors.
- Supports pulse (step-by-step) and DC voltage control signals.
- Output section is electrically isolated from the KNX bus.
- Scene function support.
- On/Off and percentage-based control.
Product Parameters
Electrical Parameters
Bus Voltage: 21-30V DC, supplied via bus
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Indication & Programming
Red LED and programming button for physical address setting
Green LED indicates normal device operation at the application layer
Connection Terminals
EIB/KNX Bus Connection: Terminal for ø0.8mm conductors
Dry Contact Output: 6-pin terminals (x2)
Environmental Conditions
Operating Temperature: –5°C to +45°C
Storage Temperature: –25°C to +55°C
Transport Temperature: –25°C to +70°C
Relative Humidity: < 93% (non-condensing)
Output Specifications
Output Voltage: DC/AC, max. 36V
Output Current: max. 400 mA
Product appearance
Product specification

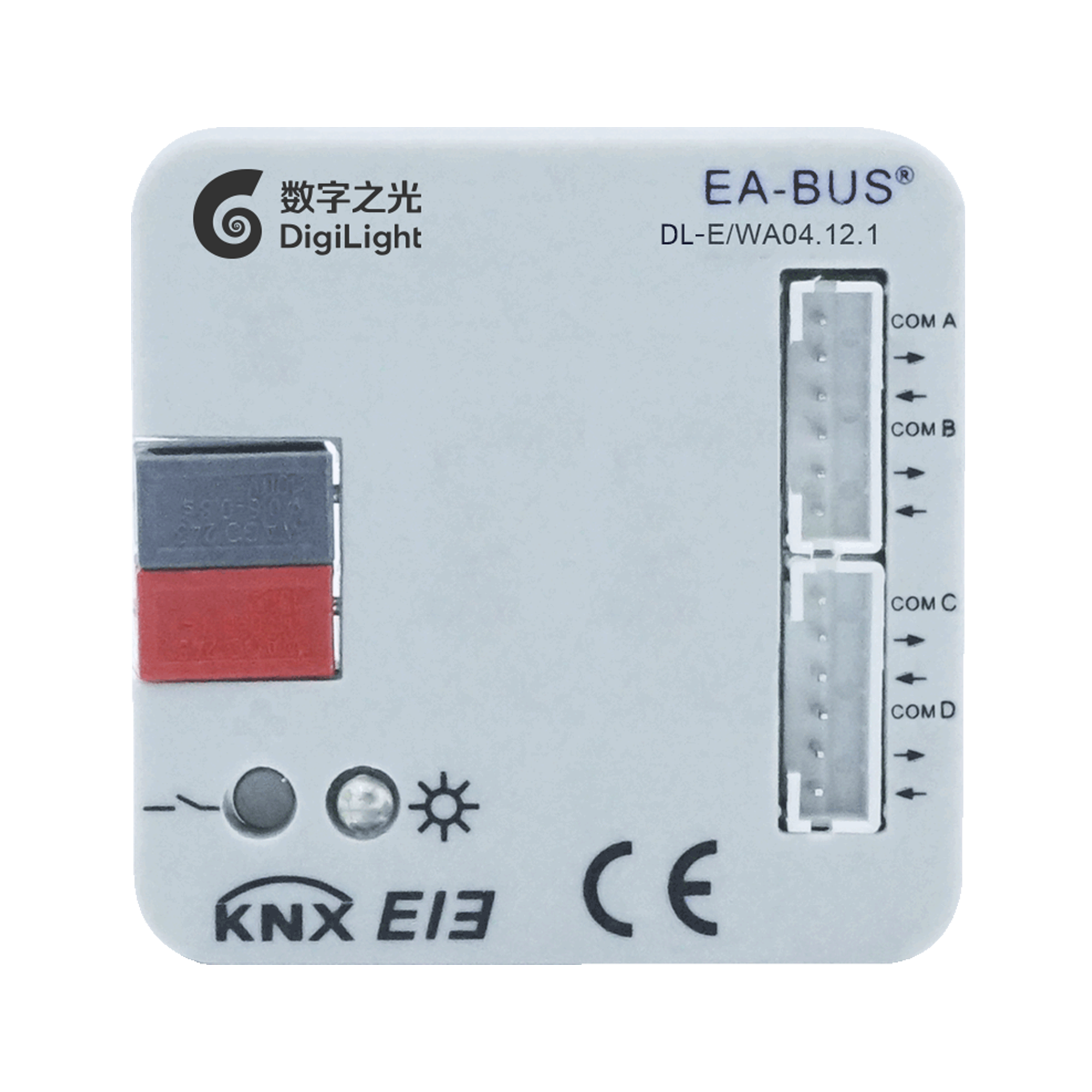

| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/WA04.12.1 | 43*43*11mm(L*W*H) | — | Flush-mounted box | — |
Fan Coil Unit (FCU) Actuator
Product Features
- System Compatibility
- Compatible with 2-pipe and 4-pipe HVAC systems
- Control Outputs
- Supports switching control and PWM control outputs
- Fan Speed Control
- 3-speed fan control supported
- Status Feedback
- Provides fan speed and valve position status feedback
- Power Management
- Retains settings during power loss and restores state after power recovery
Product Parameters
Power Supply
Bus Voltage: DC 21V ~ 30V, supplied via bus
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Main Power Supply: AC 230V ±10%, 50/60 Hz
Indication & Operation
Programming Interface: 1 programming button
Load Output Specifications
Fan Control (1 channel): 3-speed control, AC 230V, 50/60Hz, 6A
Valve Control (1 channel): 6A
Note: When used as three independent switches, each channel ≤ 6A, total input current < 13A.
Temperature Range
Operation: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |

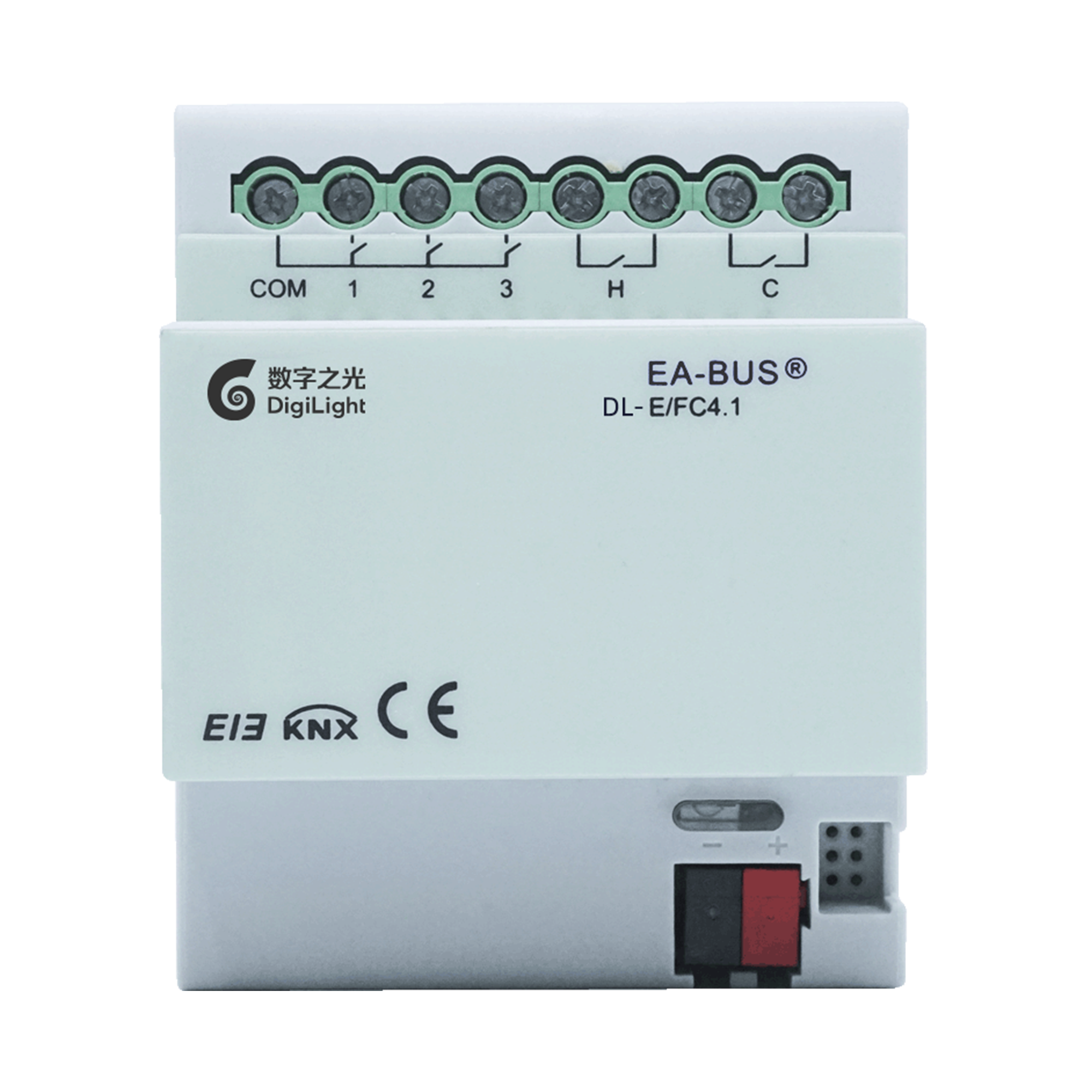

| DL-E/FC4.1 | 90*73*64mm(L*W*H) | 4 | Standard 35mm DIN Rail | — |
Electrical Energy Monitoring Device
Product Features
Electrical Measurement Capabilities
Supports 3-phase 4-wire voltage detection
12-channel current detection and 4-channel voltage detection
Communication & Input Interfaces
1x RS-485 interface
4x dry contact inputs
Power Monitoring Functions
Electrical energy measurement
Active power and power factor measurement
Product Parameters
Power Supply
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power: External DC 9V ~ 40V
Power Consumption: < 2 W
Operation & Indication
Red LED and button for physical address assignment
Flashing green LED indicates normal device operation
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |

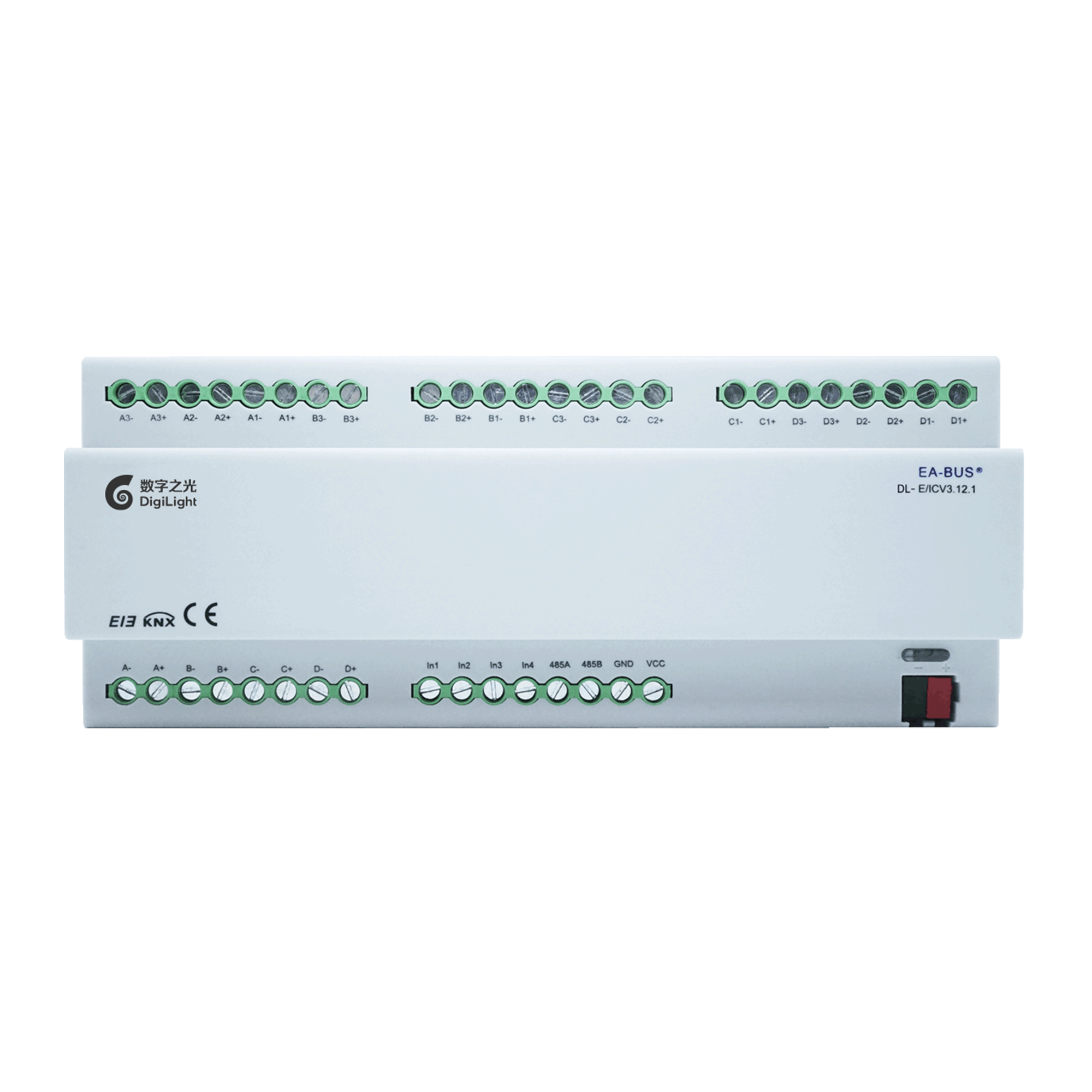

| DL-E/ICV3.12.1 | 90*219*64mm(L*W*H) | 12 | Standard 35mm DIN Rail | With 1 RS485 interface and 4 dry contact inputs |
Support
© 2025 DigiLight Intelligent Technology Group Limited. All rights reserved. Web ICP backup 2022030759 No.
