All Metal Series
QuickConnect Conduit
Double female end A+A
Product description
The protection pipe is made of flexible metal conduit, covered with insulating powder layer, the combustion performance of the product reaches class A, and the built-in low-smoke halogen-free flame retardant wire can be widely used in high-end commercial, hotel, hospital, factory and other places.

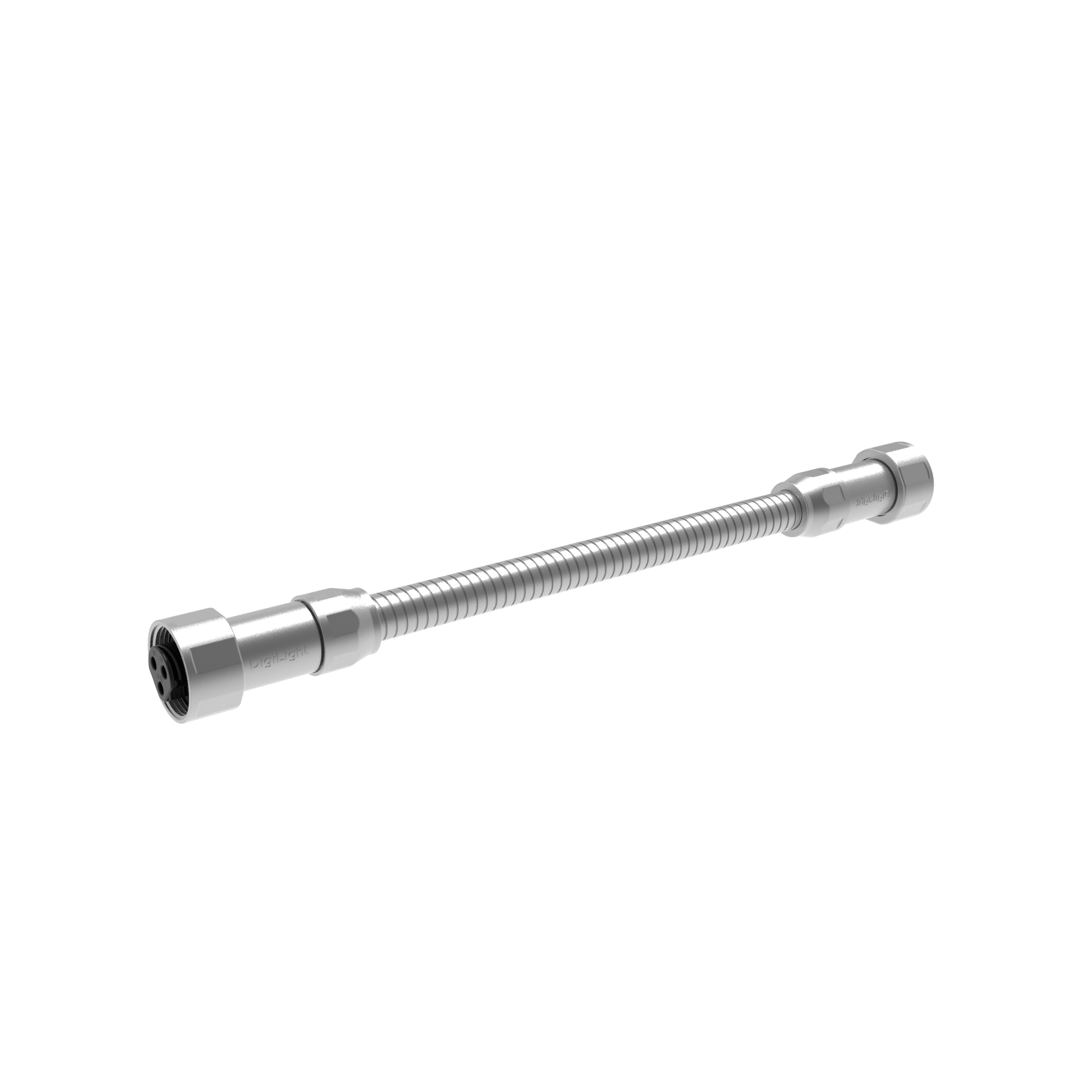

Product appearance

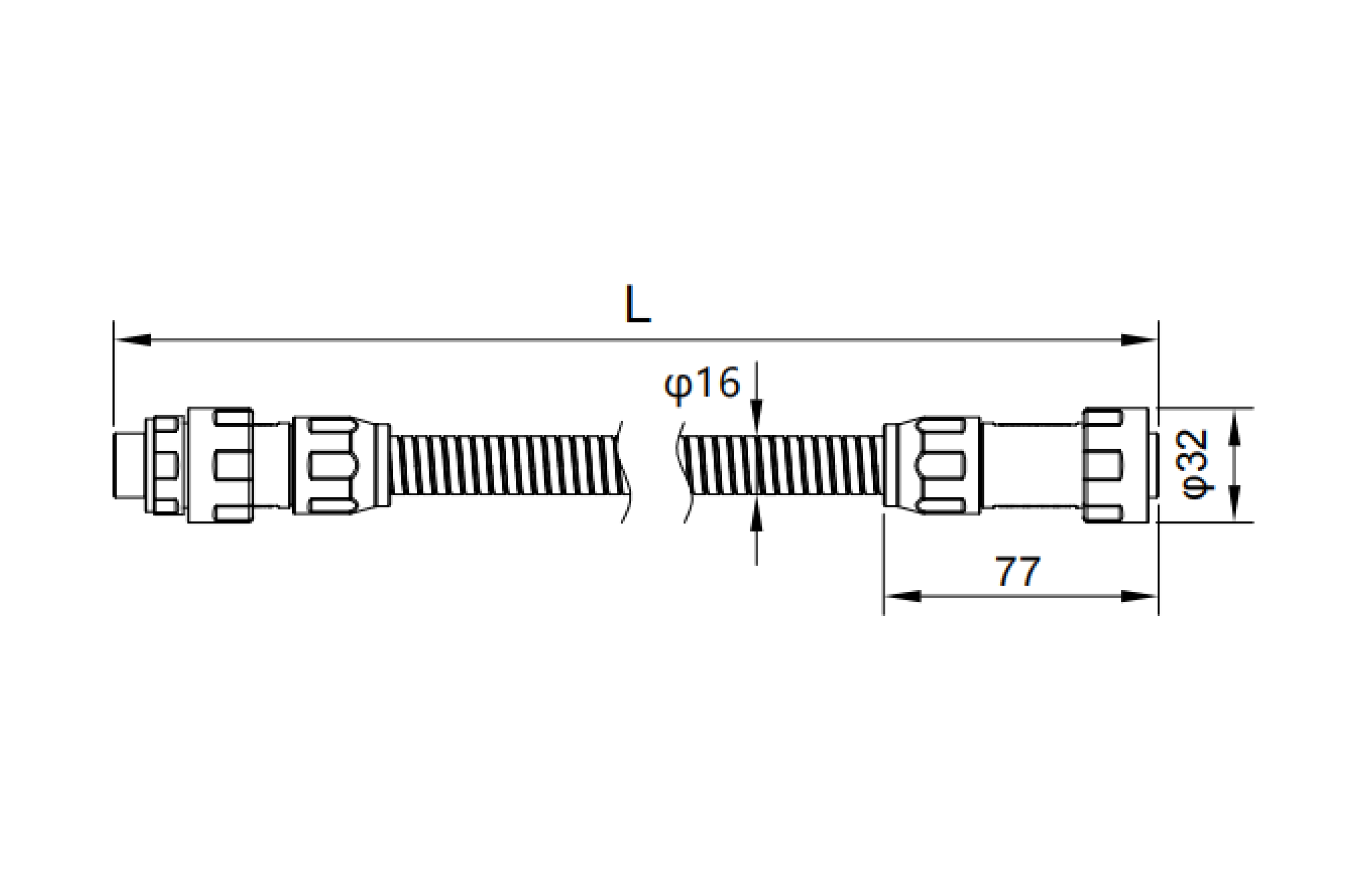

Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-KZGX340M | 16mm | 3×4.0mm² | 25A | 250VAC | -25~+65°C | IP20 |
| DL-KZGX325M | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP20 |
Single-end quick clip A+Y
Product description
The protection pipe is made of flexible metal conduit, covered with insulating powder layer, the combustion performance of the product reaches class A, and the built-in low-smoke halogen-free flame retardant wire can be widely used in high-end commercial, hotel, hospital, factory and other places.

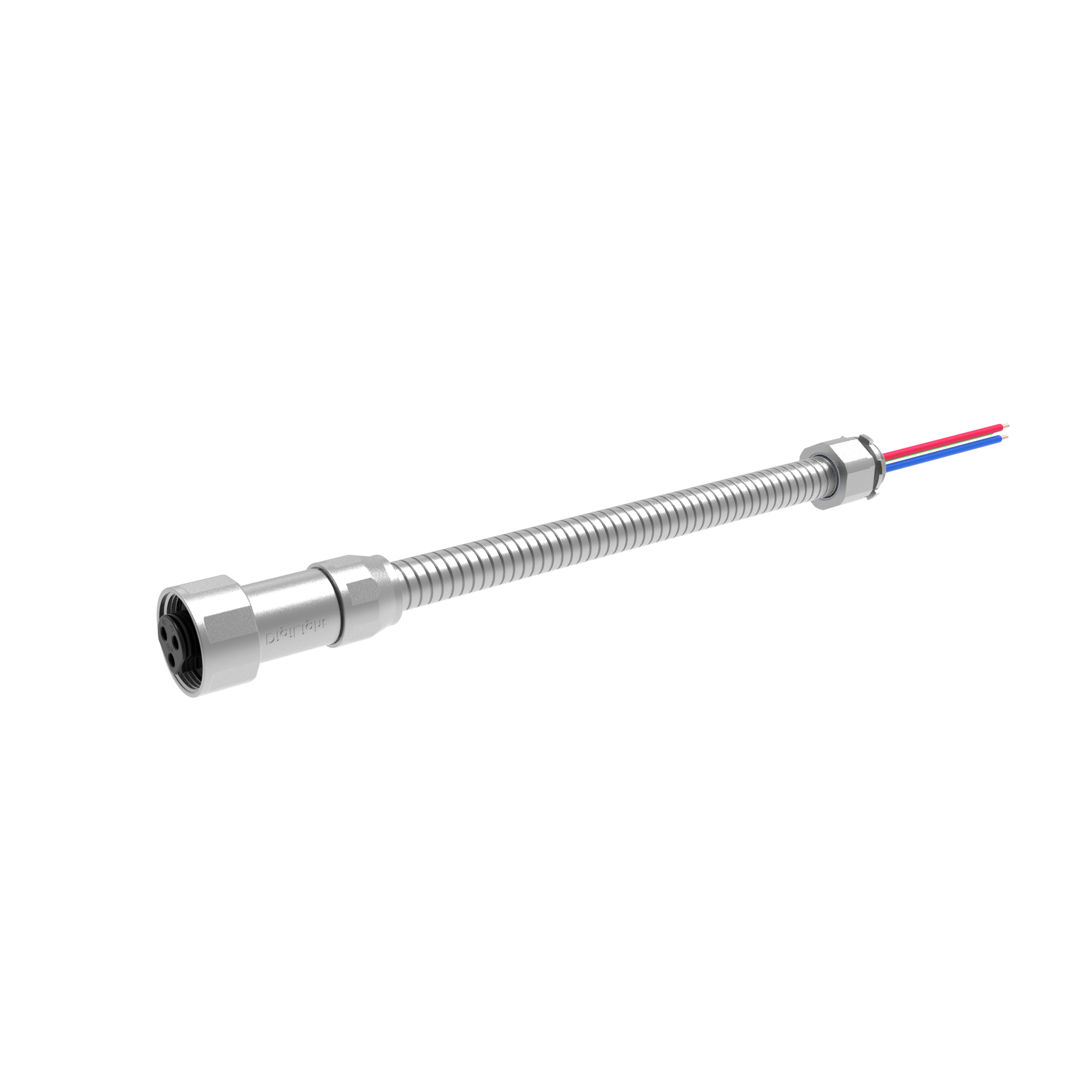

Product appearance

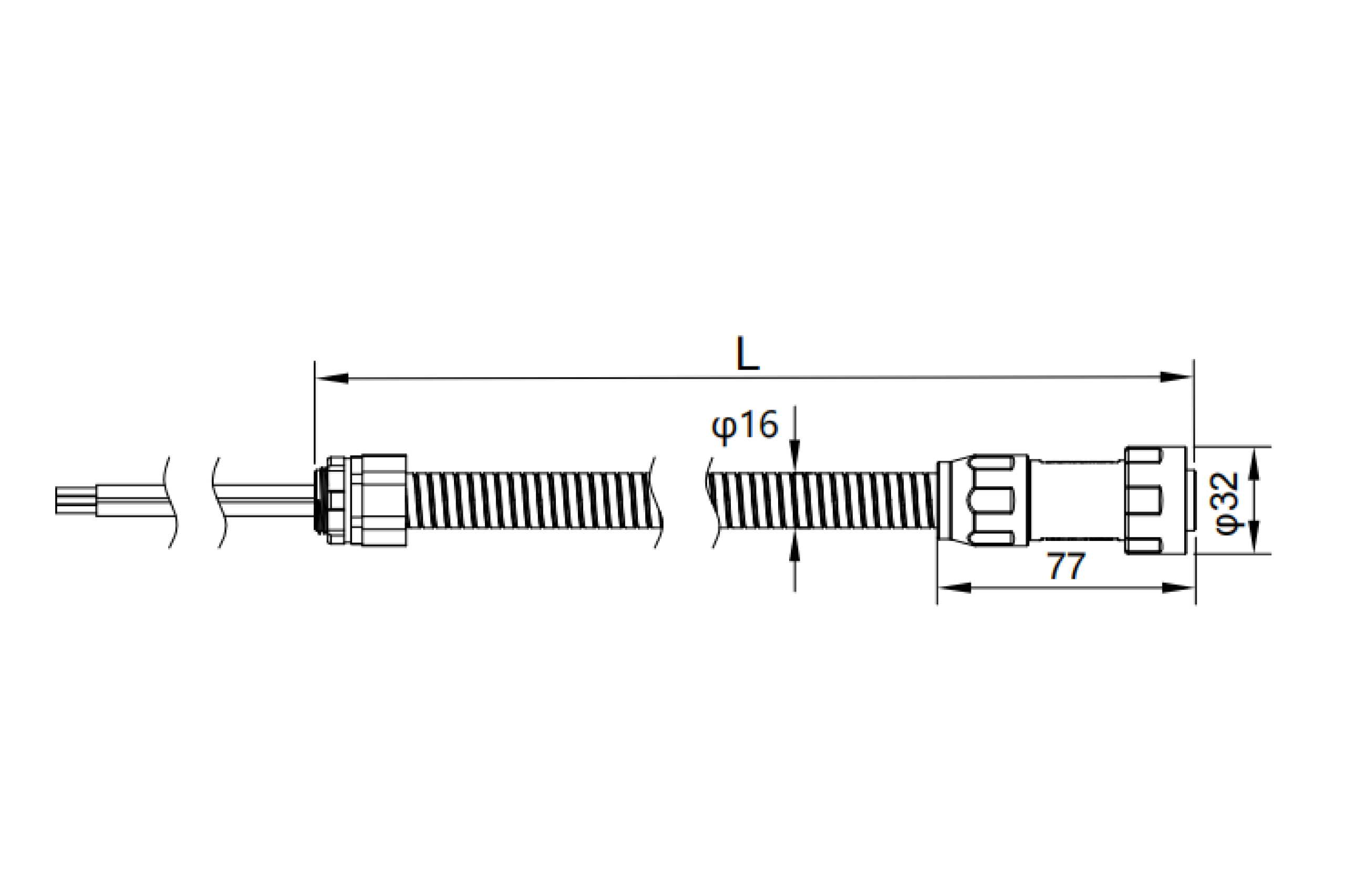

Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-KZGX340M | 16mm | 3×4.0mm² | 25A | 250VAC | -25~+65°C | IP20 |
| DL-KZGX325M | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP20 |
Double end quick lock Y+Y
Product description
The protection pipe is made of flexible metal conduit, covered with insulating powder layer, the combustion performance of the product reaches class A, and the built-in low-smoke halogen-free flame retardant wire can be widely used in high-end commercial, hotel, hospital, factory and other places. 1.5mm² can be customized built-in 1-5 lines, 2.5mm² can be customized built-in 1-4 lines, 4.0mm² can be customized built-in 2-3 lines.

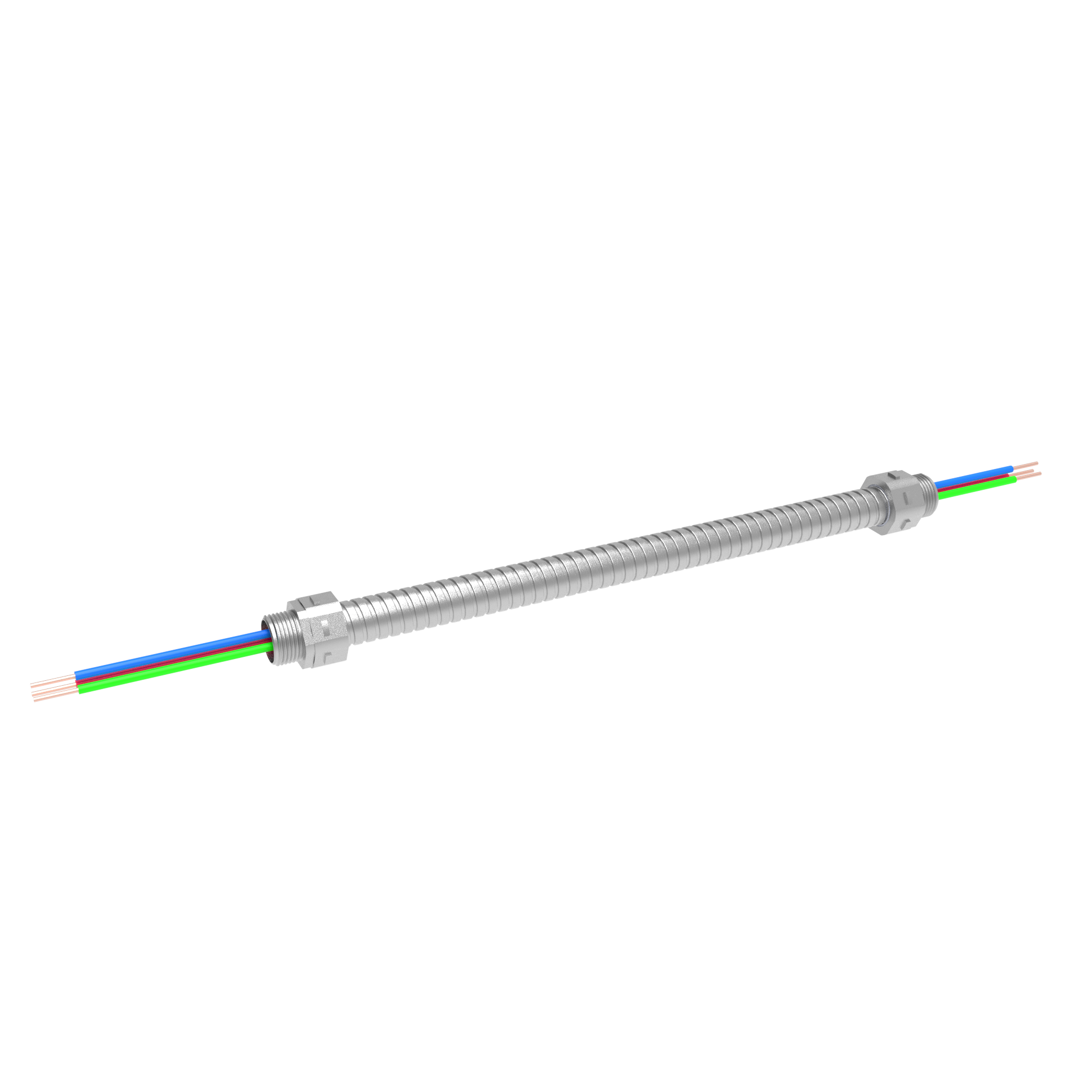

Product appearance

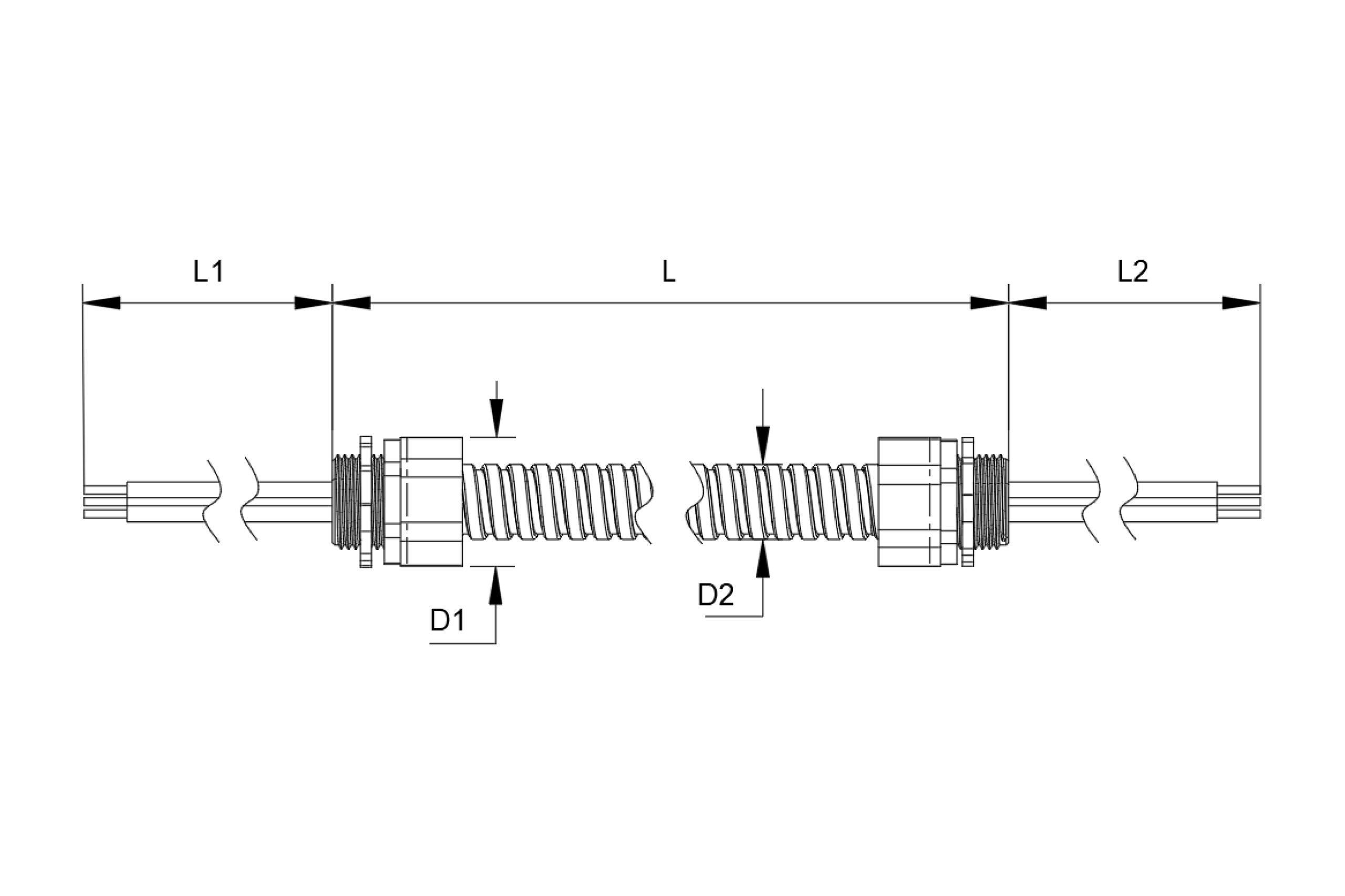

Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-KZGX340M | 16mm | 3×4.0mm² | 25A | 250VAC | -25~+65°C | IP20 |
| DL-KZGX325M | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP20 |
Tee splitter
Product description
The shell of the product is made of die-cast zinc alloy, the combustion performance level reaches class A, and the internal selection of V0 flame retardant material is used for the connection accessories used in the branch of the conduit circuit.

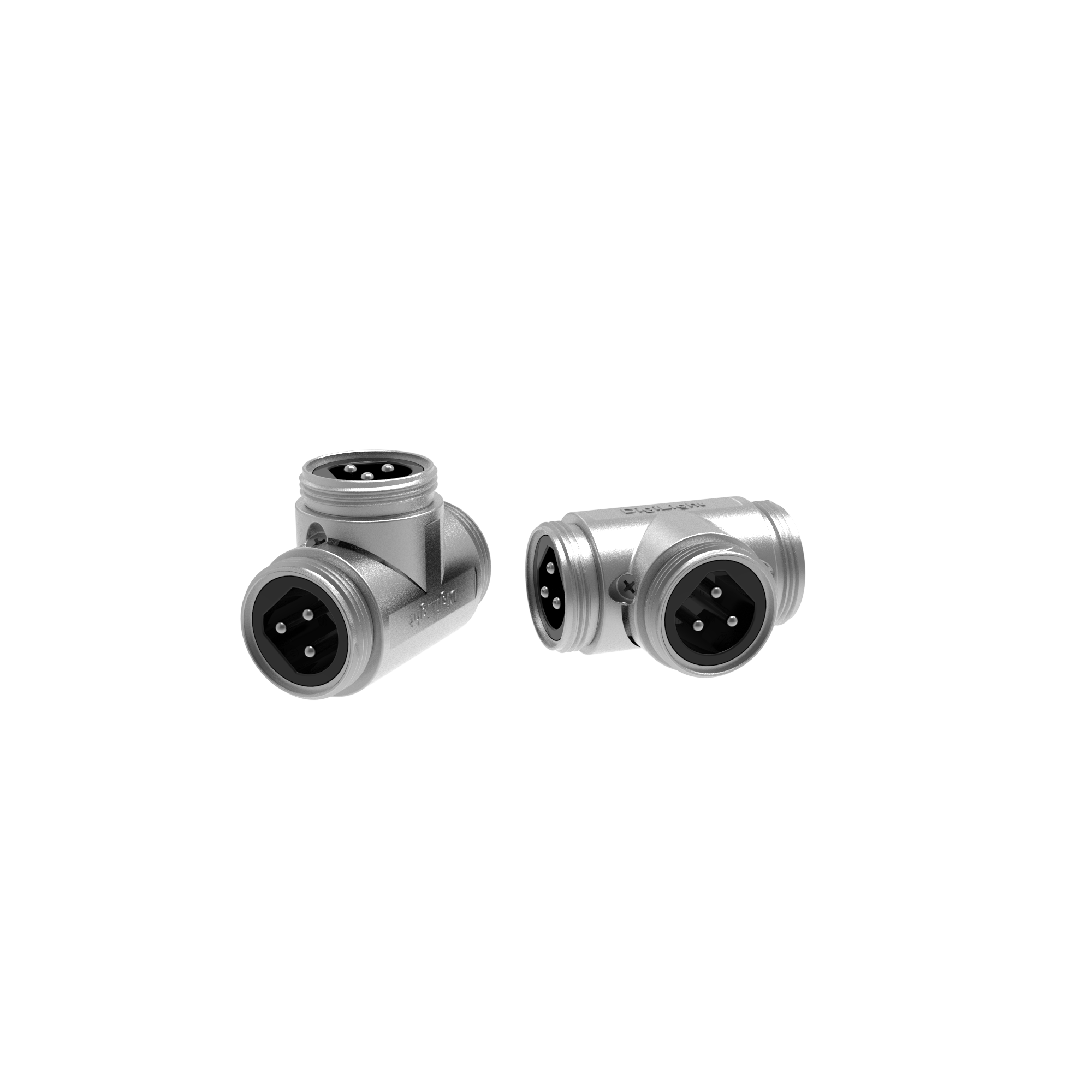

Product appearance

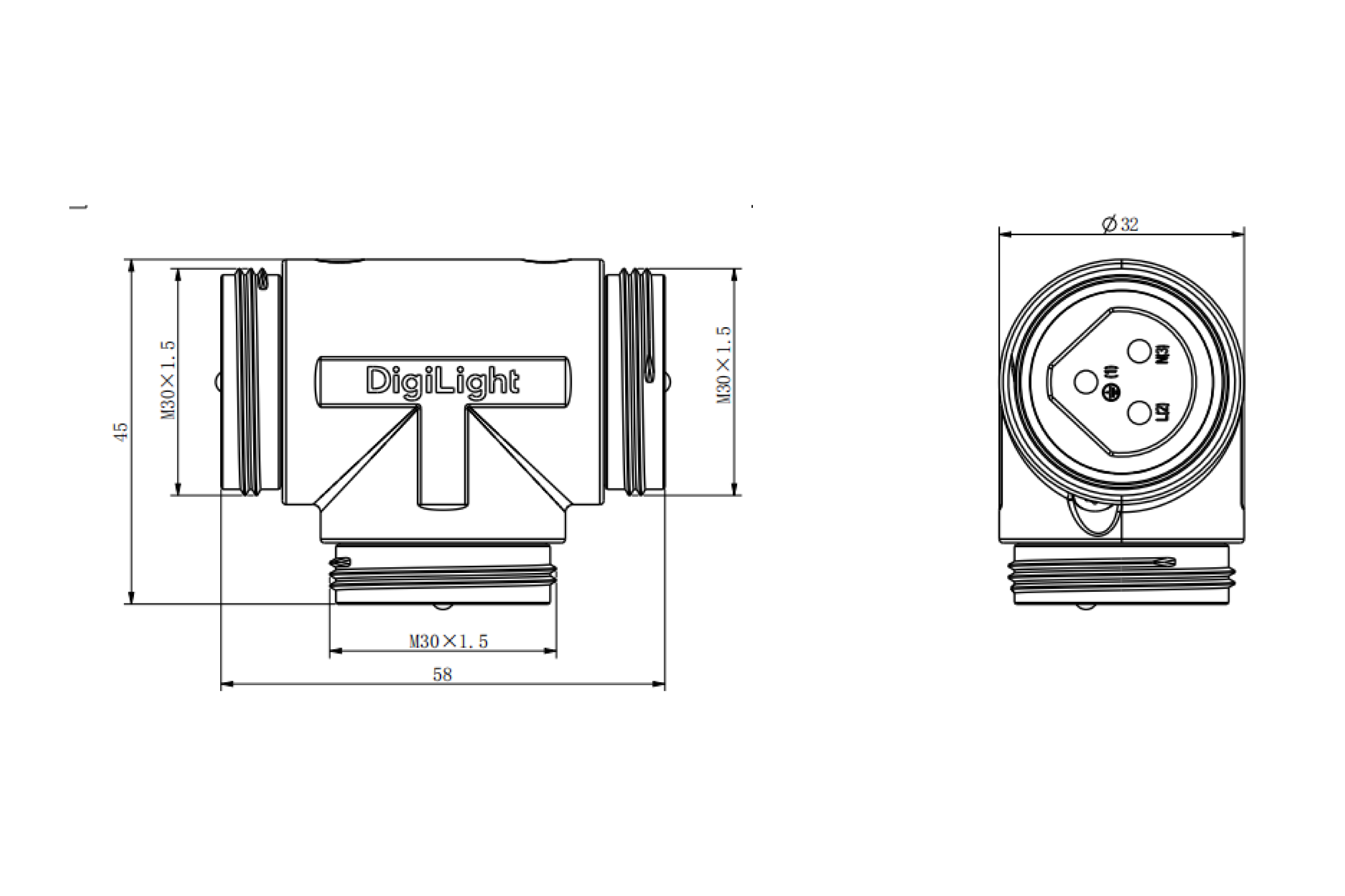

Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-FXQ-T-340M | 16mm | 3×4.0/3×2.5mm² | 25A | 250VAC | -25~+40°C | IP65 |
Straight splitter
Product description
The shell of the product is made of die-cast zinc alloy, the combustion performance level reaches class A, and the interior is made of V0 flame retardant material, which is a connection accessory for the extension of the fast loading conduit circuit.

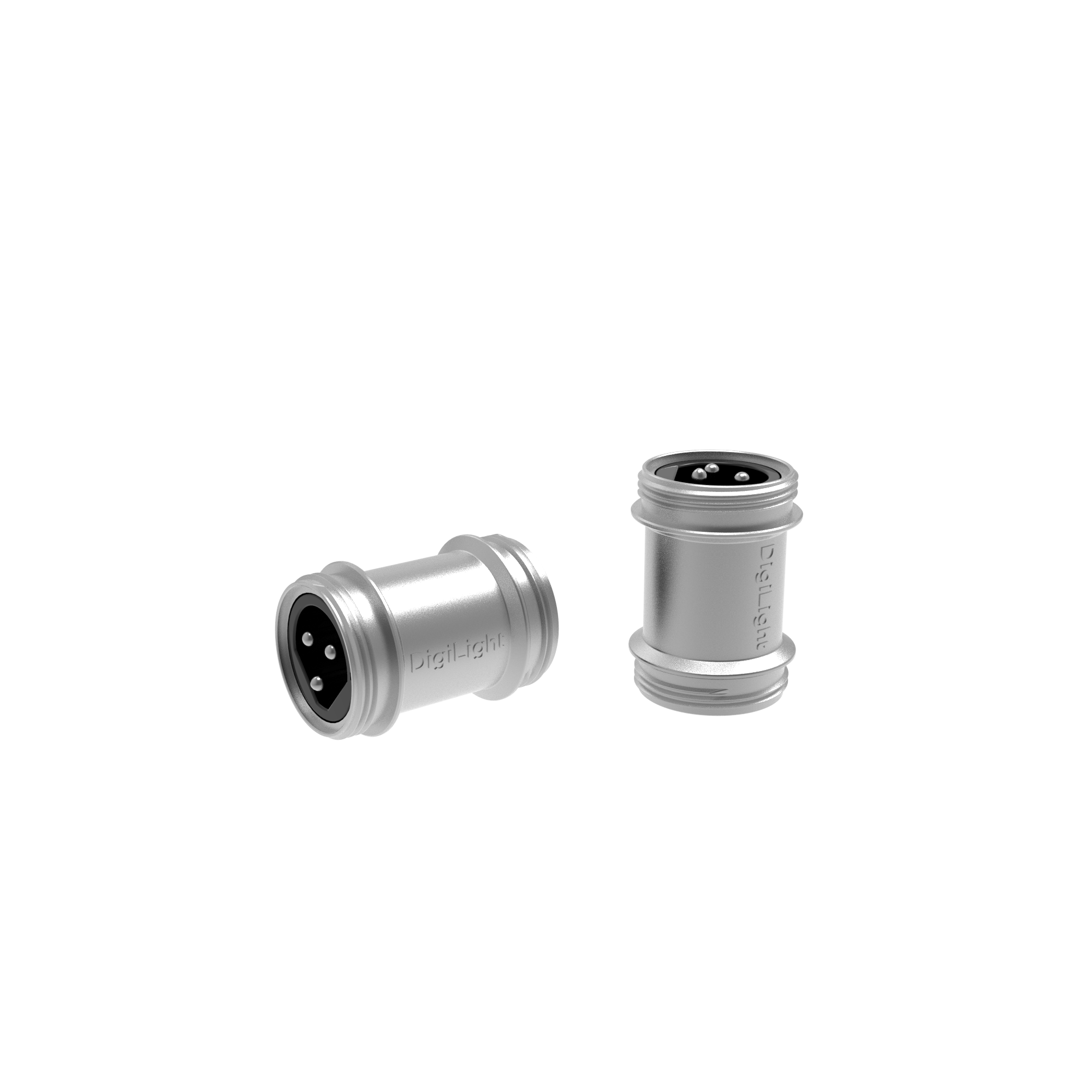

Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-FXQ-O-340M | 16mm | 3×4.0/3×2.5mm² | 25A | 250VAC | -25~+40°C | IP65 |
L connector
Product description
The shell of the product is made of die-cast zinc alloy, the combustion performance level reaches class A, and the interior is made of V0 flame retardant material, which is a connection accessory for the right-angle connection of the quick assembly conduit circuit.

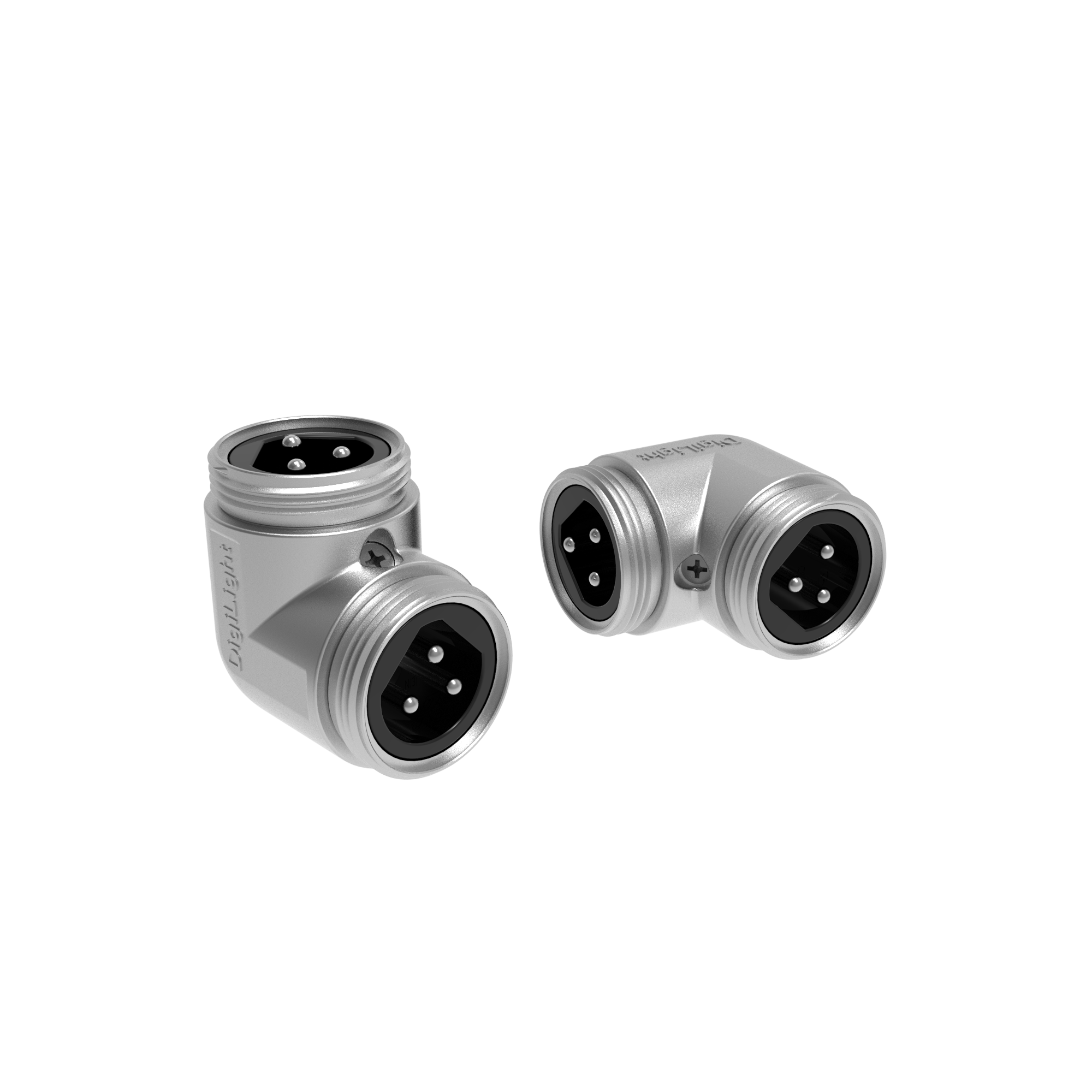

Product appearance

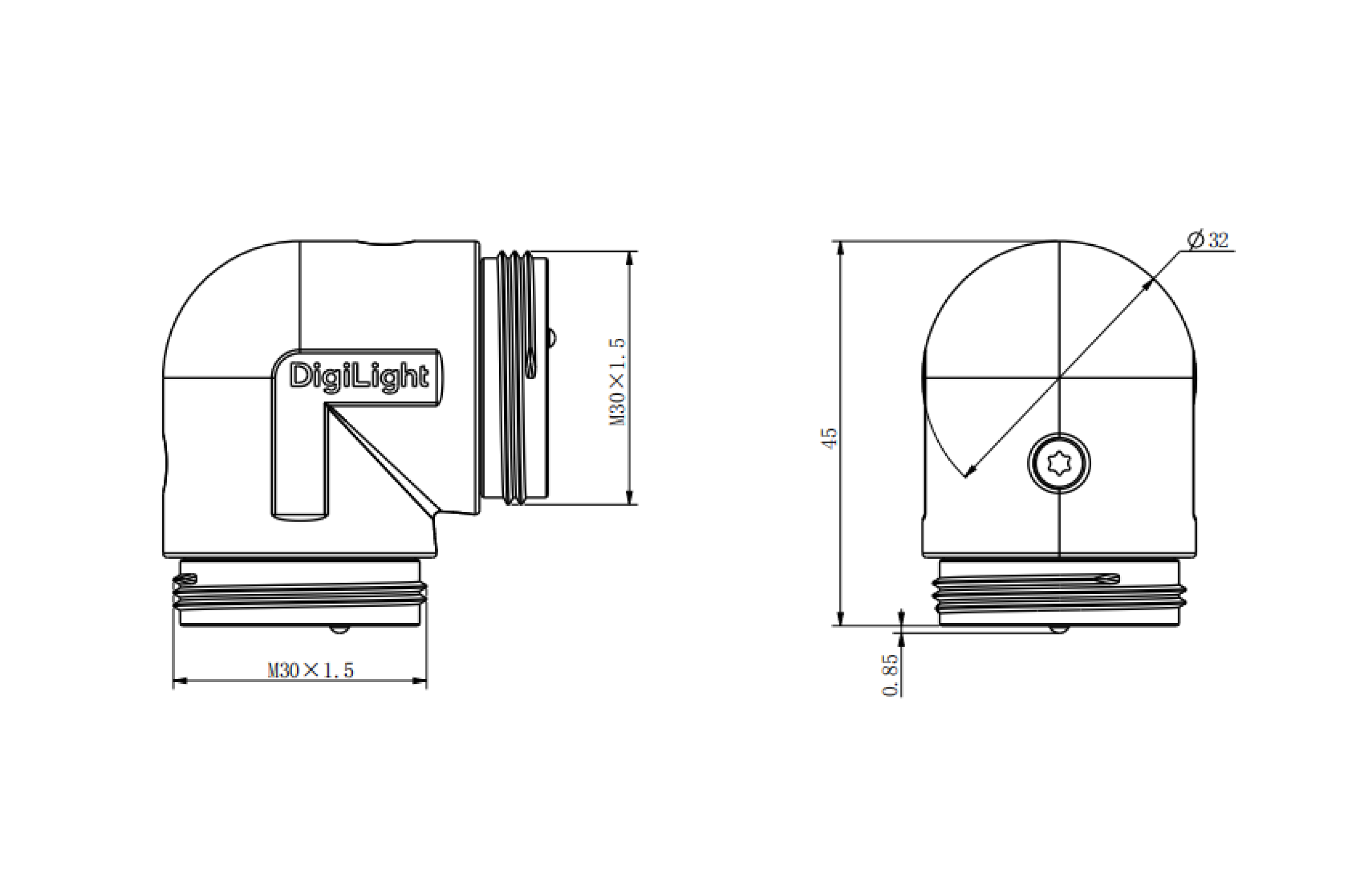

Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-FXQ-L-340M | 16mm | 3×4.0/3×2.5mm² | 25A | 250VAC | -25~+40°C | IP65 |
End connector
Product description
The shell of the product is made of die-cast zinc alloy, the combustion performance level reaches class A, and the interior is made of V0 flame retardant material, which is used for the accessories of components in the distribution box and the connection of zero and ground.

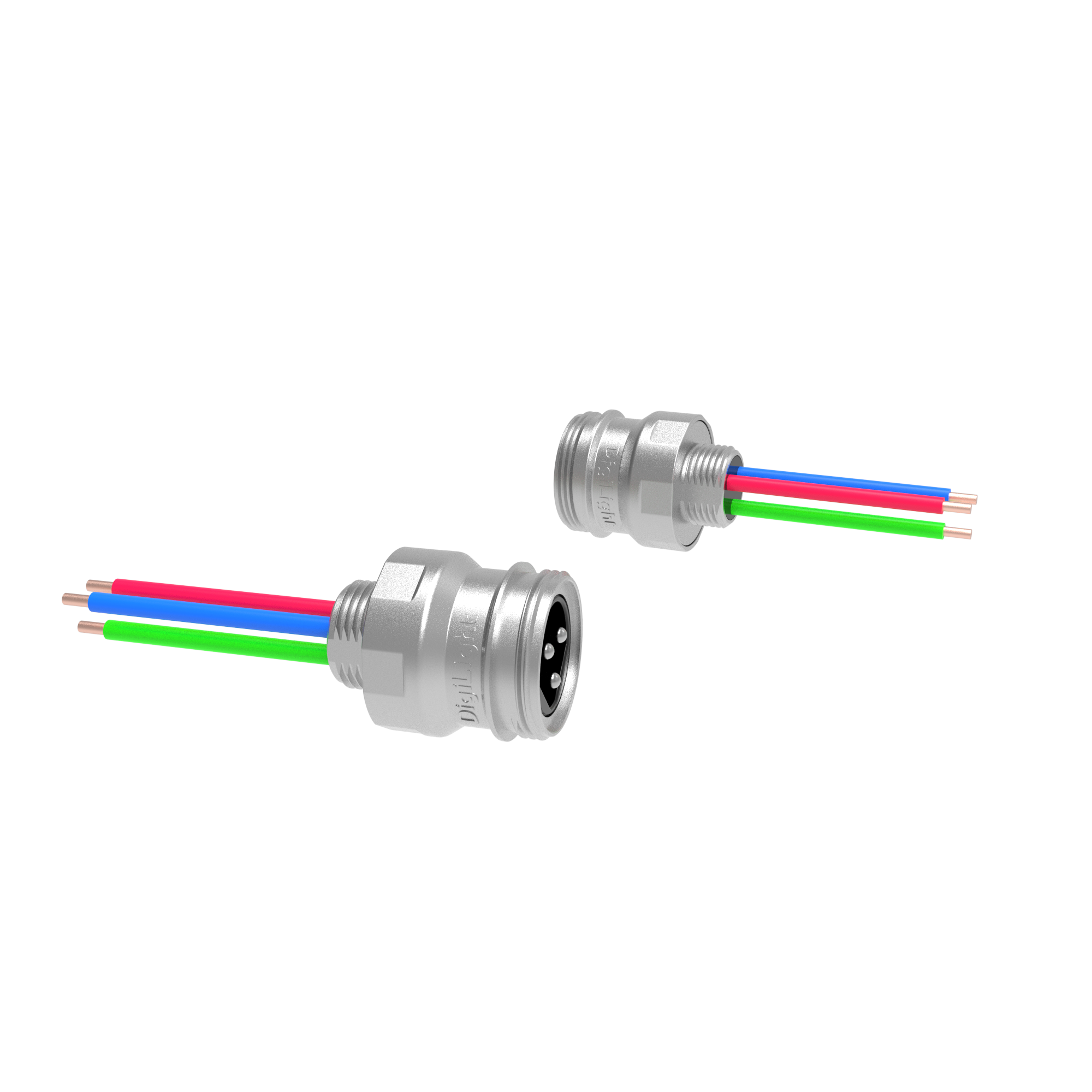

Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-LJQ-340M | 16mm | 3×4.0mm² | 25A | 250VAC | -25~+40°C | IP65 |
| DL-LJQ-325M | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+40°C | IP65 |
