1-Channel KNX DALI Gateway
Product Features
- Each output channel can independently control up to 64 DALI slave devices
- Switch on/off function
- Relative/absolute dimming function
- 16 scene functions
- Broadcast control of DALI slaves
- DALI devices on the channel can be grouped into
- 16 groups for control
- DALI device status detection
- Operating status, error reporting, and brightness value feedback
- Supports DT8 color temperature dimming and RGBW control functions
- Supports USB/DALI control functions and DALI slave address assignment
Product Parameters
Bus Voltage: DC 21V ~ 30V, supplied via bus
Bus Current: < 12mA
Bus Power Consumption: < 360mW
Auxiliary Power Supply: AC 100V ~ 240V, 47 ~ 63Hz
Temperature Range:
Operating: -5℃ ~ +45°C
Storage: -25℃ ~ +55°C
Transport: -25℃ ~ +70°C

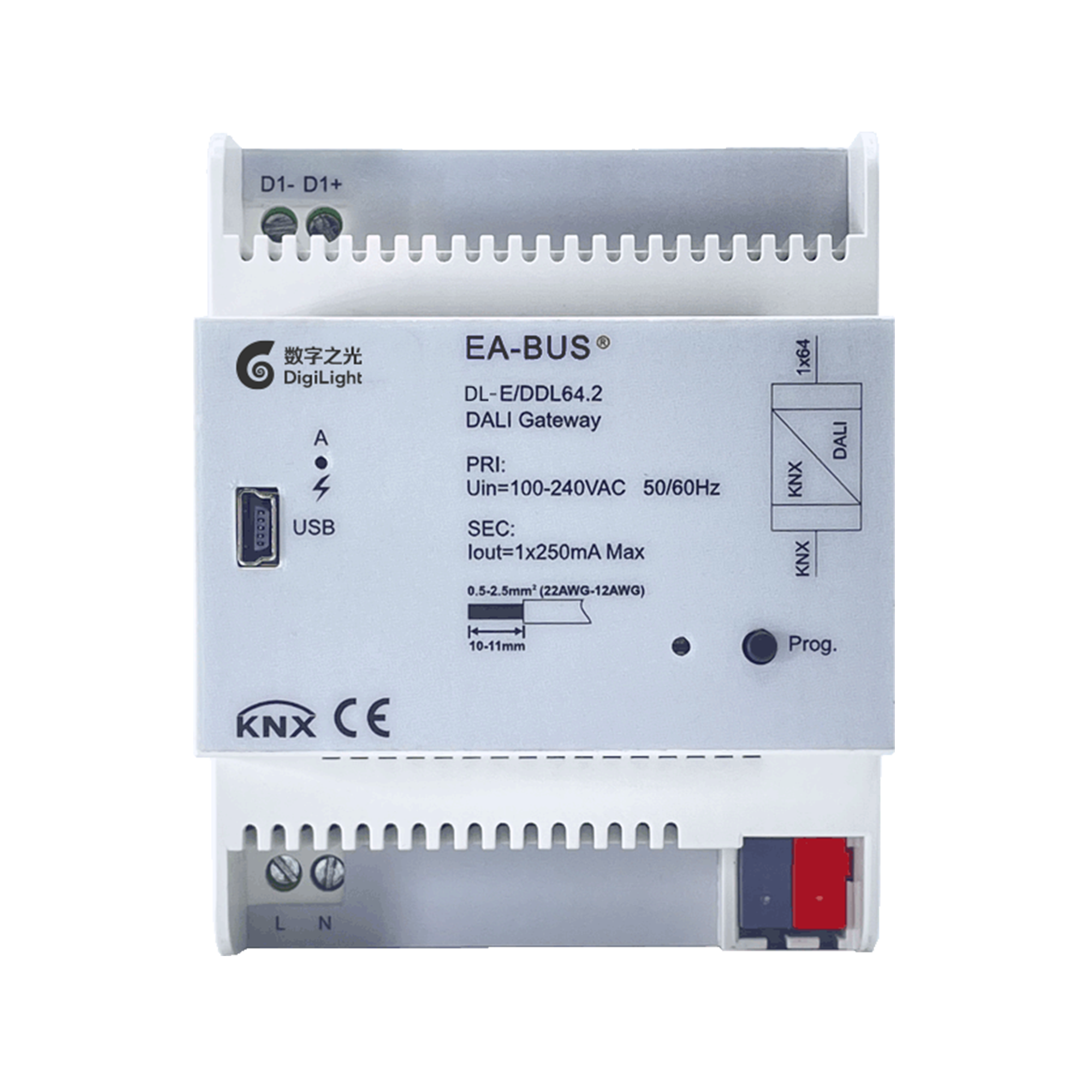

Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/DDL64.1 | 90*73*64mm(L*W*H) | 4 | Standard 35mm DIN Rail | — |
2-Channel KNX DALI Gateway
Product Features
- Each output channel can independently control up to 64 DALI slave devices
- Switch on/off function
- Relative/absolute dimming function
- 16 scene functions
- Broadcast control of DALI slaves
- DALI devices on the channel can be grouped into
- 16 groups for control
- DALI device status detection
- Operating status, error reporting, and brightness value feedback
- Supports DT8 color temperature dimming and RGBW control functions
- Supports USB/DALI control functions and DALI slave address assignment
Product Parameters
Bus Voltage: DC 21V ~ 30V, supplied via bus
Bus Current: < 12mA
Bus Power Consumption: < 360mW
Auxiliary Power Supply: AC 100V ~ 240V, 47 ~ 63Hz
Temperature Range:
Operating: -5℃ ~ +45°C
Storage: -25℃ ~ +55°C
Transport: -25℃ ~ +70°C

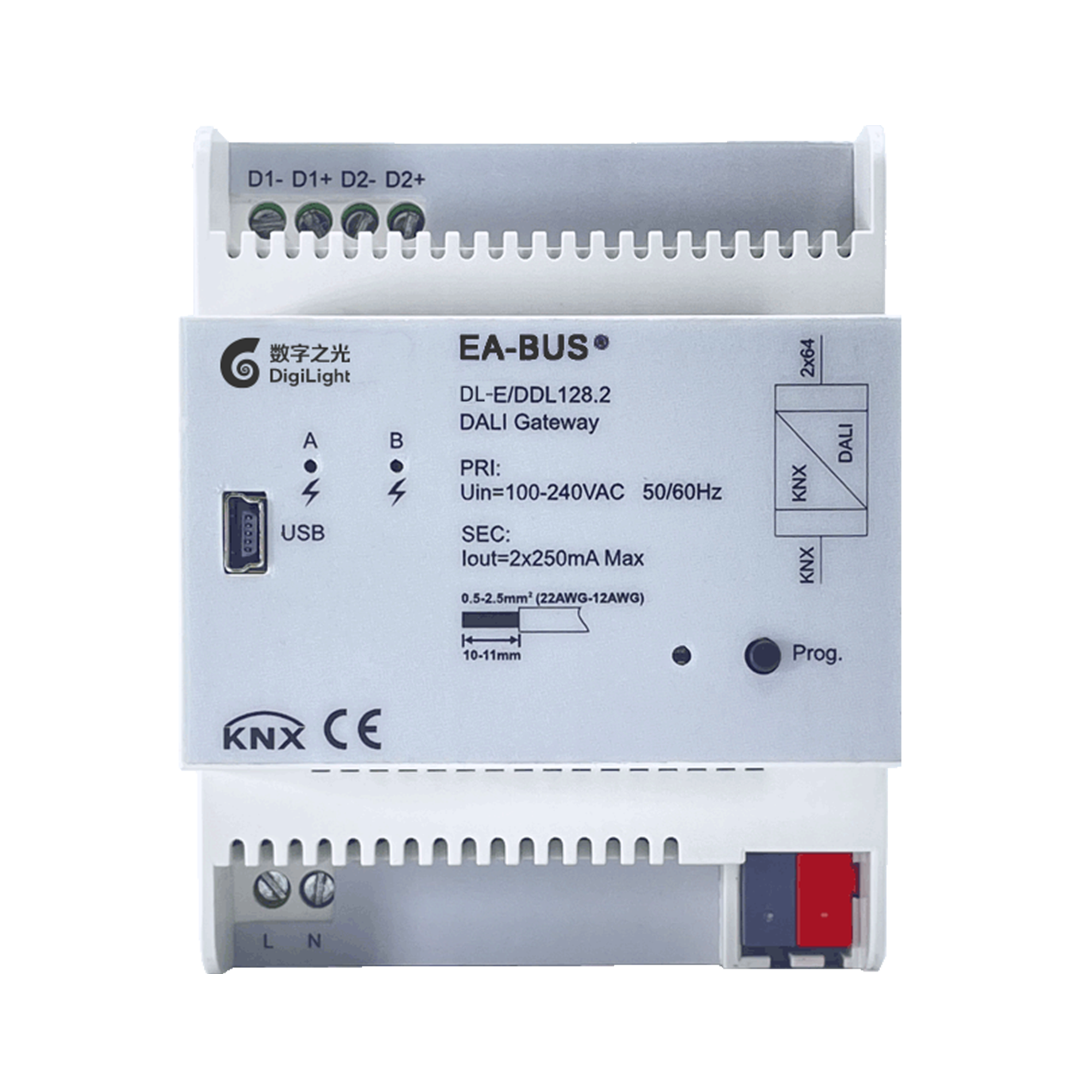

Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/DDL128.1 | 90*73*64mm(L*W*H) | 4 | Standard 35mm DIN Rail | — |
KNX 485 Gateway
Product Features
- KNX/EIB to 485/Modbus Serial Conversion Device
- Standards Compliance: This device fully complies with both the KNX standard and the Modbus Serial Slave standard.
- Supported Functions: Read and write operations for single/multiple coils are supported.
- Communication Configuration: Supports configuration of multiple communication parameters.
Product Parameters
Bus Voltage: DC 21V ~ 30V, supplied via bus
Bus Current: < 12mA
Bus Power Consumption: < 360mW
Temperature Range:
Operating: -5℃ ~ +45°C
Storage: -25℃ ~ +55°C
Transport: -25℃ ~ +70°C

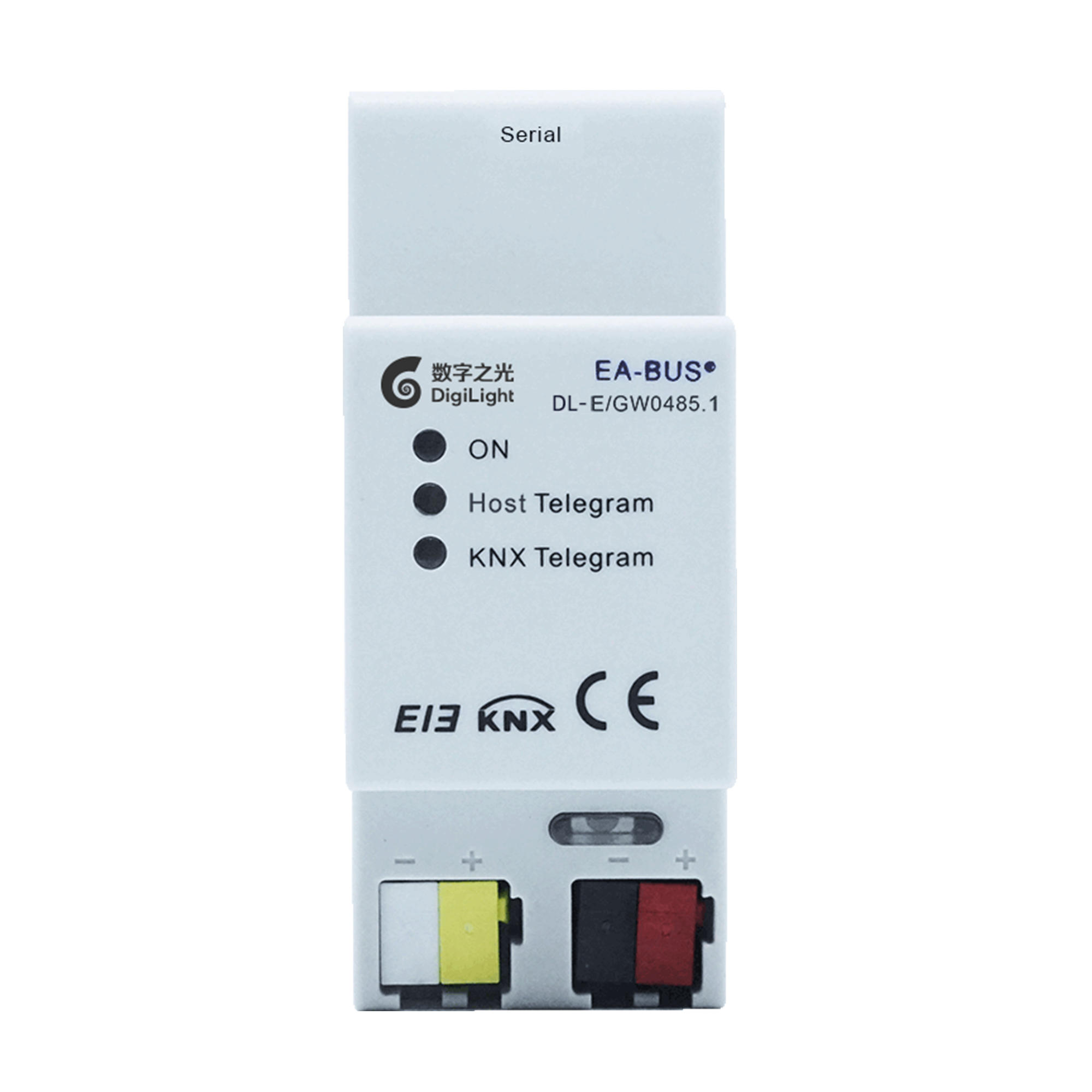

Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/GW0485.1 | 90*37*64mm(L*W*H) | 2 | Standard 35mm DIN Rail | — |
MODBUS Gateway
Product Features
- KNX/EIB to 485/Modbus Serial Conversion Device
- Standards Compliance: This device fully complies with both the KNX standard and the Modbus Serial Slave standard.
- Supported Functions: Read and write operations for single/multiple coils are supported.
- Communication Configuration: Supports configuration of multiple communication parameters.
Product Parameters
Bus Voltage: DC 21V ~ 30V, supplied via bus
Bus Current: < 12mA
Bus Power Consumption: < 360mW
Temperature Range:
Operating: -5℃ ~ +45°C
Storage: -25℃ ~ +55°C
Transport: -25℃ ~ +70°C

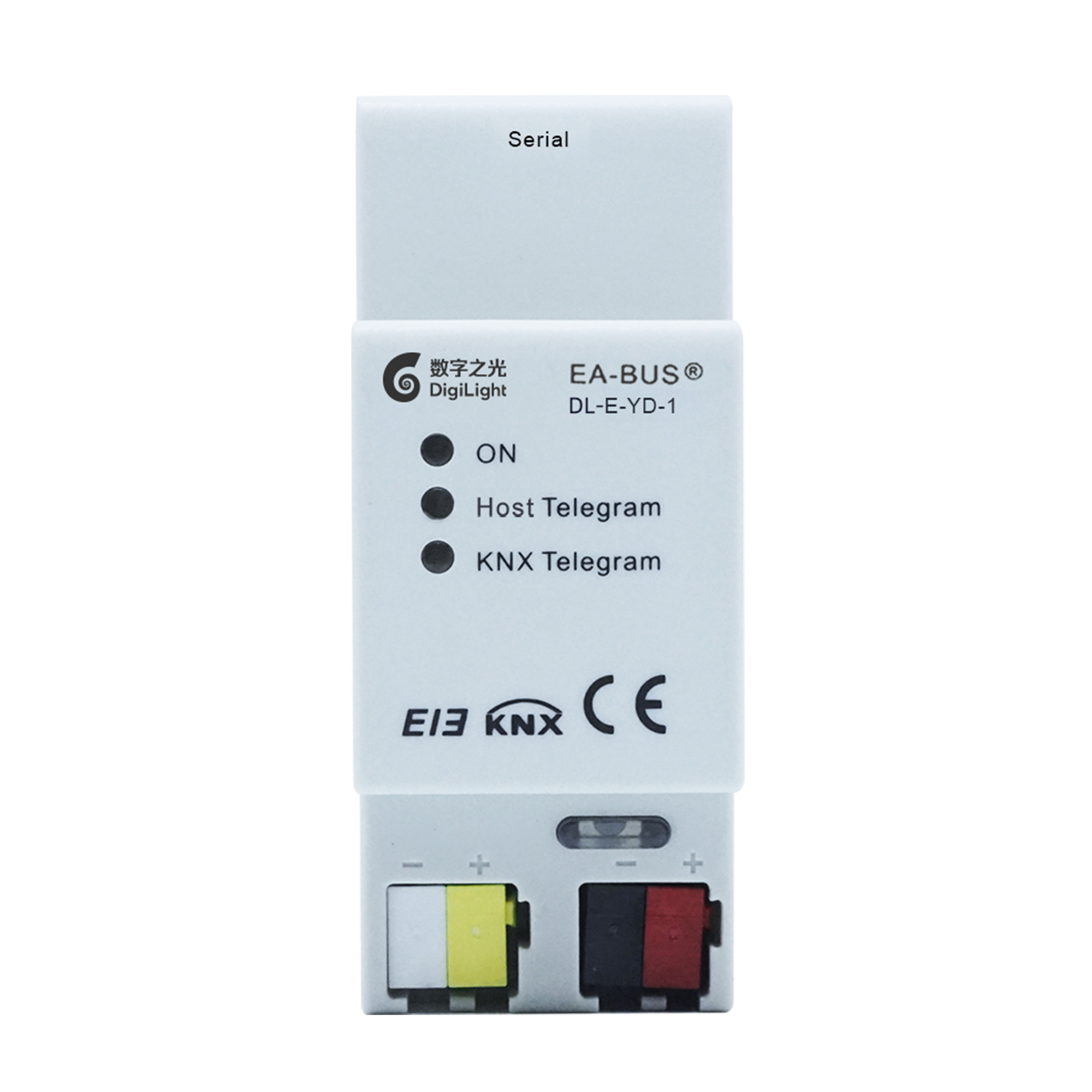

Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E-YD-1 | 90*37*64mm(L*W*H) | 2 | Standard 35mm DIN Rail | — |
KNX 232 Gateway
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/GW0232.1 | 90*37*64mm(L*W*H) | 2 | Standard 35mm DIN Rail | — |
Cloud Platform Gateway
Product Features
- Connection Method: Utilizes 4G network access; compatible with telecom, mobile, and unicom networks
- Time Service: Employs GPS module to provide high-precision time service
- Protocol: Provides standard KNX bus protocol
- Monitoring: Real-time data monitoring and fault feedback
- User Support: Supports on-site real-time monitoring by users
- Remote Control: Supports remote real-time control
- System Diagnostics: Supports system monitoring and fault feedback
- Security: Provides secure cloud access authentication
- Control Modes: Supports multiple control methods including real-time control, scheduled control, and longitude/latitude control
- Access Management: Supports permission management
Product Parameters
Bus Voltage: DC 21V ~ 30V, supplied via bus
Bus Current: < 12mA
Bus Power Consumption: < 360mW
Auxiliary Power Supply: External DC 9V ~ 30V
Total Power Consumption: < 2W
Protection Rating: IP20
Temperature Range:
Operating: -5℃ ~ +45°C
Storage: -25℃ ~ +55°C
Transport: -25℃ ~ +70°C

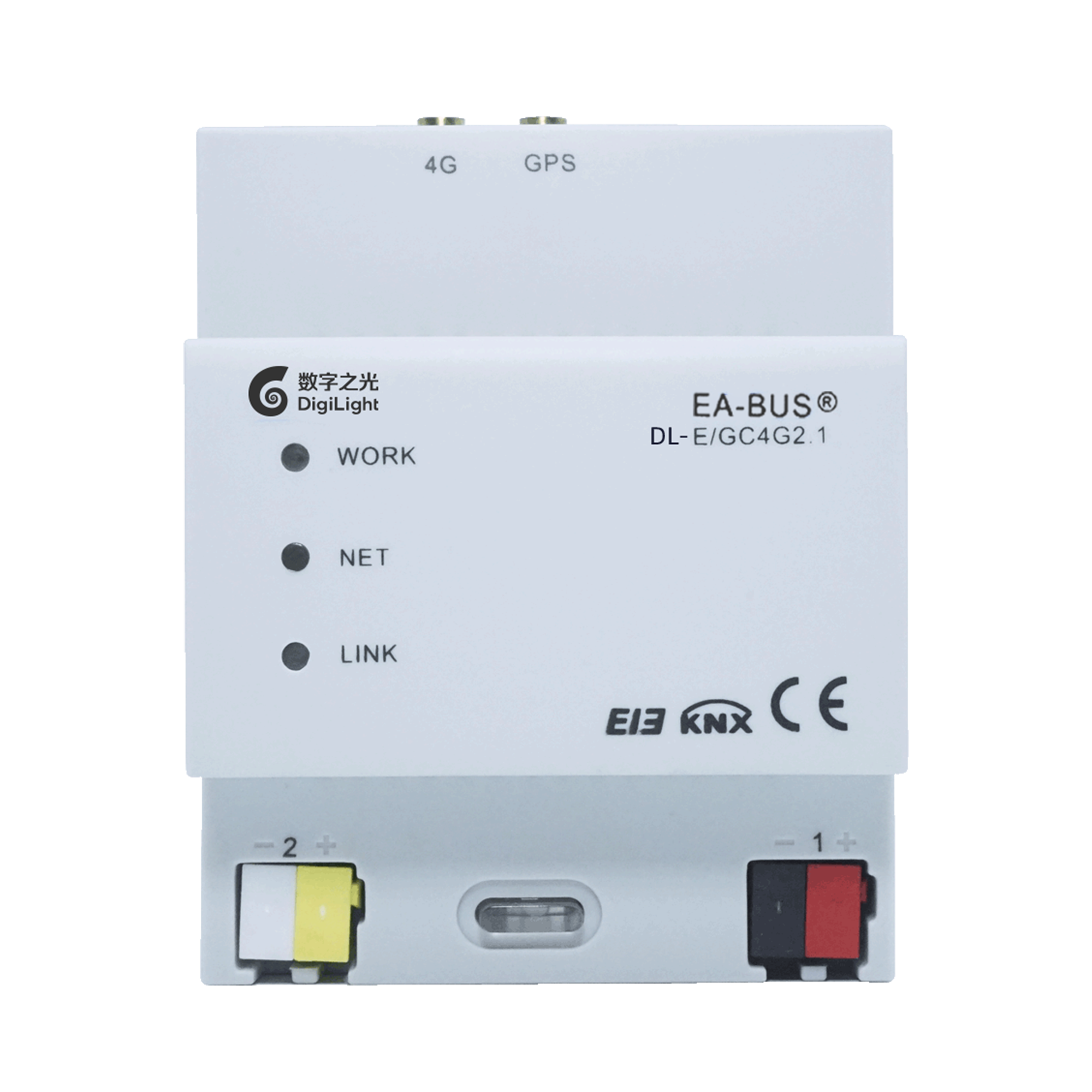

Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/GC4G2.1 | 90*73*64mm(L*W*H) | 4 | Standard 35mm DIN Rail | — |
IoT Integrated Gateway
Product Features
- Supports IP network and server time synchronization
- Supports remote real-time control and local Bluetooth debugging
- Supports local scheduled tasks and filter table functionality
- Equipped with 1 RS485 interface and 2 dry contact inputs
Product Parameters
Bus Voltage: DC 21V ~ 30V, supplied via bus
Bus Current: < 12mA
Bus Power Consumption: < 360mW
Auxiliary Power Supply: AC 220V
Total Power Consumption: < 5W
Red LED and Programming Button: For assigning physical addresses
Green LED Flashing: Indicates normal device operation
EIB/KNX: Bus connection terminals (red/black)
Auxiliary: Bus connection terminals (yellow/white)
RJ45: Ethernet port
Protection Rating: IP20
Temperature Range:
Operating: -5℃ ~ +45°C
Storage: -25℃ ~ +55°C
Transport: -25℃ ~ +70°C

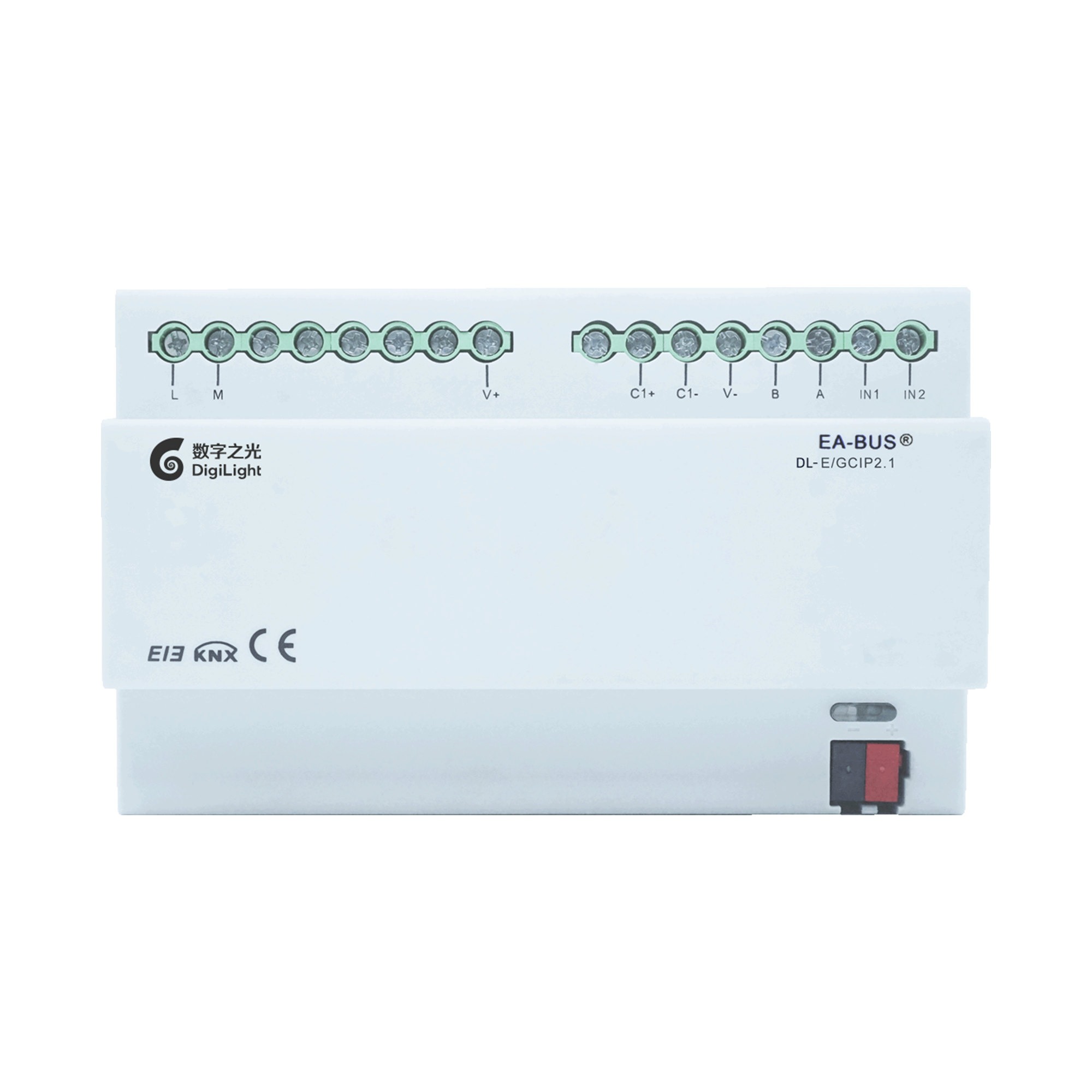

Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/GCIP2.1 | 90*146*64mm(L*W*H) | 8 | Standard 35mm DIN Rail | Equipped with 1 channel of RS485 interface and 2 channels of dry contact input. |
IoT Monitoring and Control Terminal
Product Features
- Supports IP network and server time synchronization
- Supports remote real-time control and local Bluetooth debugging
- Supports local scheduled tasks and filter table functionality
- Equipped with 1 RS485 interface and 2 dry contact inputs
Product Parameters
Bus Voltage: DC 21V ~ 30V, supplied via bus
Bus Current: < 12mA
Bus Power Consumption: < 360mW
Total Power Consumption: < 5W
Green LED Flashing: Indicates normal device operation
RJ45: Ethernet port
Protection Rating: IP20
Temperature Range:
Operating: -5℃ ~ +45°C
Storage: -25℃ ~ +55°C
Transport: -25℃ ~ +70°C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/IMCU0201.1 | 90*146*64mm(L*W*H) | 8 | Standard 35mm DIN Rail | With 1 channel of 20A relay output, 1 channel of 0-10V output, 1 channel of voltage detection, 1 channel of current detection, 1 channel of RS485 interface, and 2 channels of dry contact input. |
