Cuttable Series (including connector)
QuickConnect Conduit
Conduit cutting tool
Product description
1. The product comes with lithium-ion or plug-in cutting machine, operating device, safety protection device and fixed base, etc., the total weight is less than 5kg;
2. Fast cutting and ring cutting, easy to carry and move.
Product characteristics
Application: The product is mainly used for cutting and circumferential cutting of cutting conduits (cutting off the tail conduit and protecting the internal wire) to improve the safety and efficiency of the cutting process on the construction site.
Product appearance
Product size
Wire connector
Product description
Quick V connector: used to connect the cutting conduit (diameter 3×2.5/4.0), through the built-in quick connecting terminal connected to the power supply or socket wire, and fixed by fasteners, the other end of the integrated injection molding V-shaped standard connector can be connected to the round head three-way splitter or through the splitter. The products can be widely used in old renovation, home improvement, hotel and other places with some pre-buried scenes.

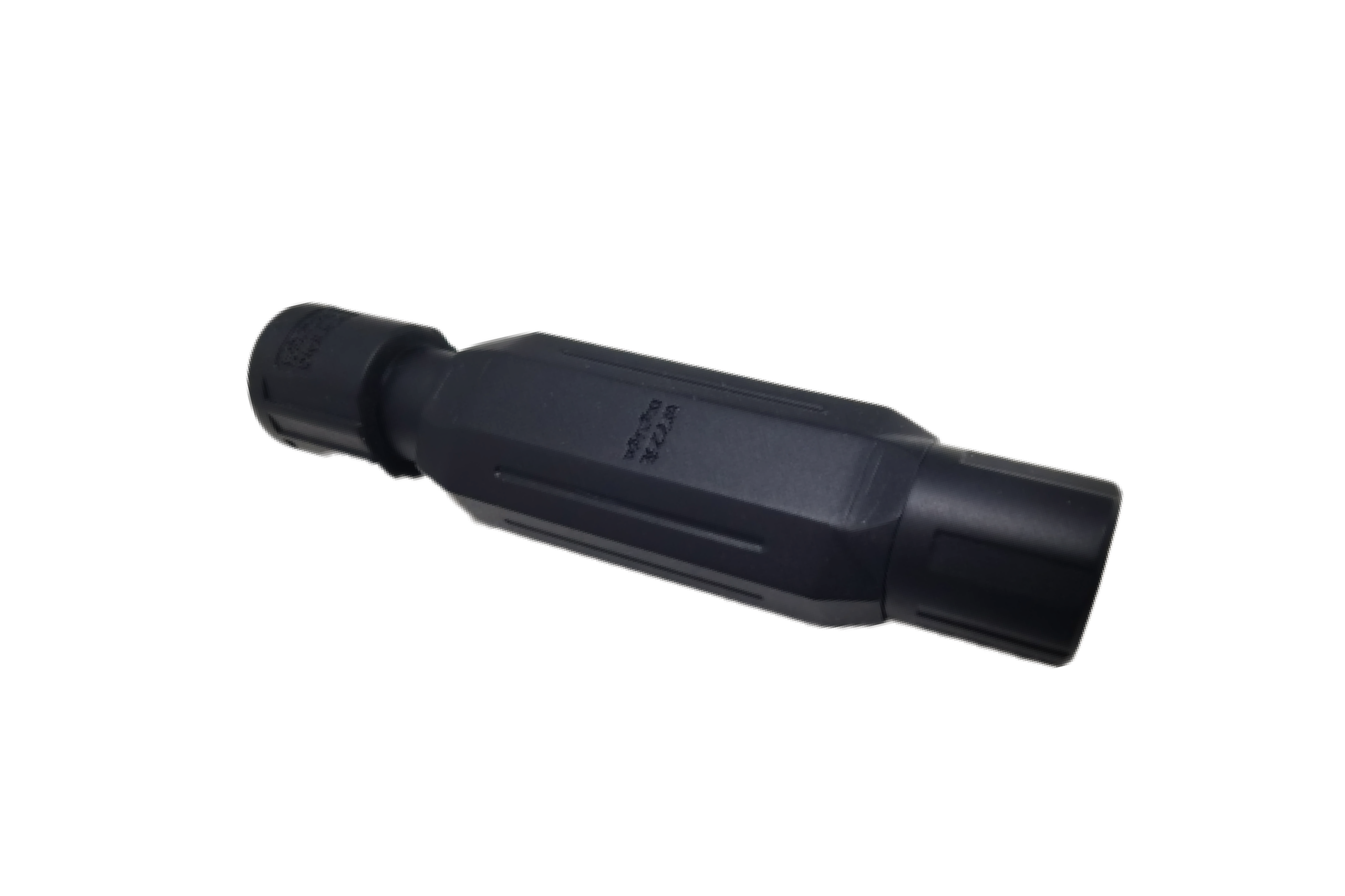

Product appearance

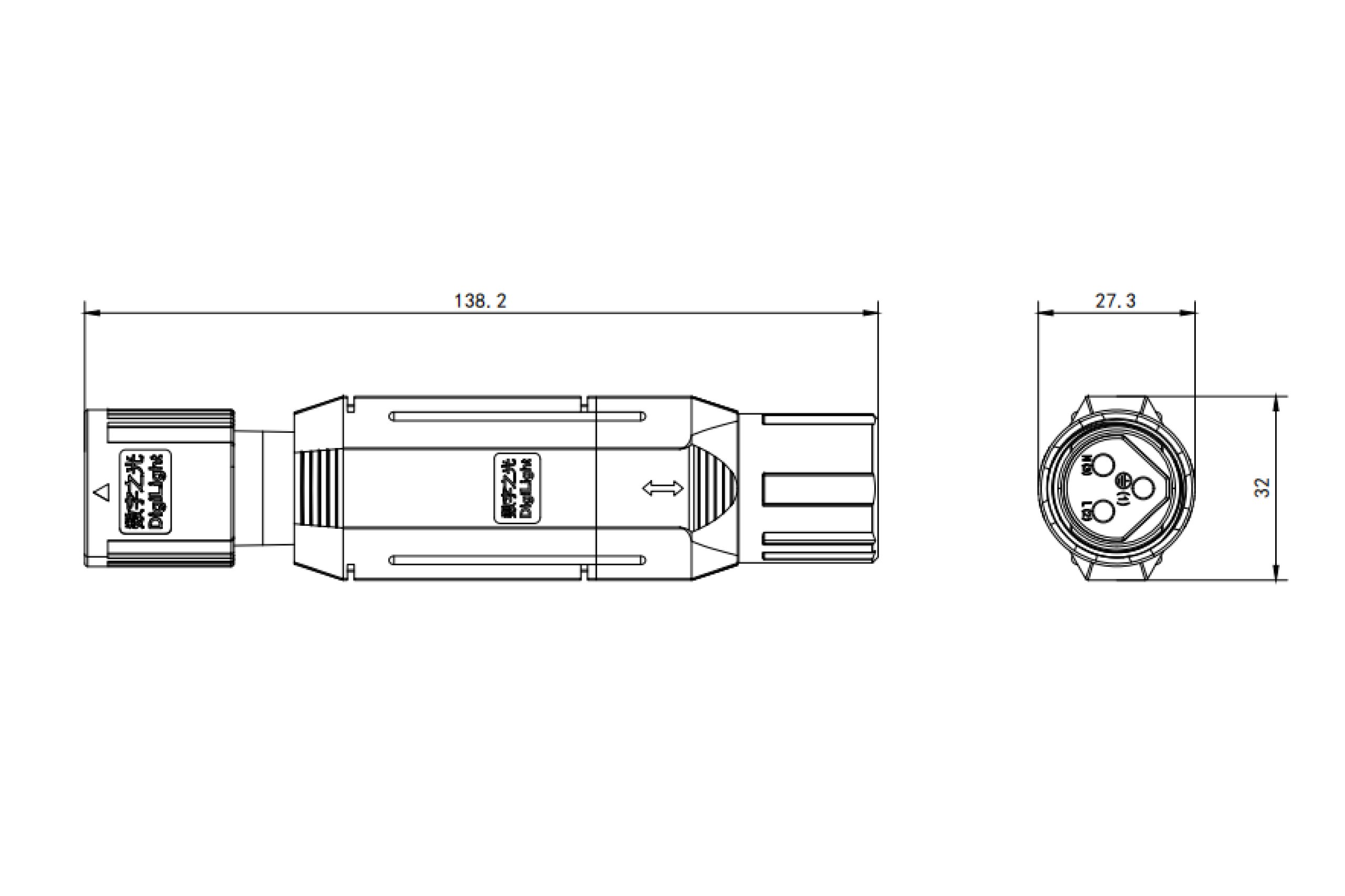

Product size
Product specification
| Model | Conductor | Rated voltage | Rated current | Temperature | Protection level | Adapter catheter | Combustion performance class |
| DL-LJT-V-340 | 3×4.0/3×2.5mm² | 25A | 250VAC | -25~+65°C | IP40 | φ16 Flexible metal pipe /PVC20 tube | B1 |

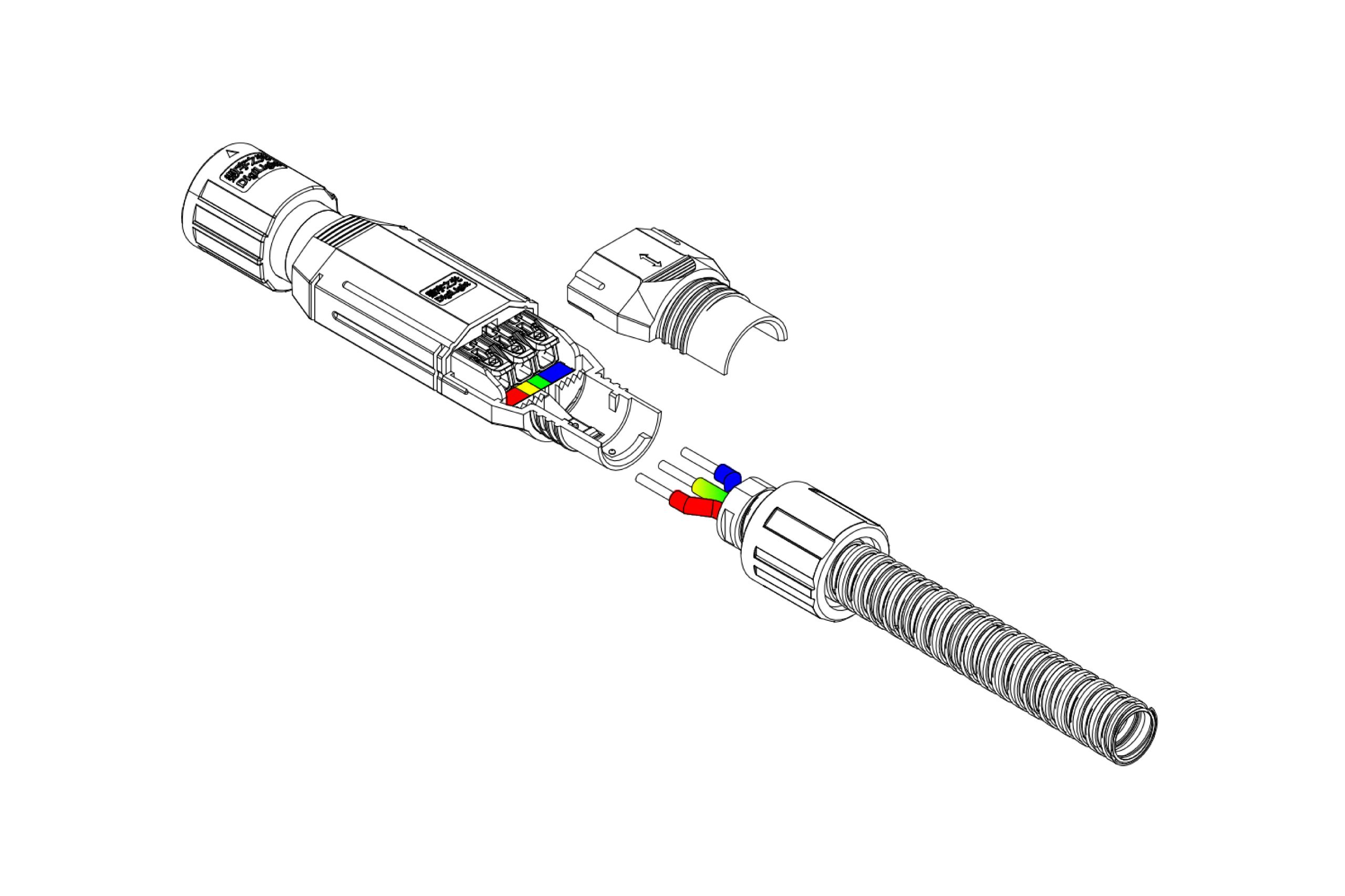

Connection diagram

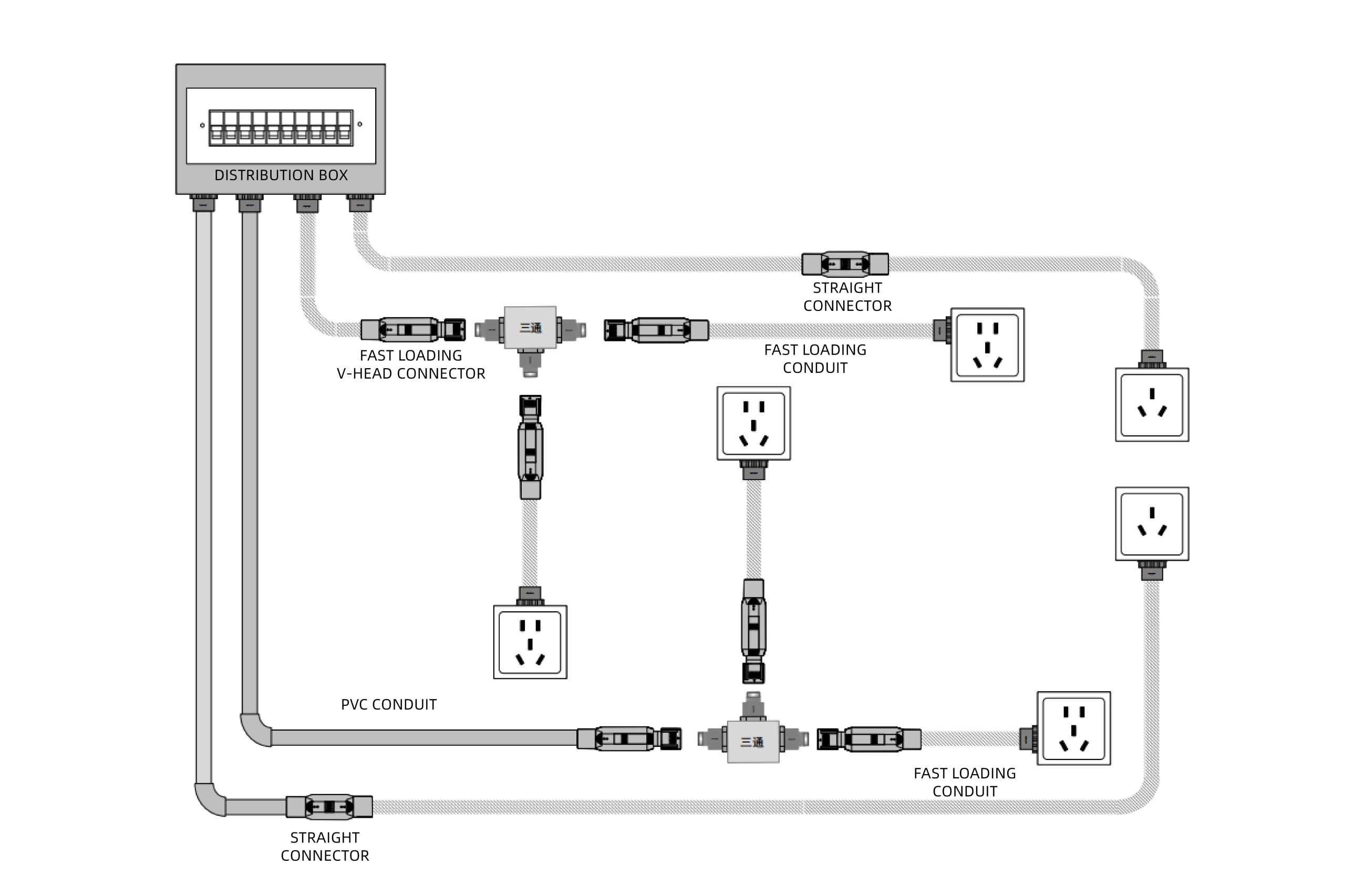

Application scenario

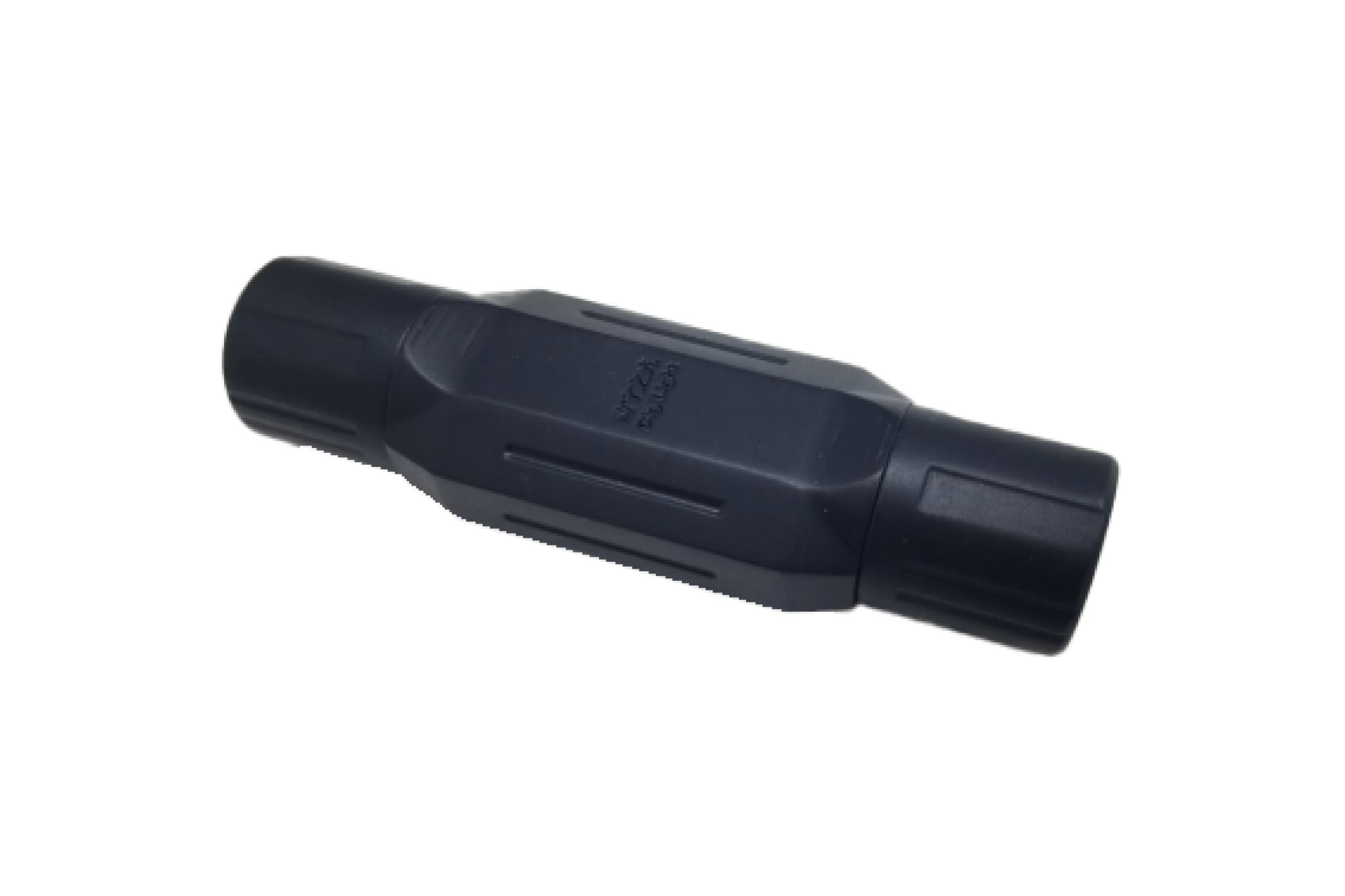

Wire connector
Product description
Connect the PVC pipe to the cut pipe (cut pipe to cut pipe, or cut pipe to PVC pipe), connect the wire between the power supply and the socket through the built-in quick connect terminal, and fix it through the fastener. The products can be widely used in old renovation, home improvement, hotel and other places with some pre-buried scenes.
Product appearance

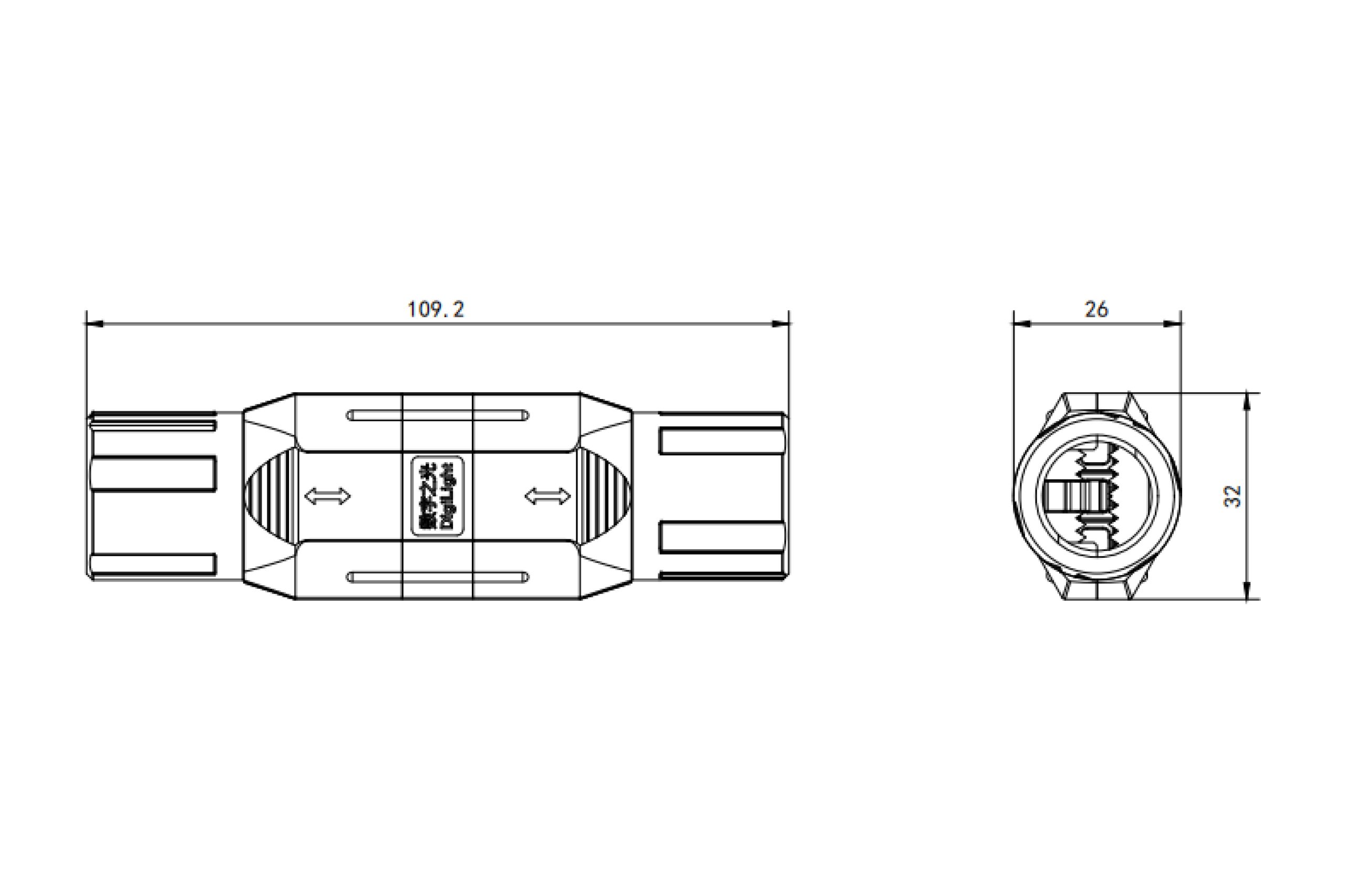

Product size
Product specification
| Model | Conductor | Rated voltage | Rated current | Temperature | Protection level | Adapter catheter | Combustion performance class |
| DL-LJT-X-340 | 3×4/3×2.5mm² BV line | 25A | 250VAC | -25~+65°C | IP40 | φ16 Flexible metal pipe | B1 |

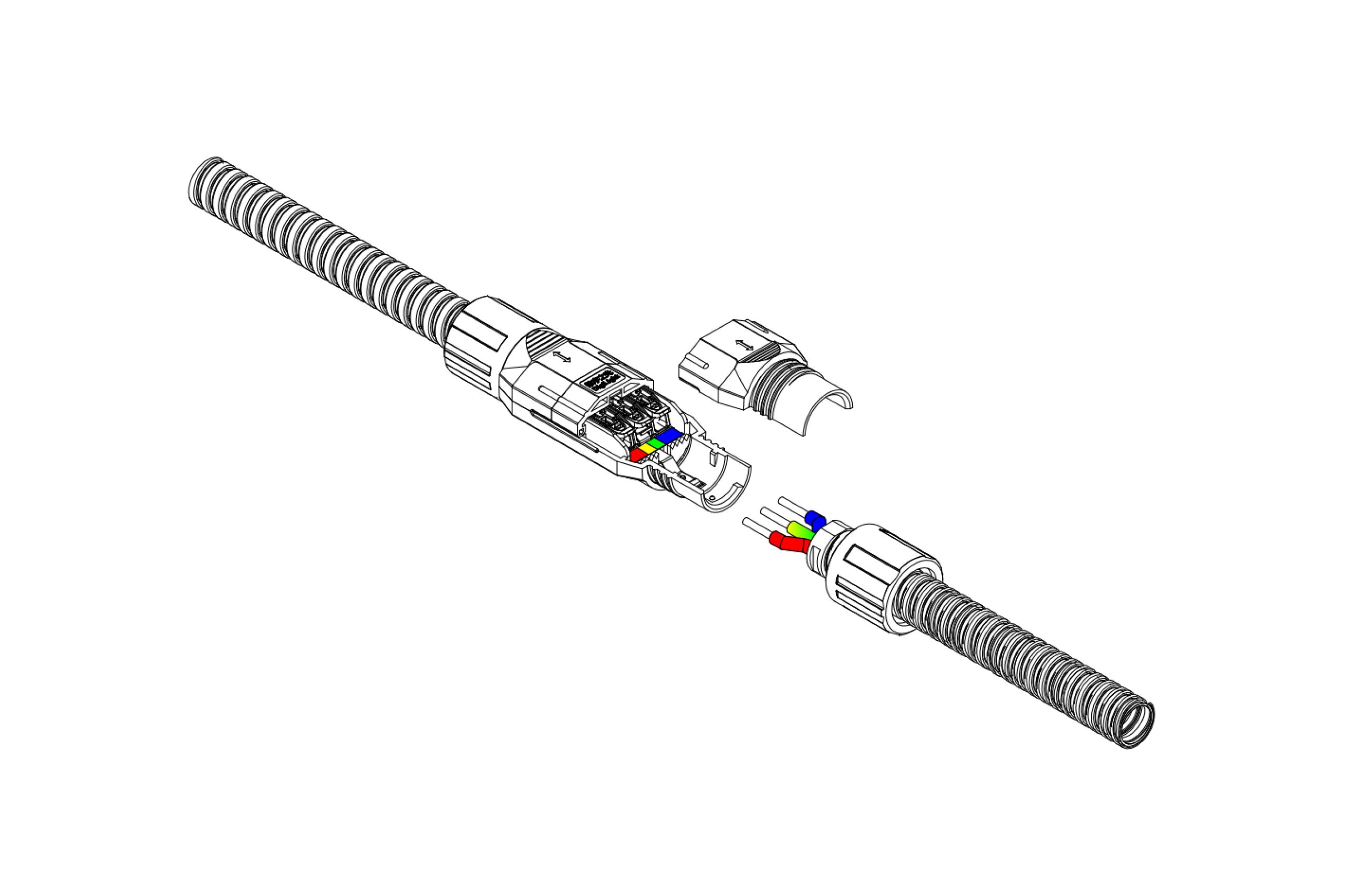

Connection diagram
Application scenario
Metal cuttable conduit
Product description
The protection pipe is made of flexible metal conduit, the inner wall is covered with insulating powder layer, the built-in low-smoke halogen-free wire, and the length is freely cut on site. The combustion performance of the product reaches class A. It can be widely used in high-end business, hotels, hospitals, factories and other places.

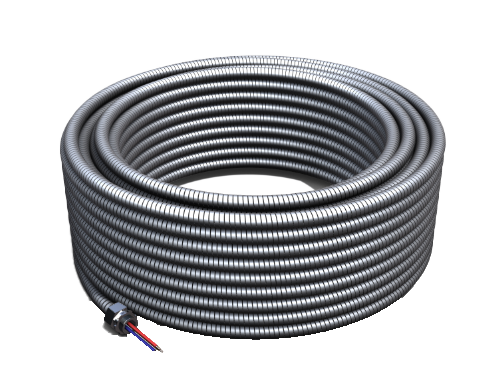

Product appearance
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level | Length |
| DL-KZGX340M | 16mm | 3×4.0mm² | 25A | 250VAC | -25~+65°C | IP20 | 50m |
| DL-KZGX425M | 16mm | 4×2.5mm² | 16A | 250VAC | -25~+65°C | IP20 | 50m |
| DL-KZGX325M | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP20 | 50m |
| DL-KZGX225M | 16mm | 2×2.5mm² | 16A | 250VAC | -25~+65°C | IP20 | 50m |
| DL-KZGX240M | 16mm | 2×4.0mm² | 25A | 250VAC | -25~+65°C | IP20 | 50m |

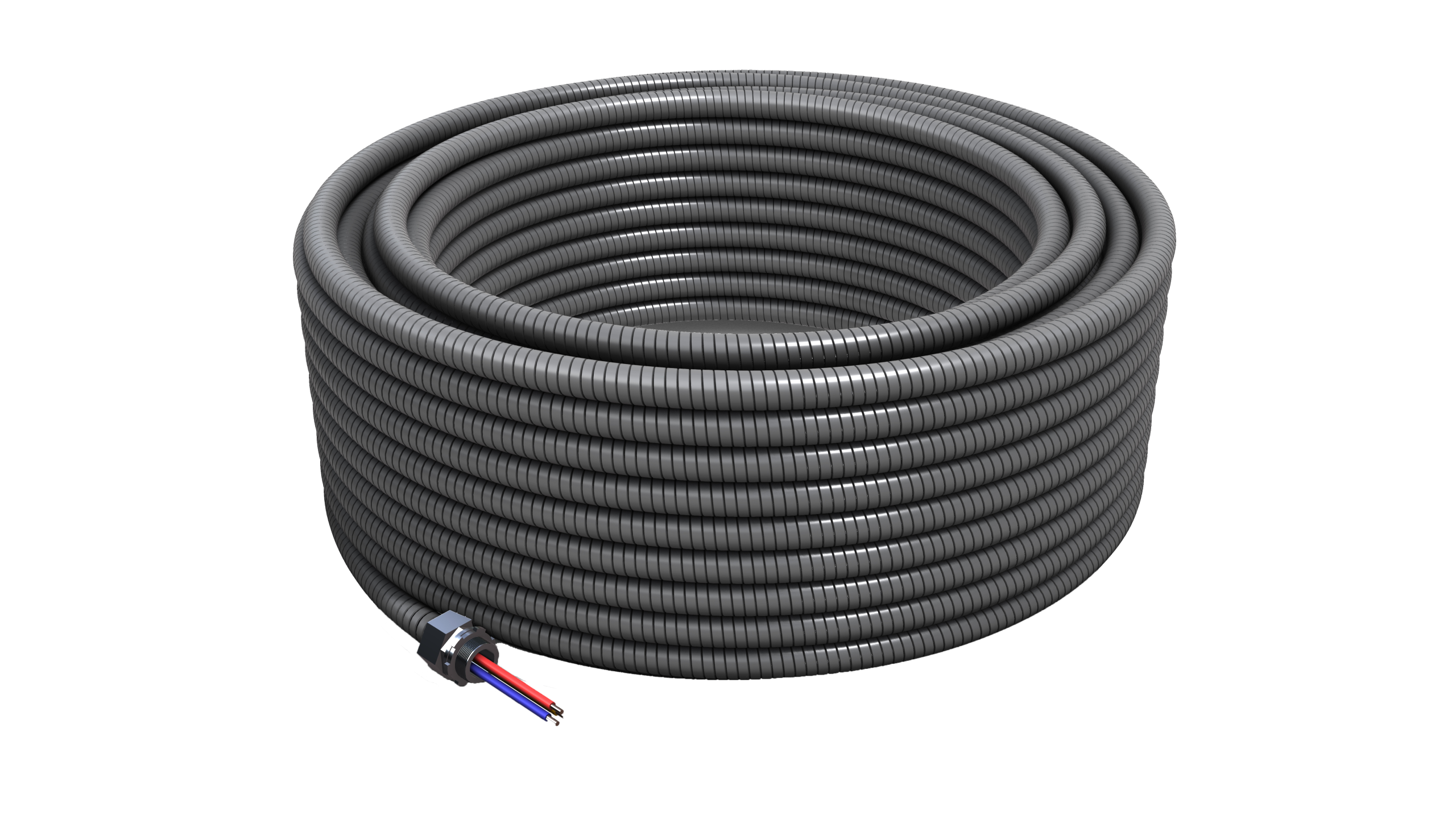

Plastic-Coated Metal Cuttable conduit
Product description
The protection pipe is made of flexible metal conduit, and the built-in wire is made of one body structure. It is an integrated product with field free cutting length, and the accessories can be used perfectly with the double female pipe products.
Product characteristics
Conduit integration, on-site free cutting, beautiful products, very industrial wind, color optional, to meet a variety of needs.
Product appearance
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Length |
| DL-KZGX3×4.0 | 16mm | 3×4.0mm² | 25A | 250VAC | -25~+65°C | 50m |
| DL-KZGX4×2.5 | 16mm | 4×2.5mm² | 16A | 250VAC | -25~+65°C | 50m |
| DL-KZGX3×2.5 | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | 50m |
| DL-KZGX2×2.5 | 13mm | 2×2.5mm² | 16A | 250VAC | -25~+65°C | 50m |
| DL-KZGX4×1.5 | 16mm | 4×1.5mm² | 10A | 250VAC | -25~+65°C | 50m |
| DL-KZGX3×1.5 | 13mm | 3×1.5mm² | 10A | 250VAC | -25~+65°C | 50m |
| DL-KZGX2×1.5 | 13mm | 2×1.5mm² | 10A | 250VAC | -25~+65°C | 50m |
