Junction Box Series
QuickConnect Conduit
Quick connect of prefabricated junction box
Product description
This product is an aluminum alloy structure distribution box specially designed for lighting load and switchgear connection. It adopts rapid terminal block and modular design, which is suitable for indoor lighting system and distribution line branch scene. The housing is corrosion resistant and impact resistant, and the side walls are equipped with knocked down connection holes to support flexible wiring.

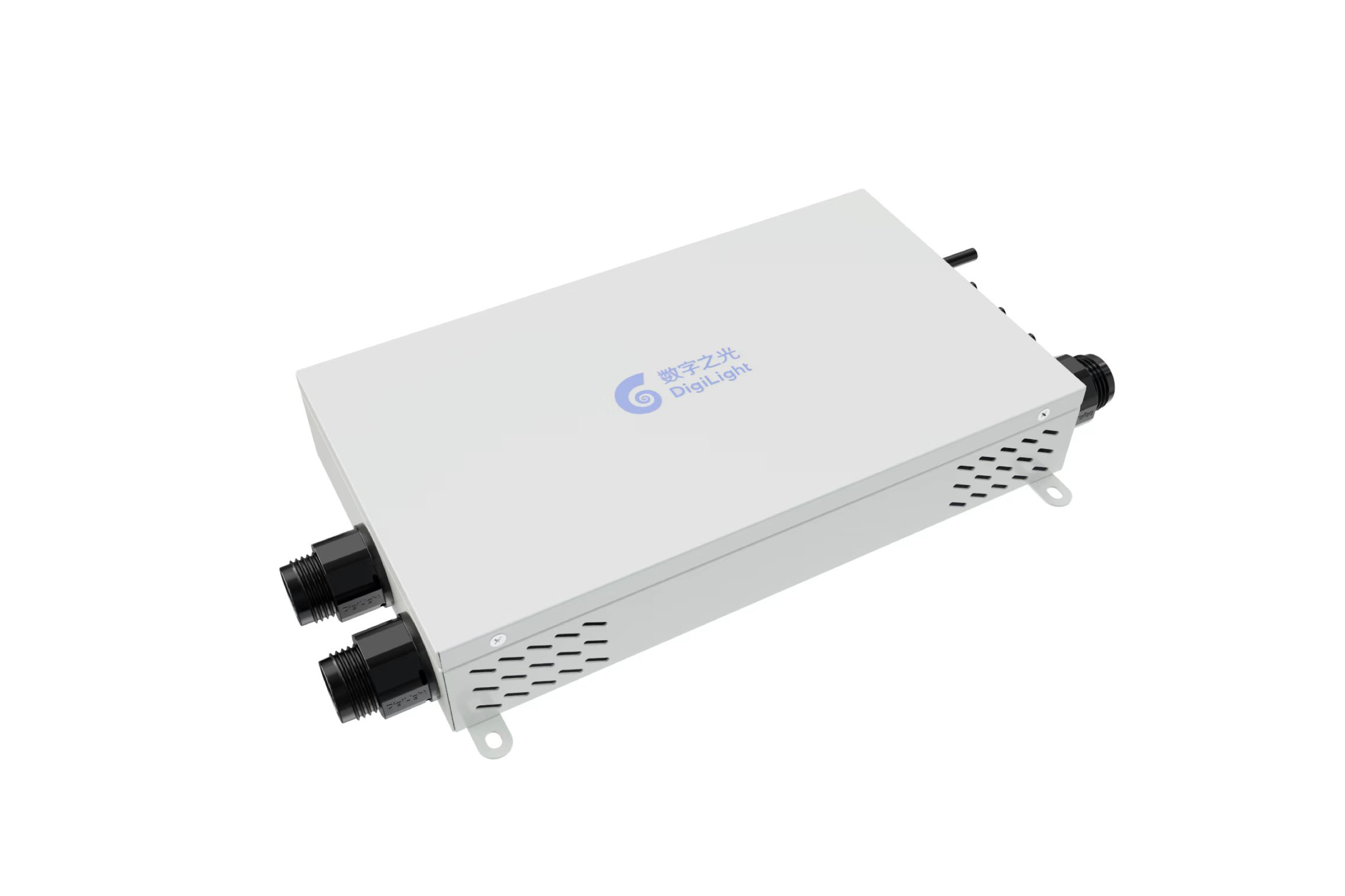

Product appearance

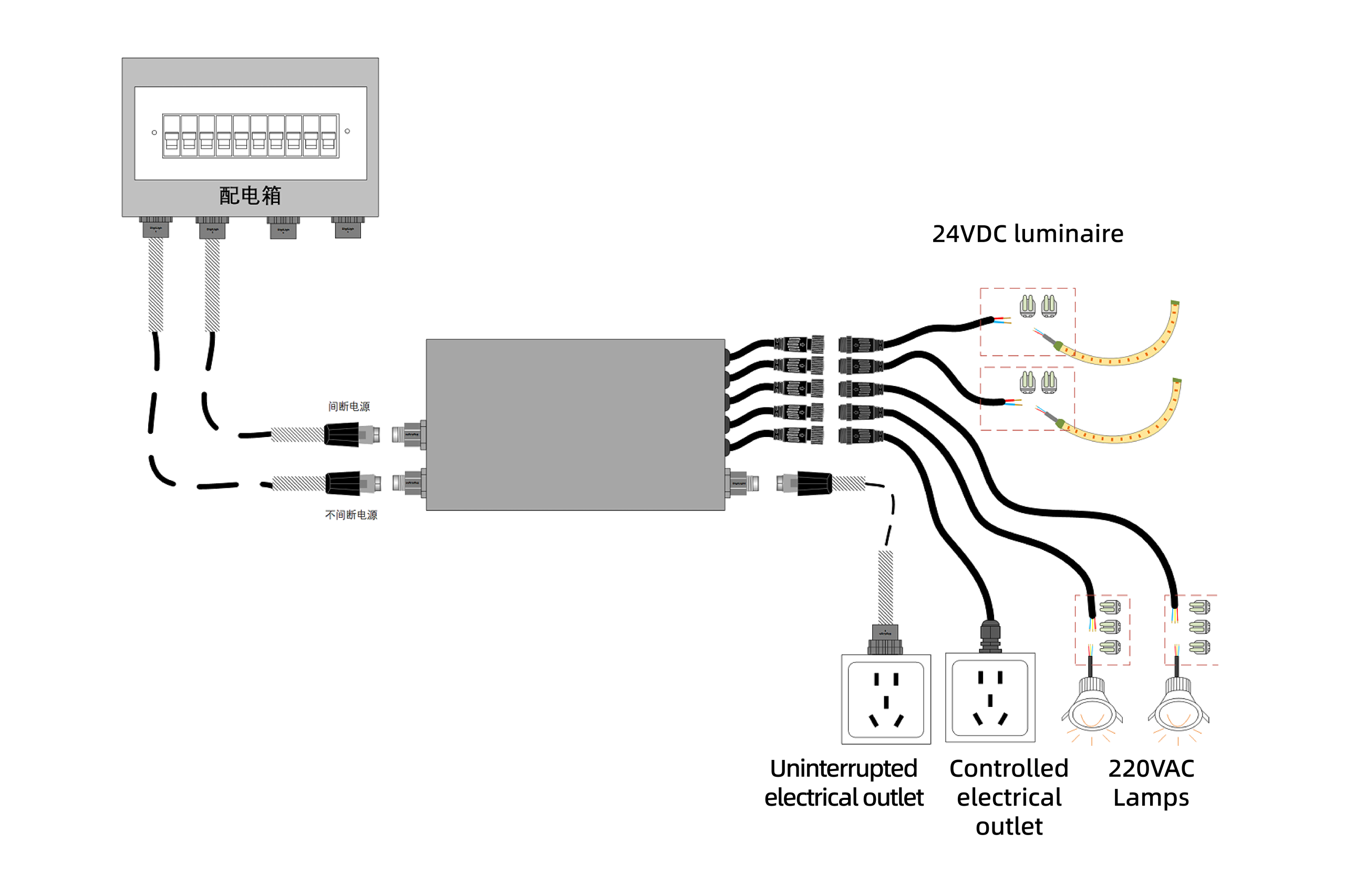

Wiring Diagram
Product specification
| Model | Number of U-shaped knock holes | Number of holes on the bottom | Top cover outlet cable Hole count | N-wire terminal Interface number | PE-wire terminal Interface number | L-wire terminal Interface number | Lamp terminal Interface number |
| DL-FXH10056A01 | 8 | 4 | None | 4 | 4 | 4 | 4 |
| DL-FXH10056A02 | 10 | 4 | None | 4 | 6 | 4 | 4 |
| DL-FXH10056A03 | 10 | 4 | None | 6 | 6 | 4 | 4 |
| DL-FXH10056A04 | 10 | 4 | None | 8 | 8 | 4 | 4 |
| DL-FXH10056A05 | 10 | 6 | 1 | 4 | 4 | 4 | 4 |
| DL-FXH5056A01 | 2 | 4 | None | 4 | 4 | 4 | 4 |
Quick connect of prefabricated junction box
Product description
This product is an aluminum alloy structure distribution box specially designed for lighting load and switchgear connection. It adopts rapid terminal block and modular design, which is suitable for indoor lighting system and distribution line branch scene. The housing is corrosion resistant and impact resistant, and the side walls are equipped with knocked down connection holes to support flexible wiring.

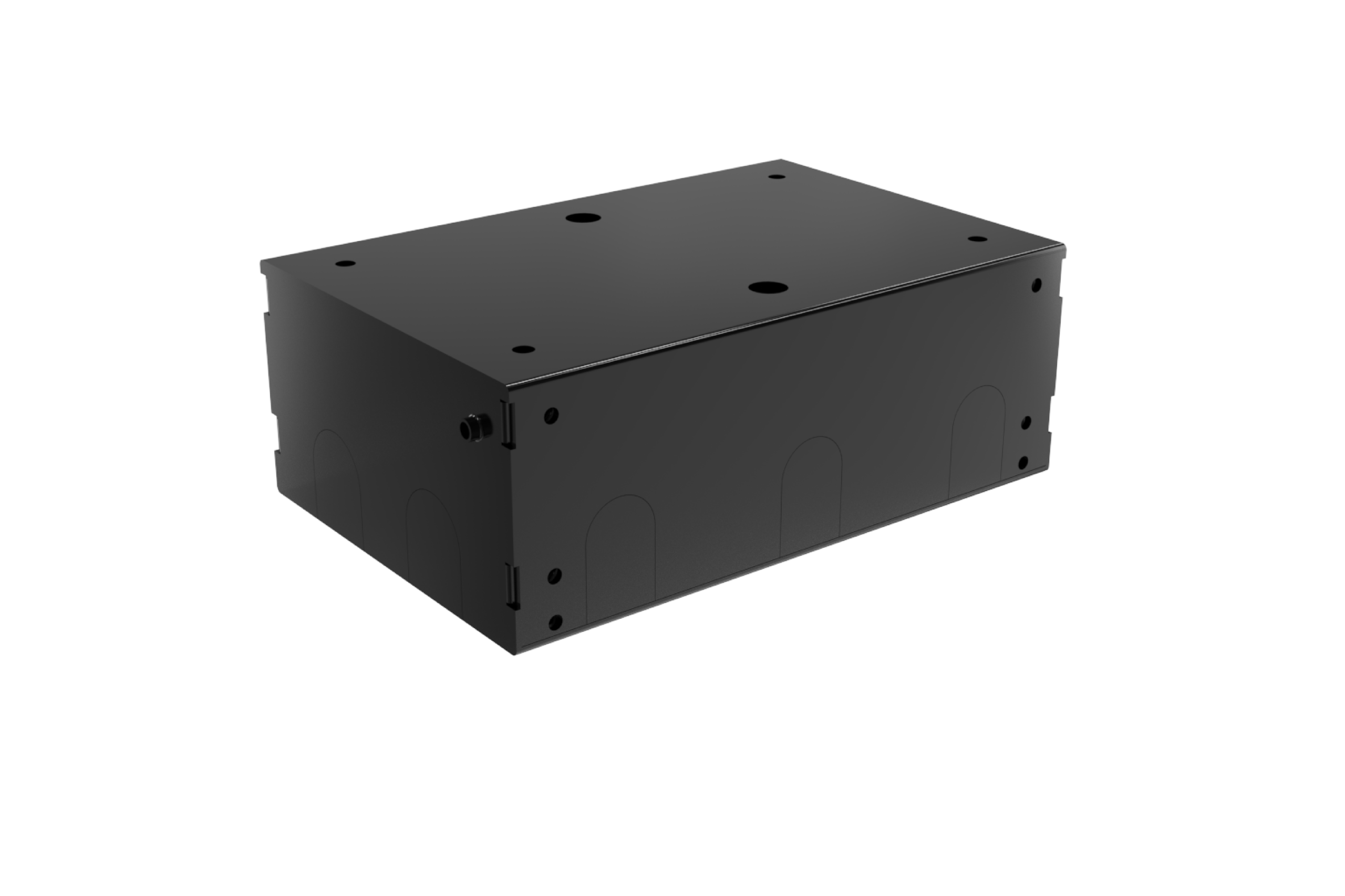

Product appearance
Product specification
| Model | Number of U-shaped knock holes | Number of holes on the bottom | Top cover outlet cable Hole count | N-wire terminal Interface number | PE-wire terminal Interface number | L-wire terminal Interface number | Lamp terminal Interface number |
| DL-FXH10056A01 | 8 | 4 | None | 4 | 4 | 4 | 4 |
| DL-FXH10056A02 | 10 | 4 | None | 4 | 6 | 4 | 4 |
| DL-FXH10056A03 | 10 | 4 | None | 6 | 6 | 4 | 4 |
| DL-FXH10056A04 | 10 | 4 | None | 8 | 8 | 4 | 4 |
| DL-FXH10056A05 | 10 | 6 | 1 | 4 | 4 | 4 | 4 |
| DL-FXH5056A01 | 2 | 4 | None | 4 | 4 | 4 | 4 |

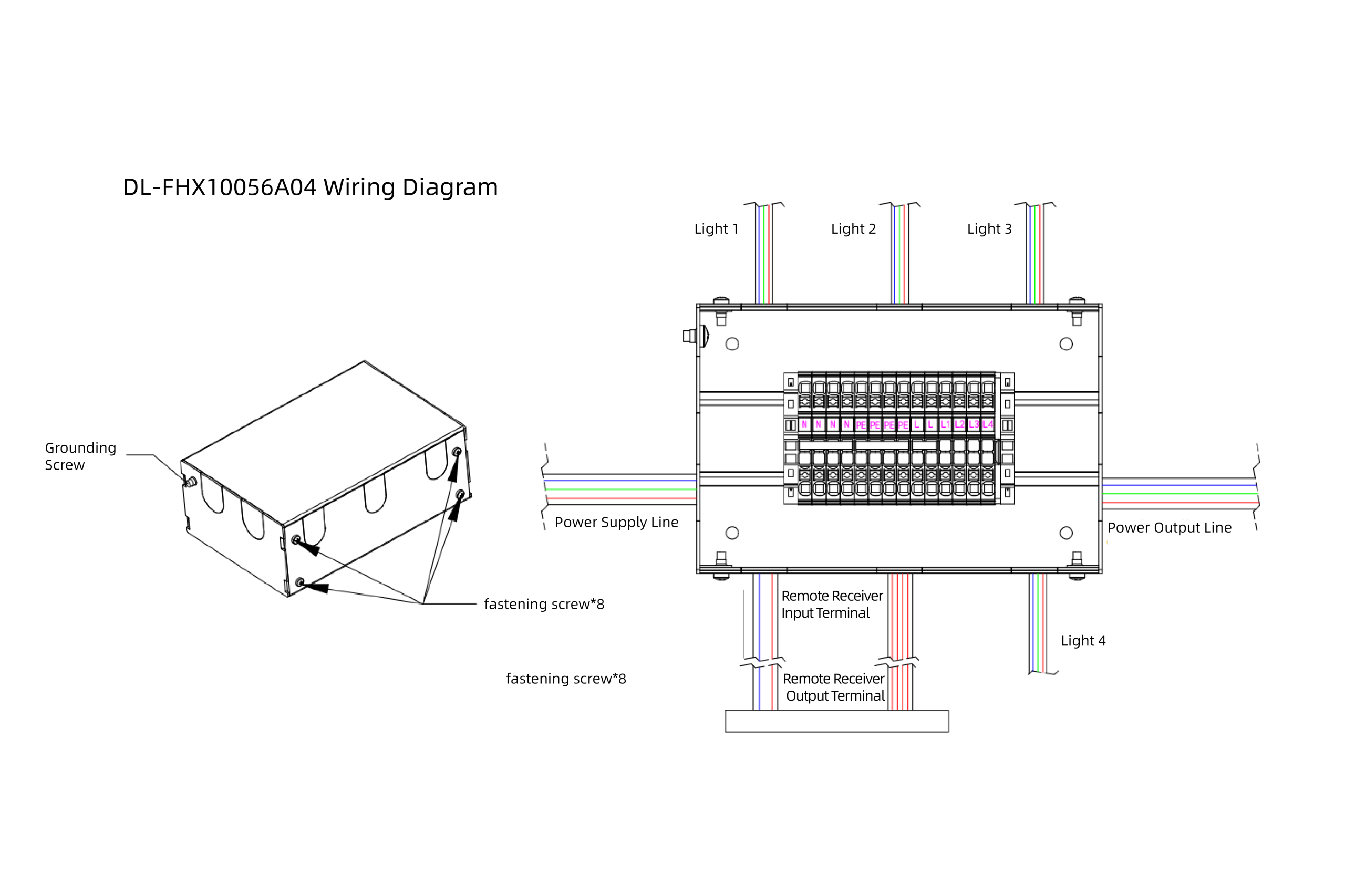

DL-FHX10056A04 Wiring Diagram
DL-FHX5056A01 Wiring Diagram
