Plastic Coated Metal Series
QuickConnect Conduit

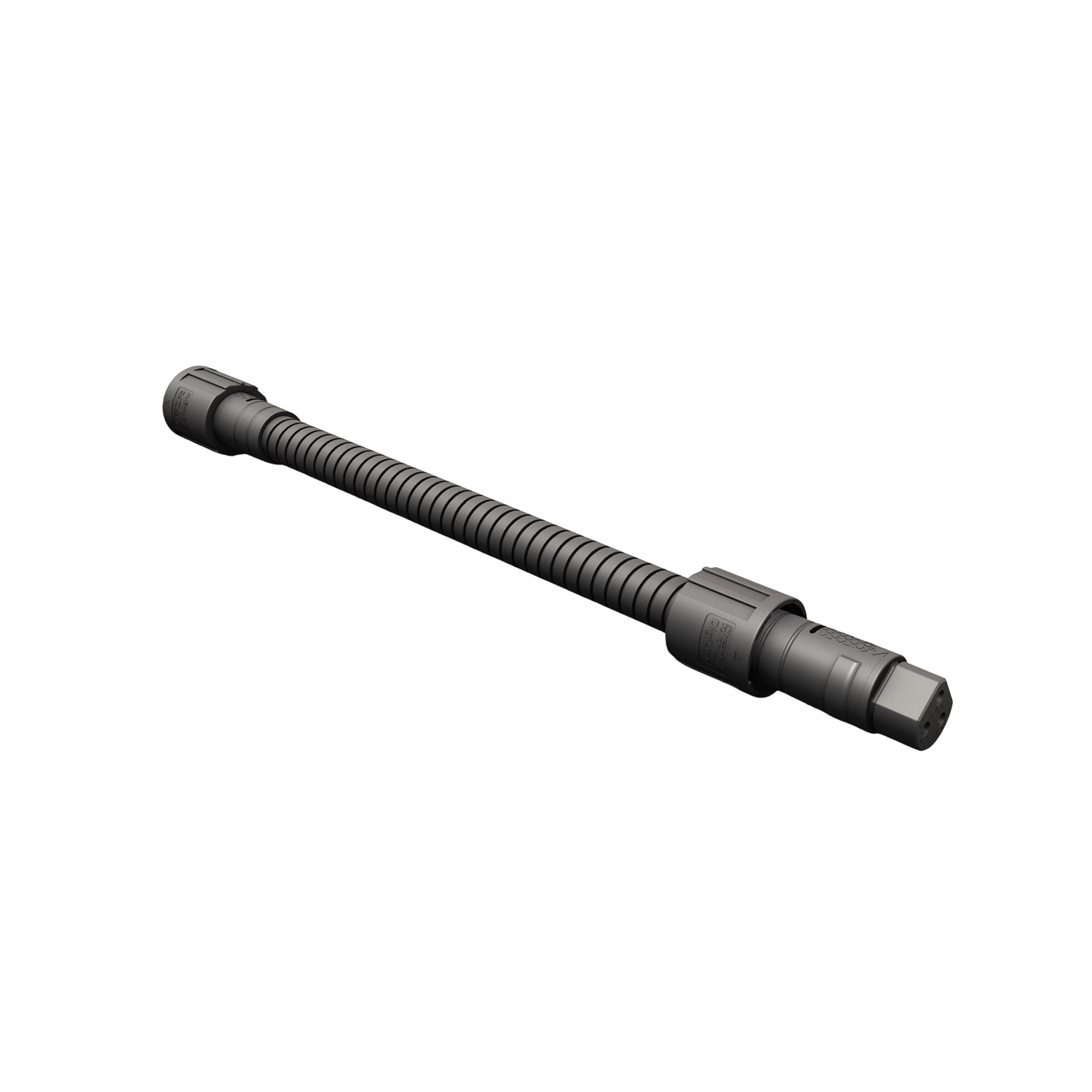

Double female end V+V
Product description
The protection pipe is made of flexible metal conduit, and the integrated product with built-in wire (pipe + line integrated injection molding) double ends and standard interface is adopted. Perfect alternative to traditional conduits.
Conduit length can be customized (0.5-20m).
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-KZGX340 | 16mm | 3x4mm² | 25A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX325 | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX225 | 13mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX415 | 16mm | 4×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX315 | 13mm | 3×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX215 | 13mm | 2×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX425 | 16mm | 4×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |

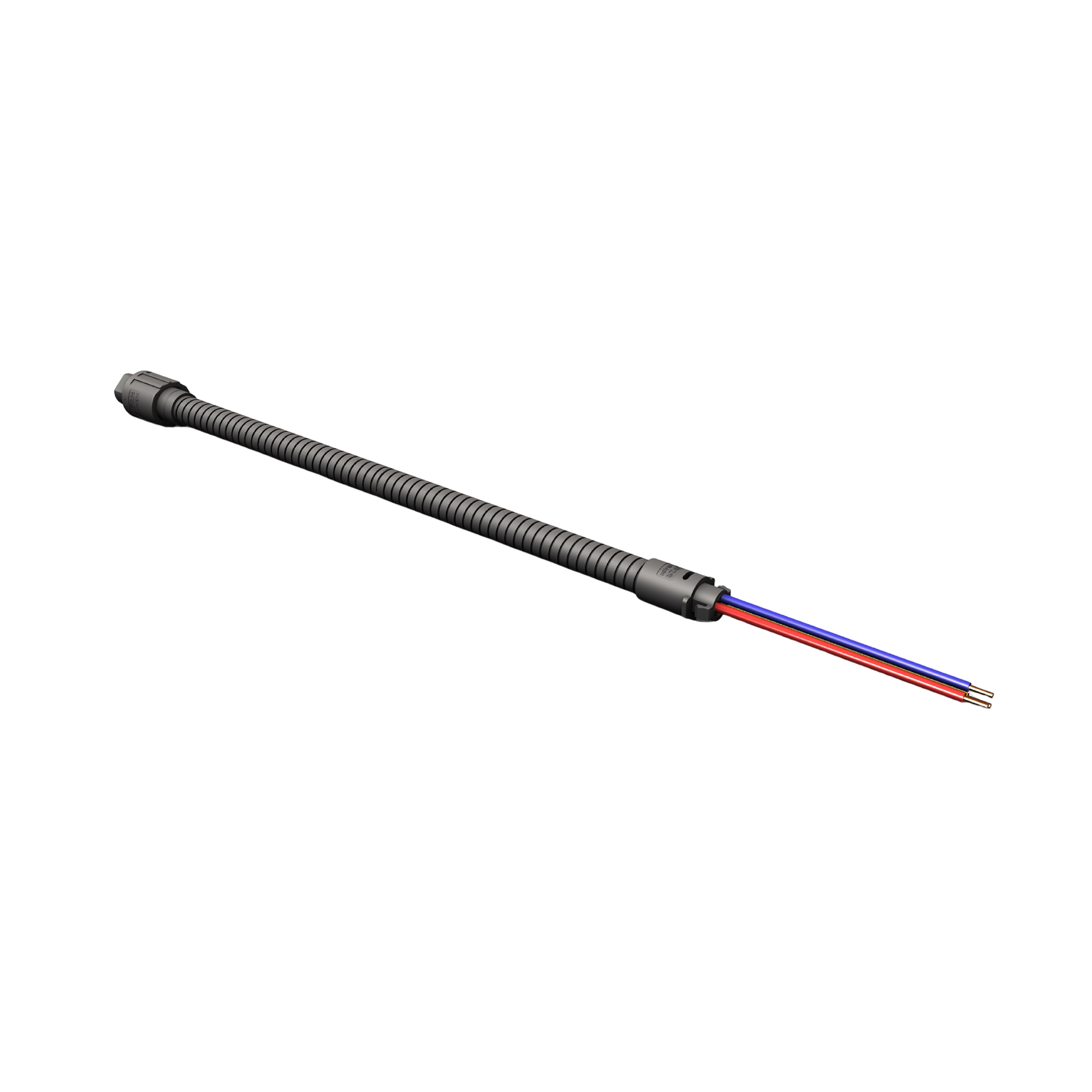

Single-end quick clip V+K
Product description
The protection pipe is made of flexible metal conduit and built-in wire (pipe + wire). It is an integrated product with standard interface at one end and fast card device at the other end, which can perfectly match XH-8630 junction box.
Conduit length can be customized (0.5-20m).
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-KZGX340 | 16mm | 3x4mm² | 25A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX325 | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX225 | 13mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX415 | 16mm | 4×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX315 | 13mm | 3×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX215 | 13mm | 2×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX425 | 16mm | 4×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |
Single-end quick clip V+Y
Product description
The protection pipe is made of flexible metal conduit and built-in wire (pipe + wire). It is an integrated product with standard interface at one end and quick lock device at the other end, which can perfectly match XH-8650 junction box.
Conduit length can be customized (0.5-20m).
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-KZGX340 | 16mm | 3x4mm² | 25A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX325 | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX225 | 13mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX415 | 16mm | 4×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX315 | 13mm | 3×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX215 | 13mm | 2×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX425 | 16mm | 4×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |

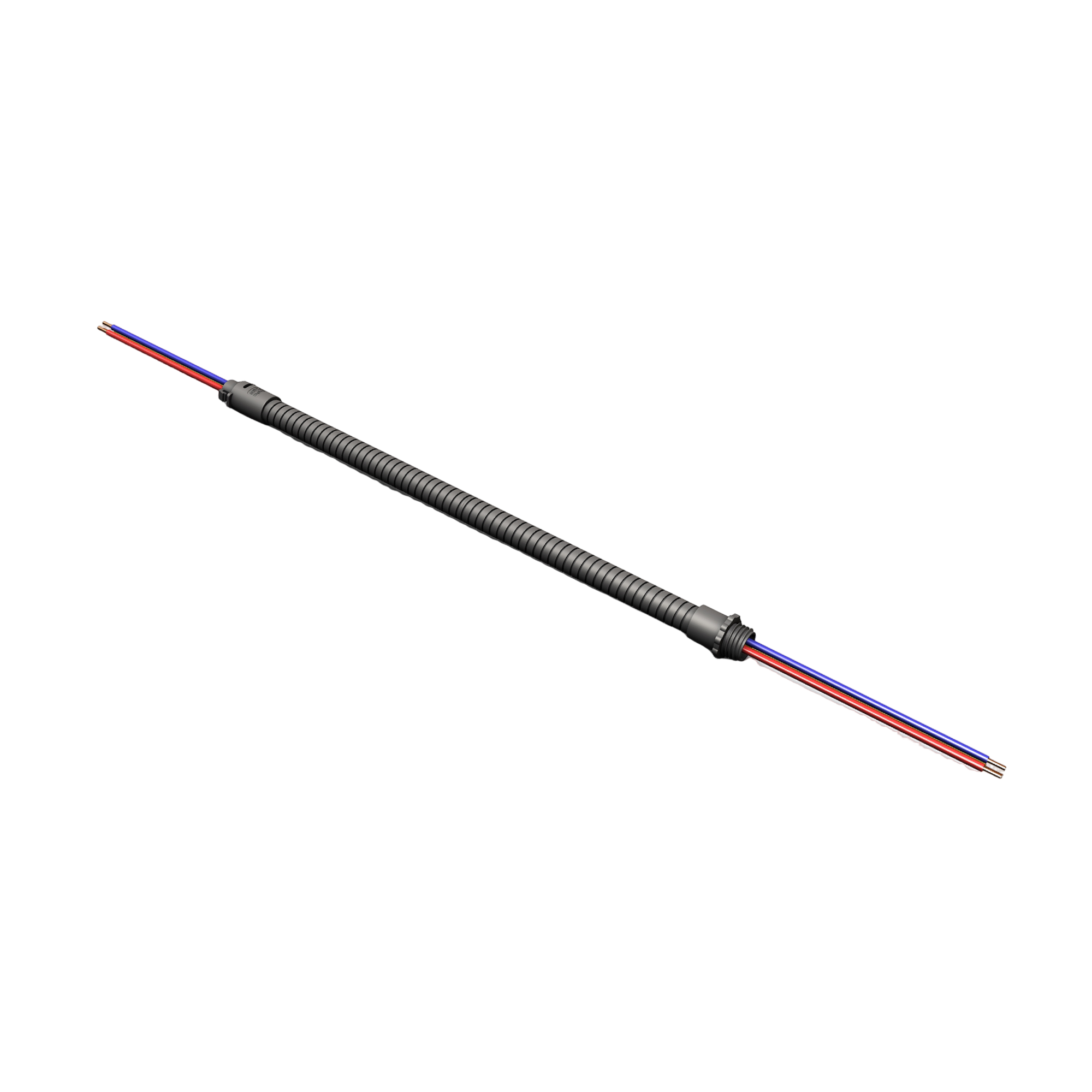

Round end+quick clip Y+K
Product description
The protection tube is made of flexible metal conduit, with built-in wire (tube + wire), the K end can perfectly match the XH-8630 junction box, and the Y end is connected to the XH-8650.
Conduit length can be customized (0.5-20m).
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-KZGX340 | 16mm | 3x4mm² | 25A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX325 | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX225 | 13mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX415 | 16mm | 4×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX315 | 13mm | 3×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX215 | 13mm | 2×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX425 | 16mm | 4×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |
Double round end Y+Y
Product description
The protection pipe is made of flexible metal conduit, with built-in wire (pipe + wire), and both ends are connected with XH-8650.
Conduit length can be customized (0.5-20m).
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-KZGX340 | 16mm | 3x4mm² | 25A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX325 | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX225 | 13mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX415 | 16mm | 4×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX315 | 13mm | 3×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX215 | 13mm | 2×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |
| DL-KZGX425 | 16mm | 4×2.5mm² | 16A | 250VAC | -25~+65°C | IP65 |

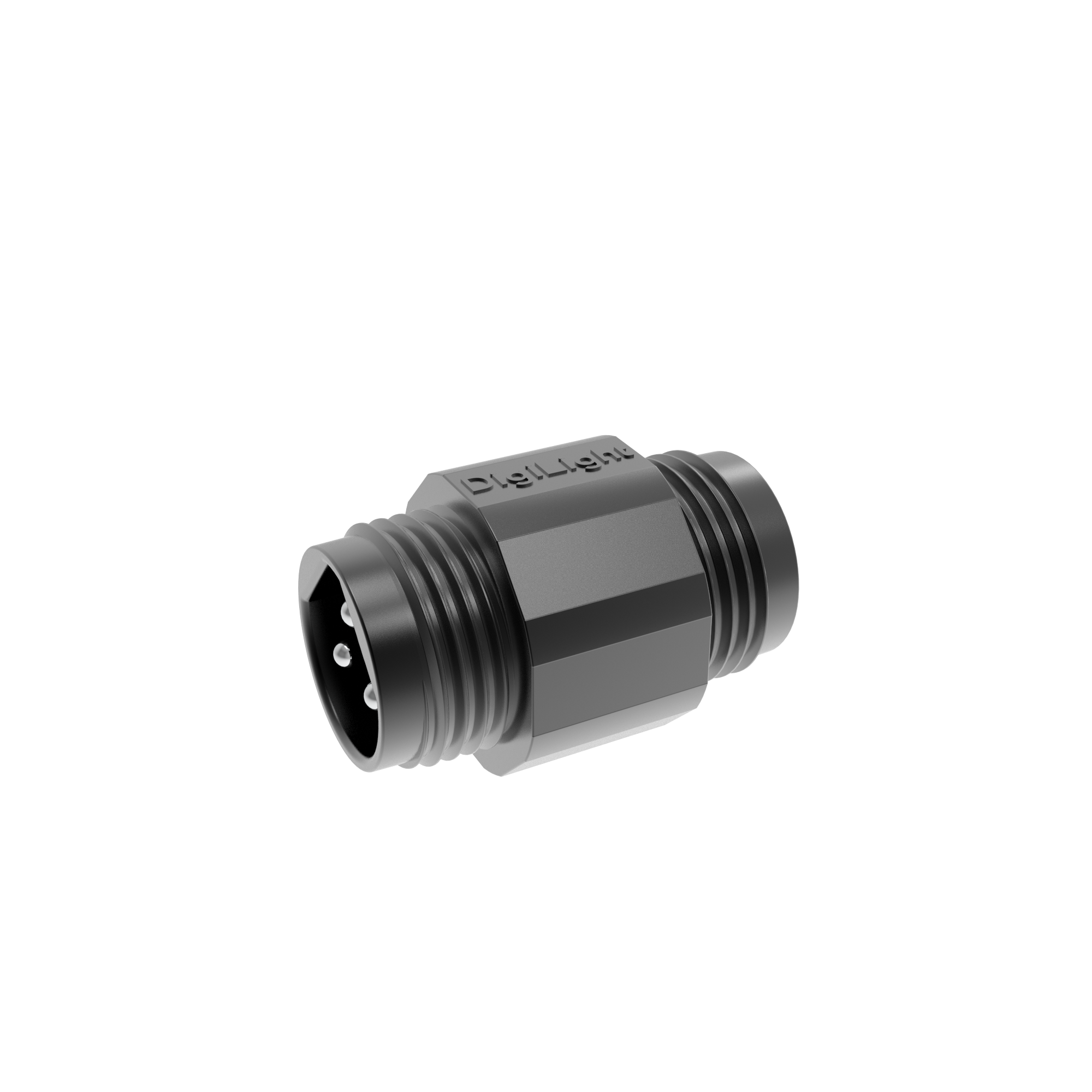

Straight splitter
Product description
The product is made of V0 grade flame retardant material, which is used for connecting connecting parts between quick installation conduits.
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-FXQ-T-340 | 16mm | 3×4.0/3×2.5mm² | 25A | 250VAC | -25~+65°C | IP65 |
| DL-FXQ-T-425 | 16mm | 4×2.5/4×1.5mm² | 16A/10A | 250VAC | -25~+65°C | IP65 |
| DL-FXQ-T-215 | 13mm | 2×2.5/2×1.5mm² | 16A/10A | 250VAC | -25~+65°C | IP65 |
| DL-FXQ-T-315 | 13mm | 3×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |

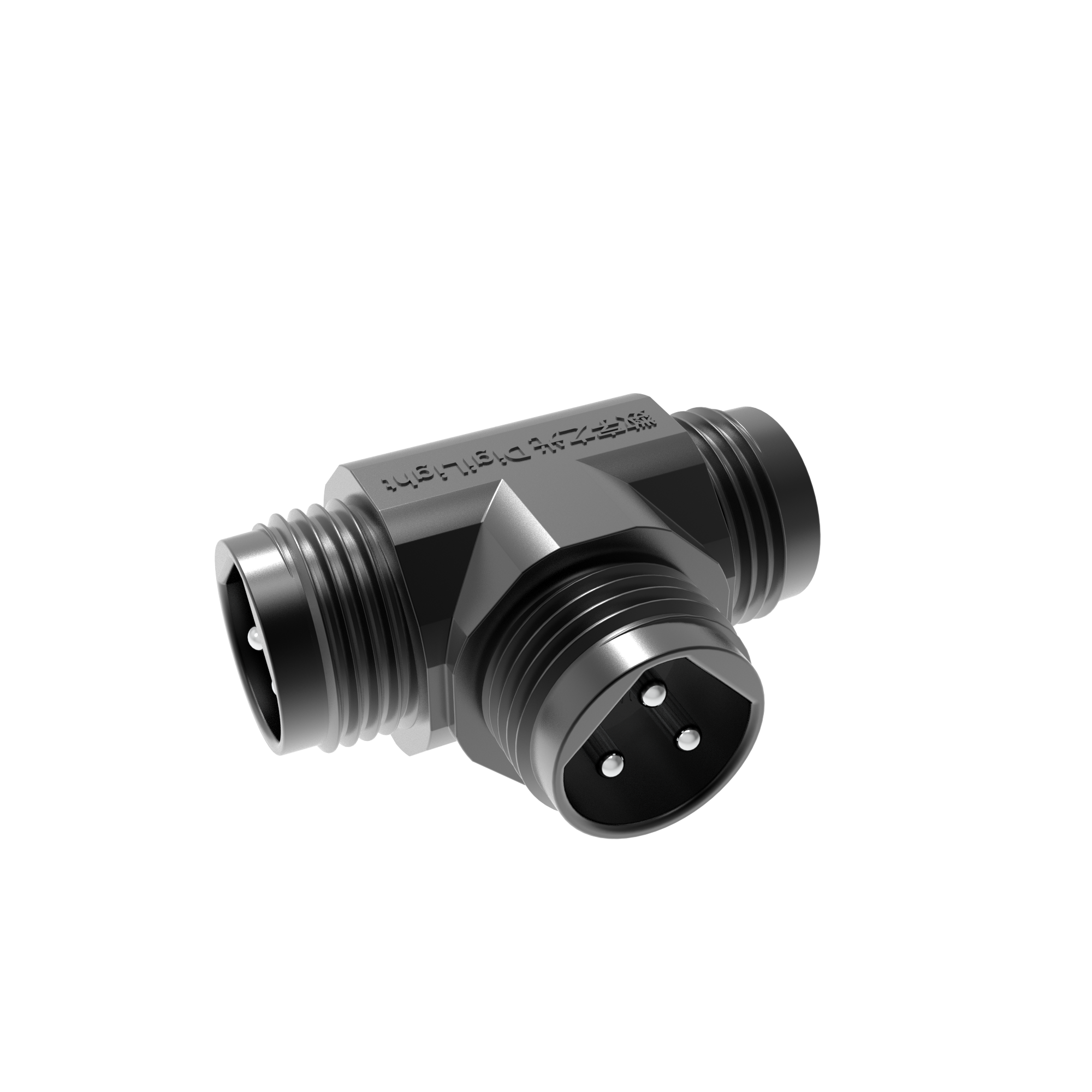

Tee splitter
Product description
The product uses V0 grade flame retardant material, which is used for connecting parts used in fast loading conduit circuit branches.
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-FXQ-T-340 | 16mm | 3×4.0/3×2.5mm² | 25A | 250VAC | -25~+65°C | IP65 |
| DL-FXQ-T-425 | 16mm | 4×2.5/4×1.5mm² | 16A/10A | 250VAC | -25~+65°C | IP65 |
| DL-FXQ-T-215 | 13mm | 2×2.5/2×1.5mm² | 16A/10A | 250VAC | -25~+65°C | IP65 |
| DL-FXQ-T-315 | 13mm | 3×1.5mm² | 10A | 250VAC | -25~+65°C | IP65 |

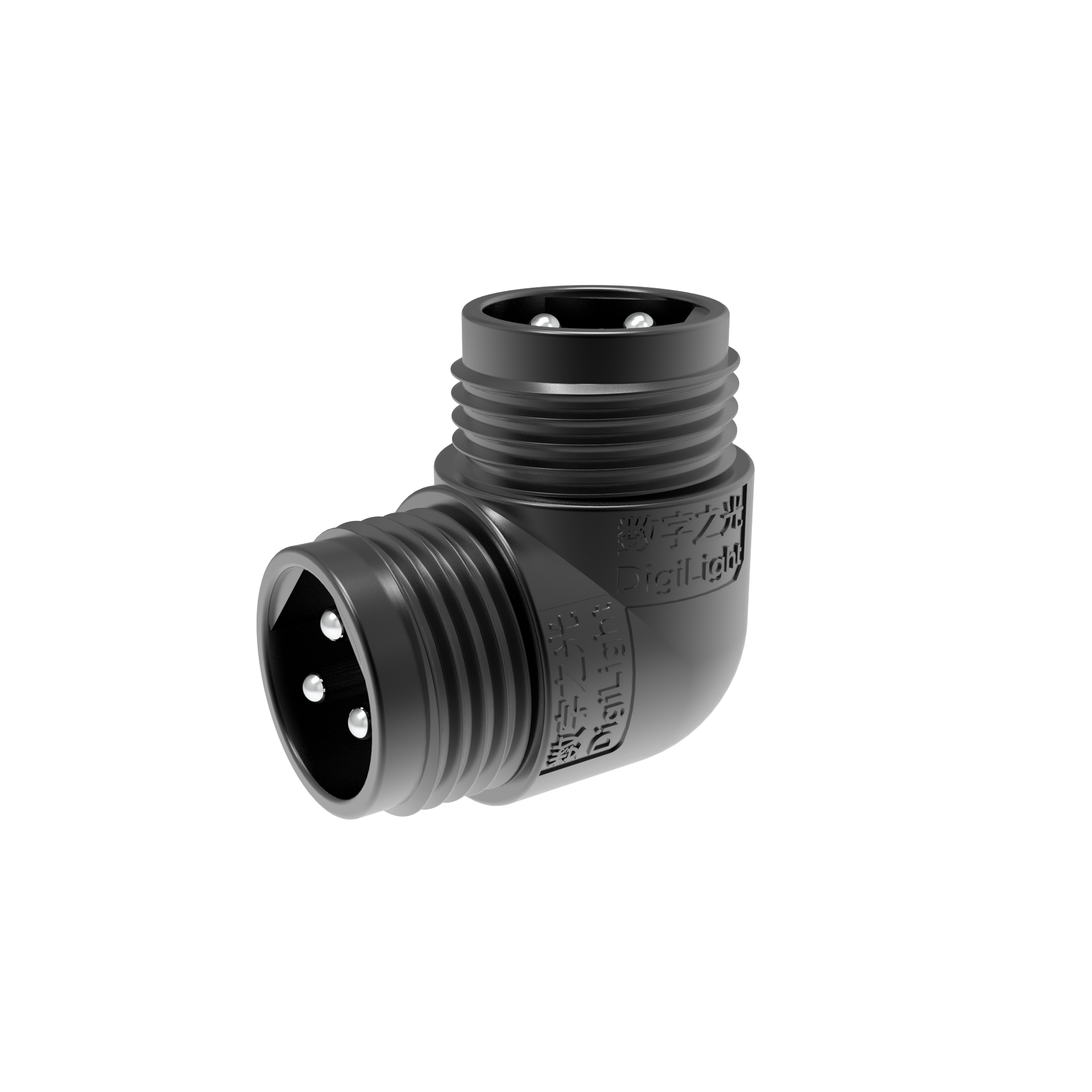

L connector
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-FXQ-O-340-L | 16mm | 3×4.0/3×2.5mm² | 25A | 250VAC | -25~+65°C | IP65 |

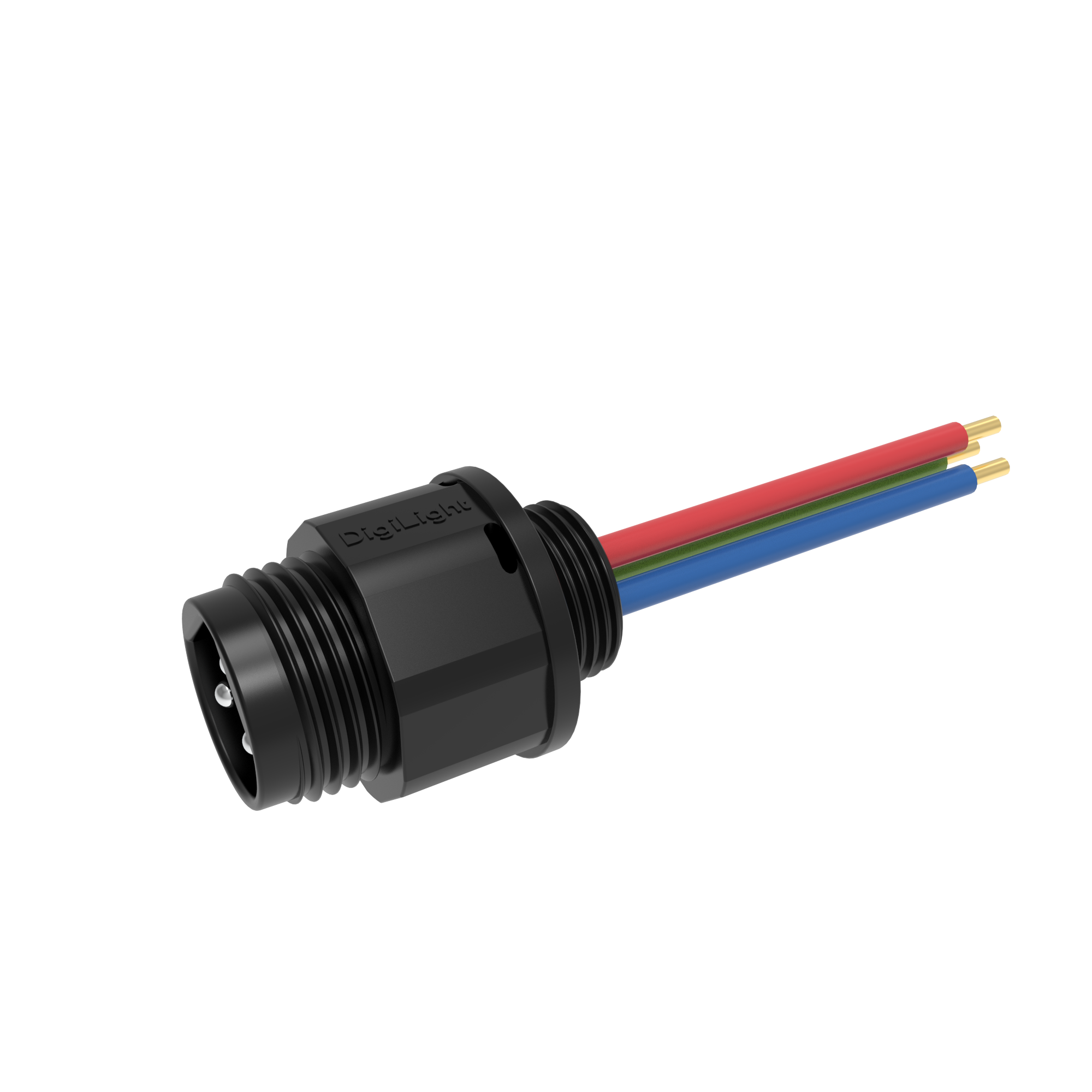

End connector
Product description
The product is made of V0 grade flame retardant material, which is a part of the quick assembly conduit and the assembled junction box (for connecting the end electrical appliances) or the wiring terminals in the assembled quick assembly electrical box and the floor meter box.
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-LJQ-340 | 16mm | 3×4.0/3×2.5mm² | 25A | 250VAC | -25~+40°C | IP65 |
| DL-LJQ-425 | 16mm | 4×2.5/4×1.5mm² | 16A | 250VAC | -25~+40°C | IP65 |
| DL-LJQ-225 | 13mm | 2×2.5/2×1.5mm² | 16A | 250VAC | -25~+40°C | IP65 |
| DL-LJQ-315 | 16mm | 3×1.5mm² | 10A | 250VAC | -25~+40°C | IP65 |

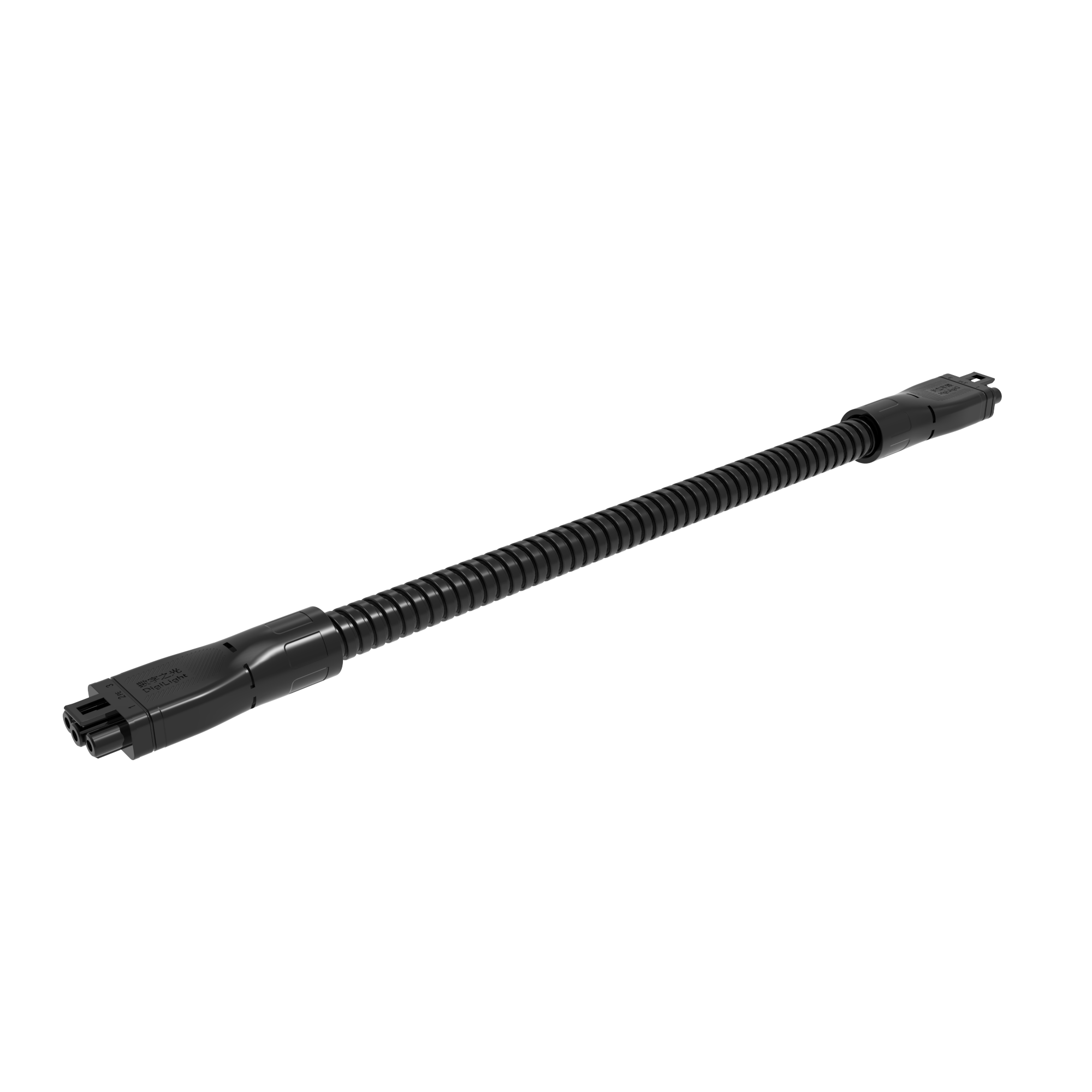

Double thin end B+B
Product description
The protection pipe is made of flexible metal conduit, with built-in wire (pipe + lineintegrated injection molding) with flat ends Interface for integrated products. Perfect alternative to traditional conduits.
Conduit length can be customized (0.5-20m).
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-KZGX340B | 16mm | 3x4mm² | 25A | 250VAC | -25~+65°C | IP20 |
| DL-KZGX325B | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP20 |

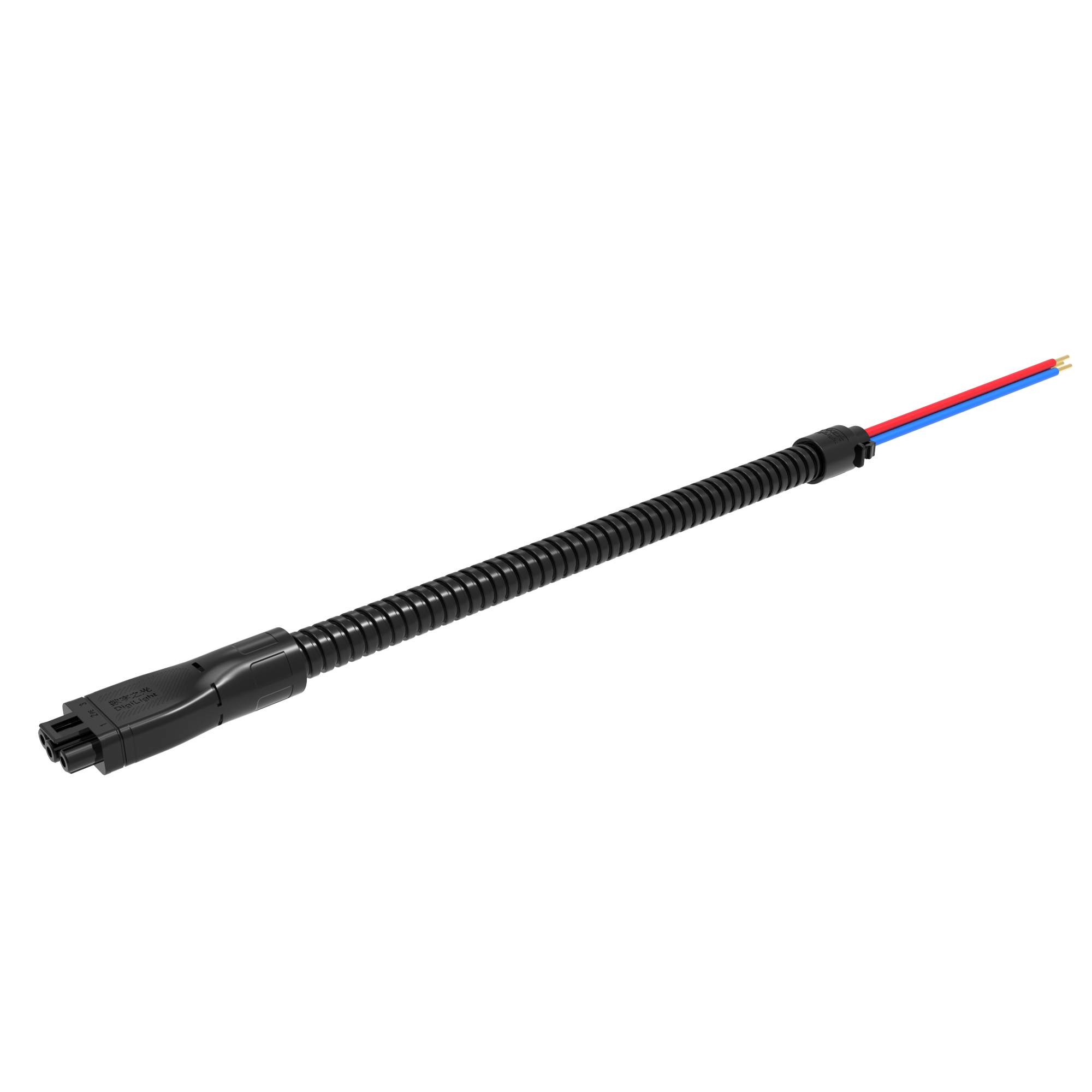

Flat end + quick clip B+K
Product description
The protection pipe is made of flexible metal conduit, and the integrated product with built-in wire (pipe + line integrated injection molding) has a flat interface at one end and a fast card interface at the other end. Perfect alternative to traditional conduits.
Conduit length can be customized (0.5-20m).
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-KZGX340B | 16mm | 3x4mm² | 25A | 250VAC | -25~+65°C | IP20 |
| DL-KZGX325B | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP20 |

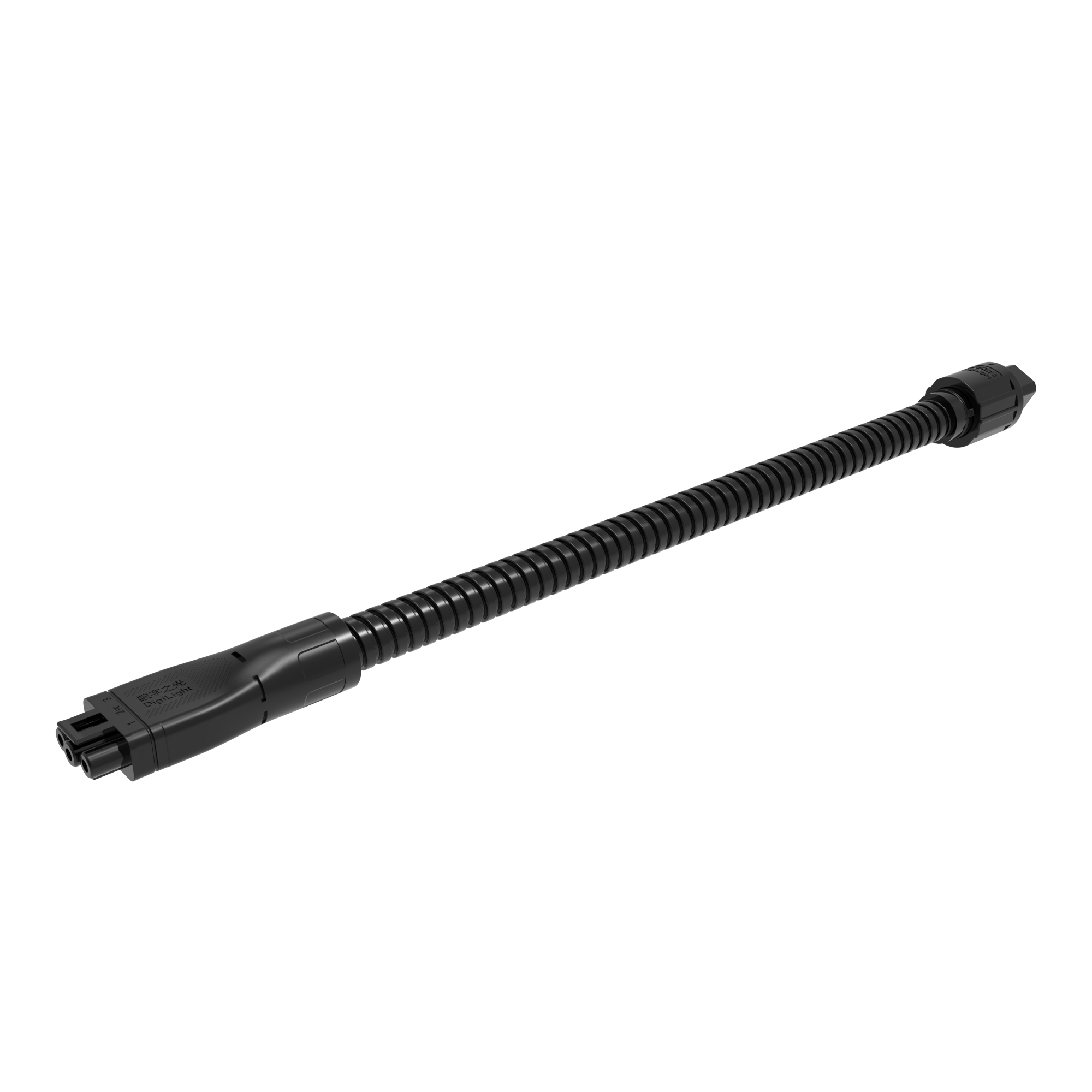

thin end + round end B+V
Product description
The protection pipe is made of flexible metal conduit, and one end of the built-in wire (pipe + line integrated injection molding) is a round head V-shaped interface An integrated product with a flat interface at one end. Perfect alternative to traditional conduits.
Conduit length can be customized (0.5-20m).
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-KZGX340B | 16mm | 3x4mm² | 25A | 250VAC | -25~+65°C | IP20 |
| DL-KZGX325B | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP20 |

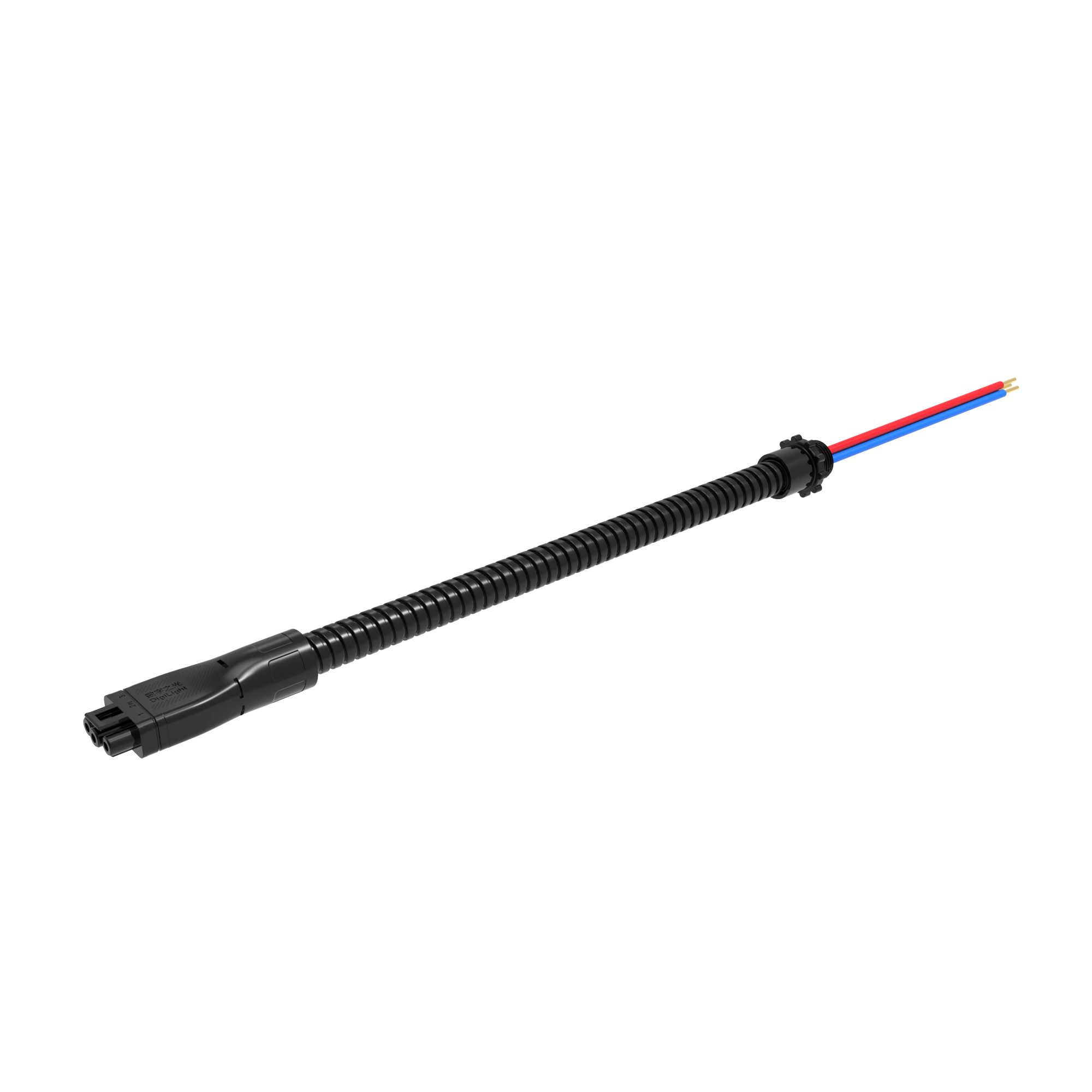

Round end connector B+Y
Product description
The protection pipe is an integrated product with flexible metal conduit, one end of which is a flat interface and the other end of which is a round head connector with built-in wire (pipe + line integrated injection molding). Perfect alternative to traditional conduits.
Conduit length can be customized (0.5-20m).
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-KZGX340B | 16mm | 3x4mm² | 25A | 250VAC | -25~+65°C | IP20 |
| DL-KZGX325B | 16mm | 3×2.5mm² | 16A | 250VAC | -25~+65°C | IP20 |
Round end connector B+Y
Product description

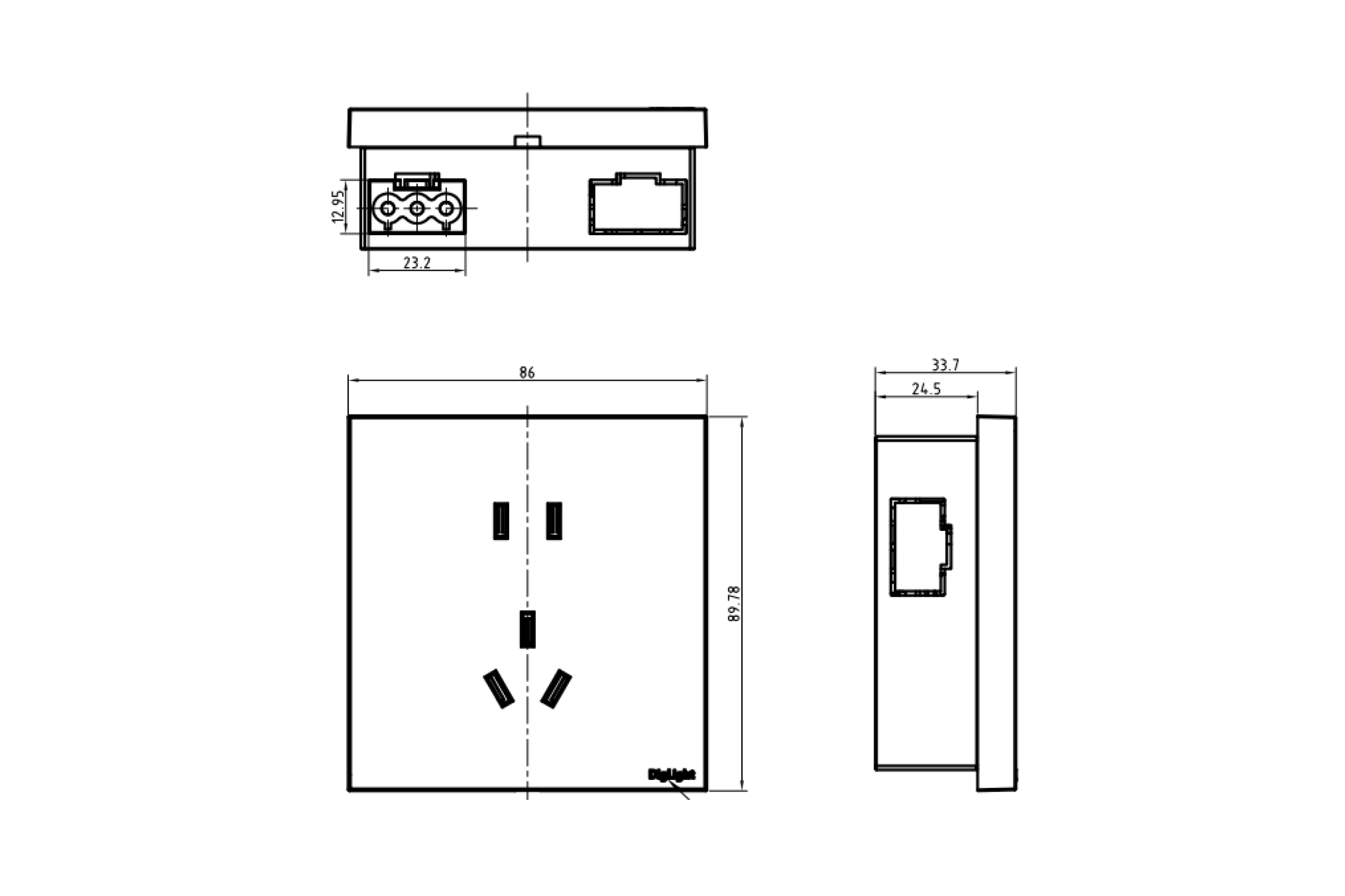

Junction box and five-hole socket integrated products, no on-site wiring. It is used with flat conduit. The junction box is ultra-thin, only 24.5mm thick, and can be connected horizontally and side by side.
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL8625Z10AV2 | 16mm | 3×2.5mm² | 10A | 250VAC | -25~+65°C | IP20 |

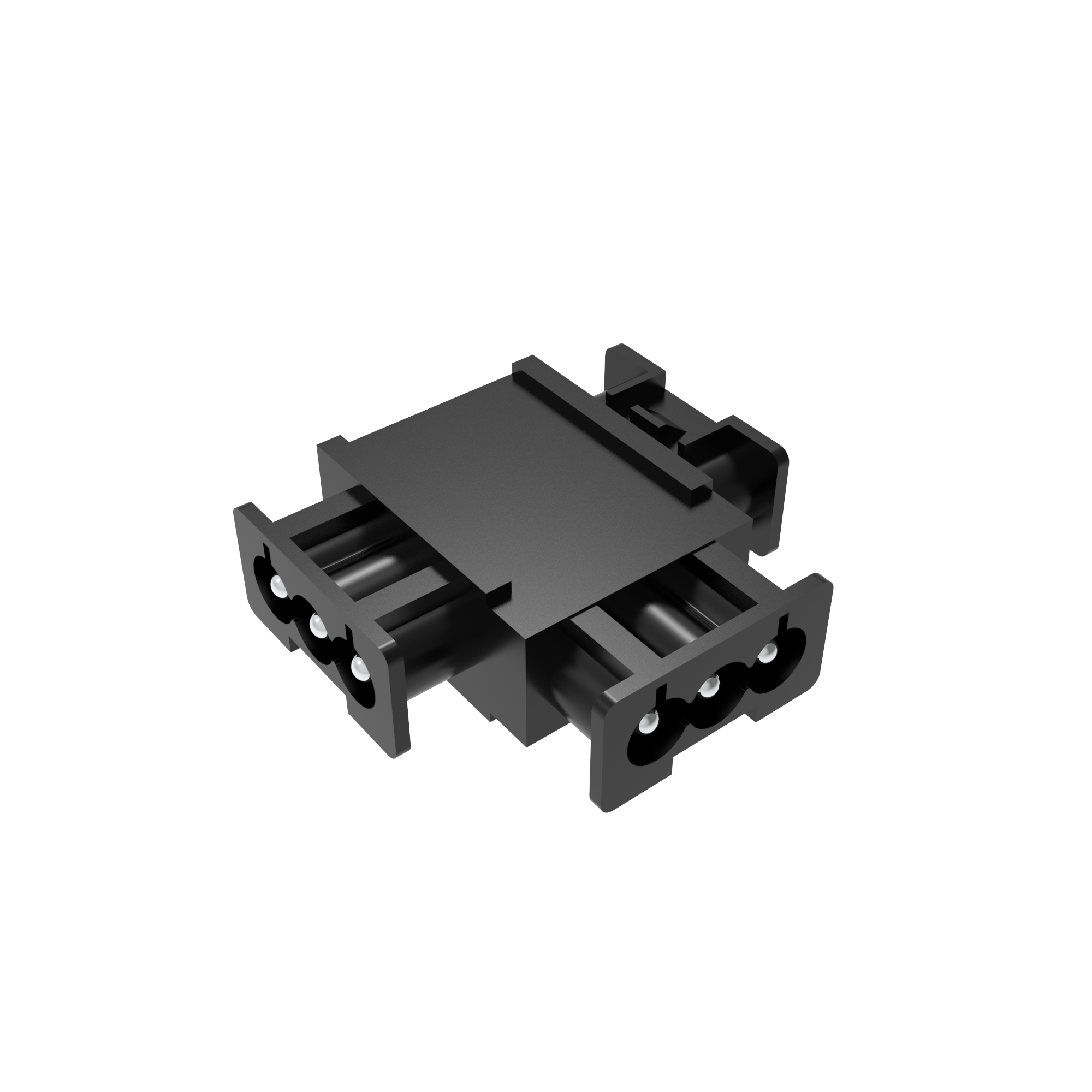

Flat tee connector-340B
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-FXQ-T-340B | 16mm | 3×4mm² | 25A | 250VAC | -25~+65°C | IP20 |

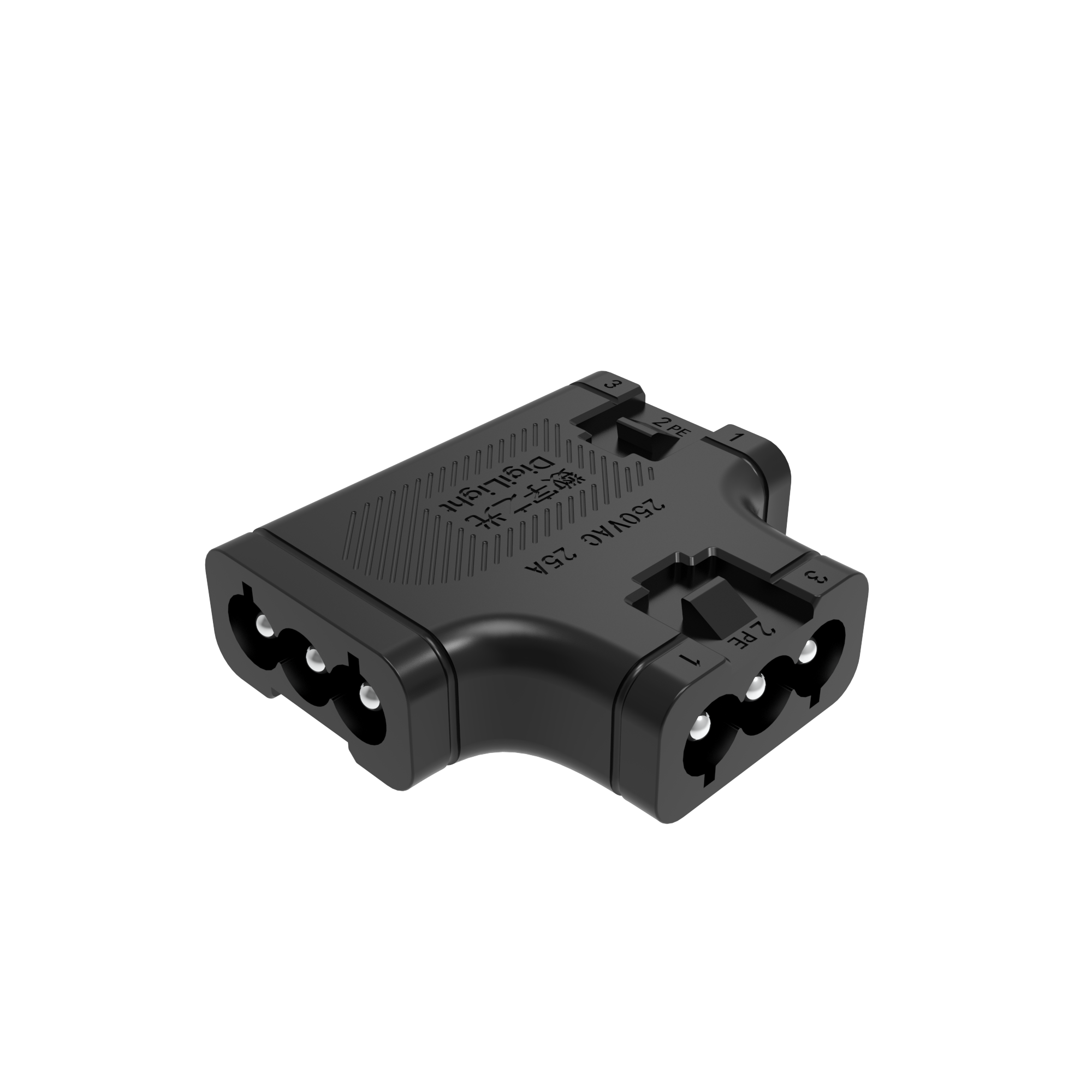

Flat tee connector-340C
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-FXQ-T-340C | 16mm | 3×4mm² | 25A | 250VAC | -25~+65°C | IP20 |

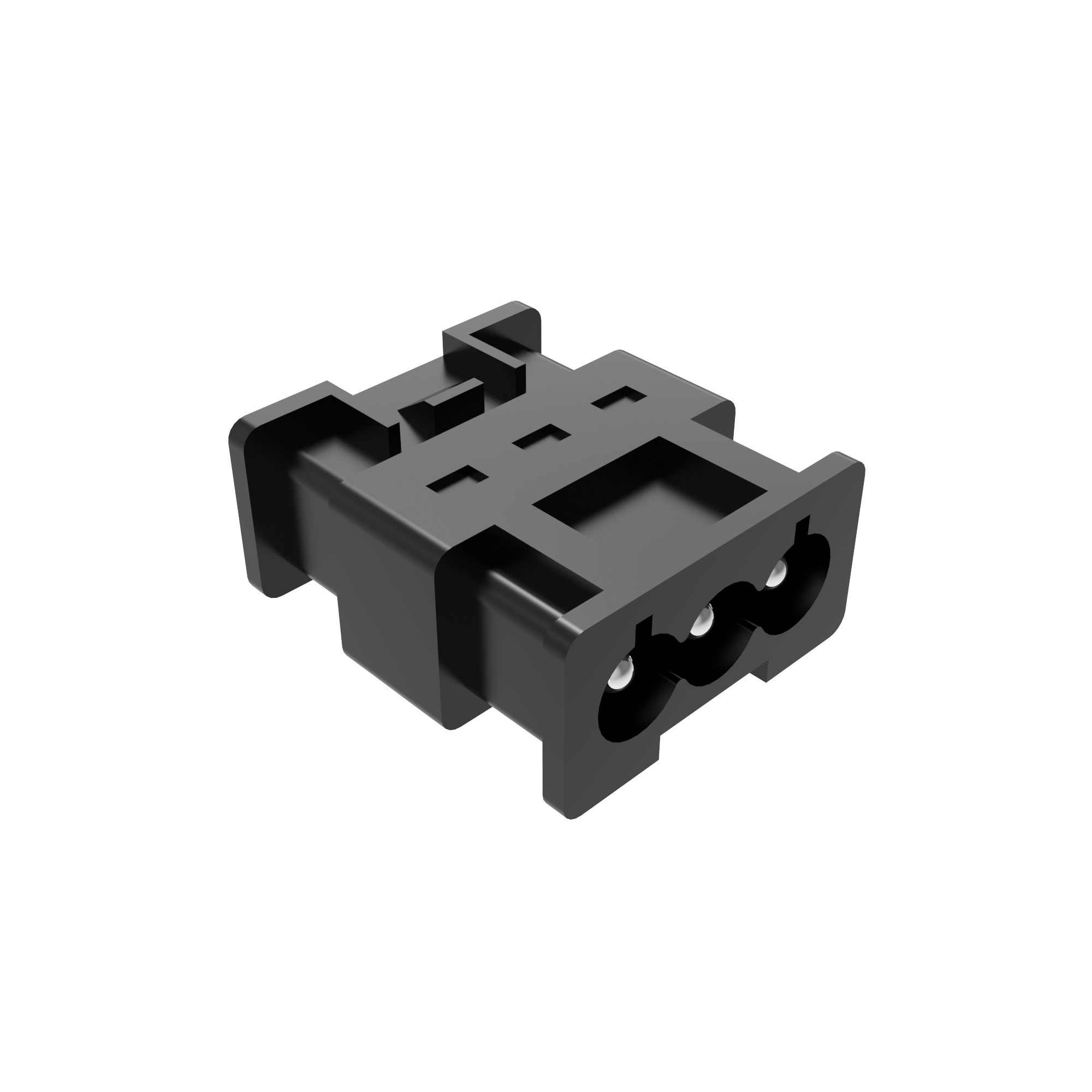

Straight splitter
Product appearance
Product size
Product specification
| Model | Diameter | Conductor | Rated current | Rated voltage | Temperature | Protection level |
| DL-FXQ-O-340B | 16mm | 3×4mm² | 25A | 250VAC | -25~+65°C | IP20 |

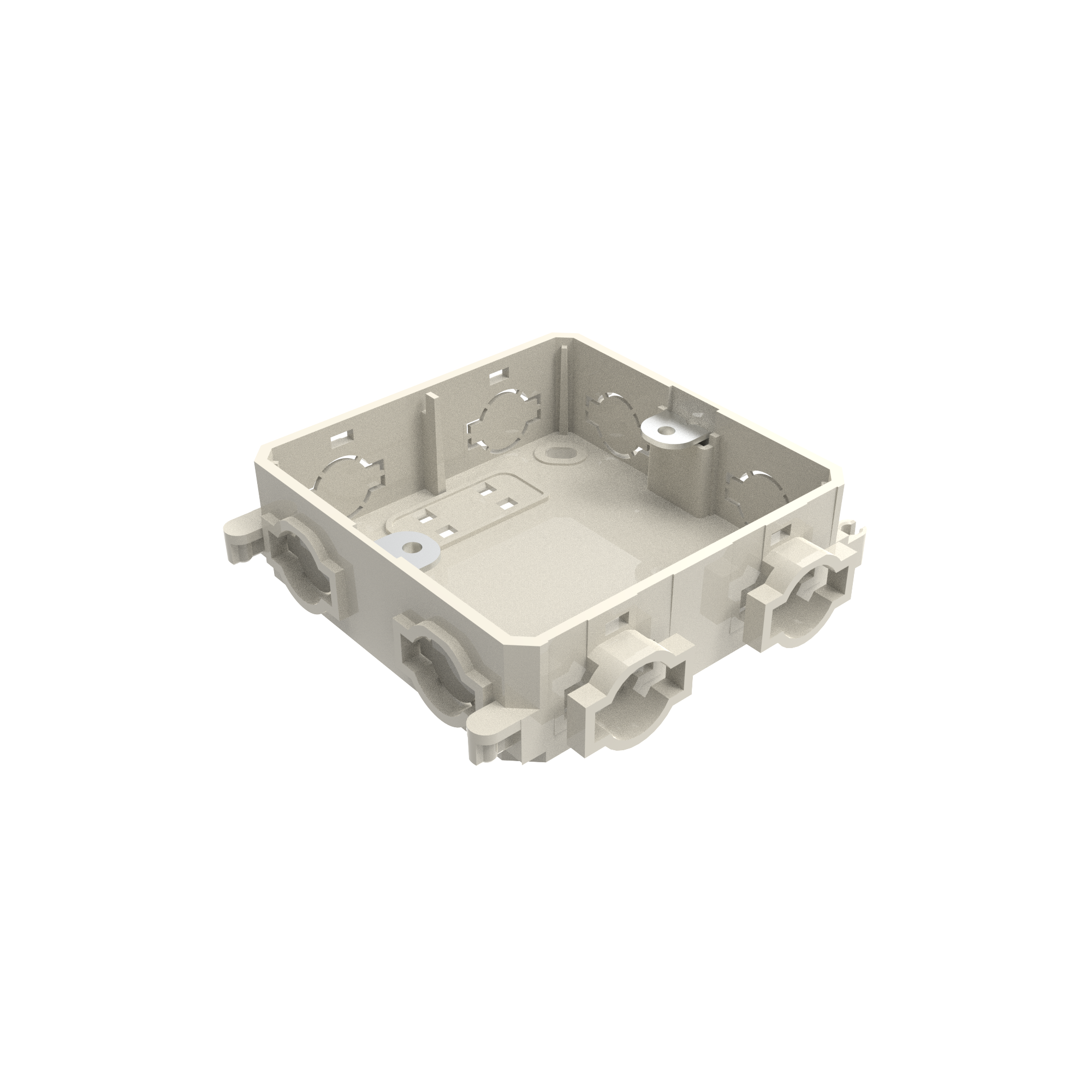

Ultra-thin junction box 8630
Product appearance
Product specification
| Model | Size | Color | Material |
| DL-XH8630 | 95.5*93.2*29.5mm | White | PVC |

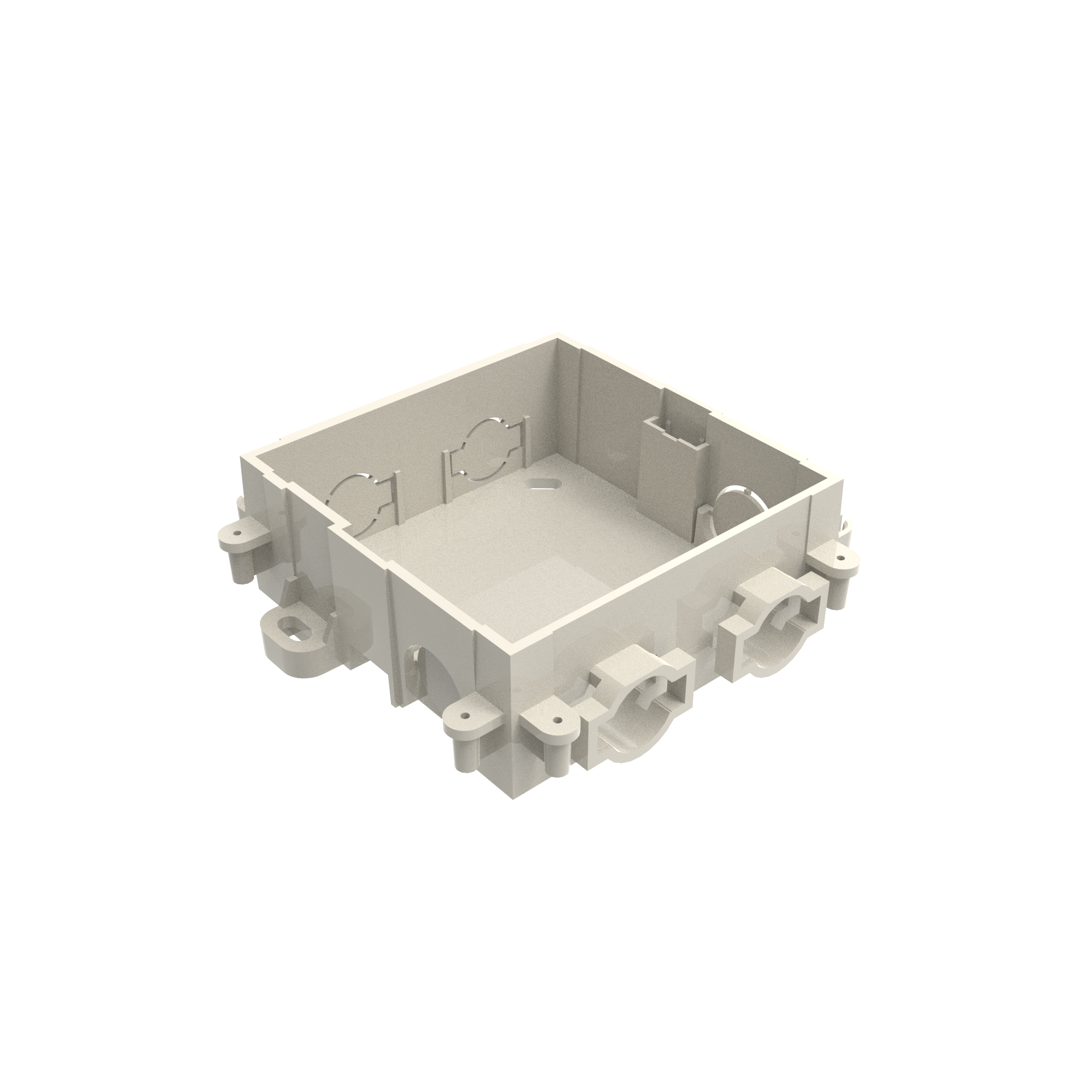

Ultra-thin junction box 8625
Product appearance
Product specification
| Model | Size | Color | Material |
| DL-XH8625 | 92*86*24.5mm | White | PVC |

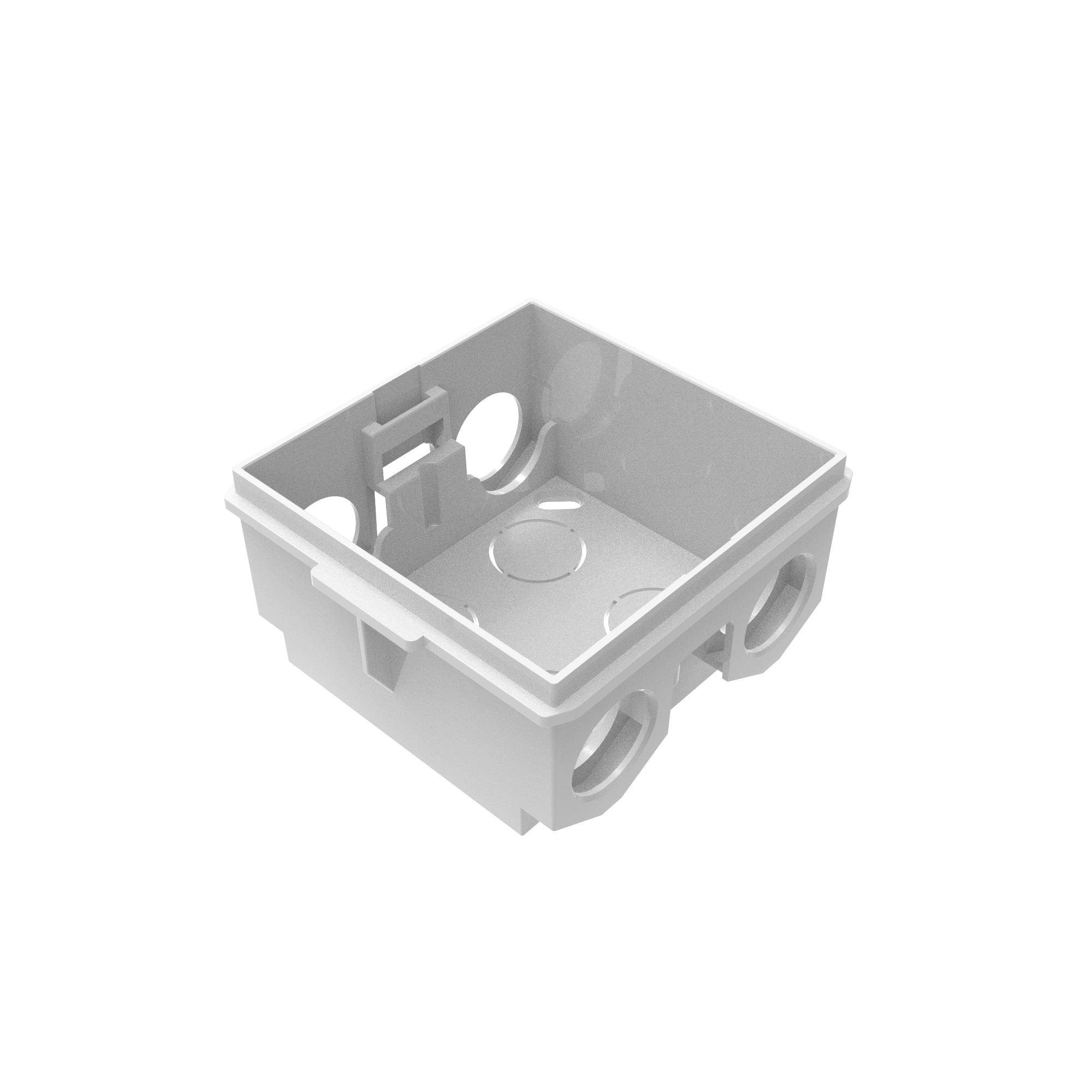

Built-up junction box 8650
Product appearance
Product specification
| Model | Size | Color | Material |
| DL-XH8650 | 90*84.5*44mm | White | PVC |

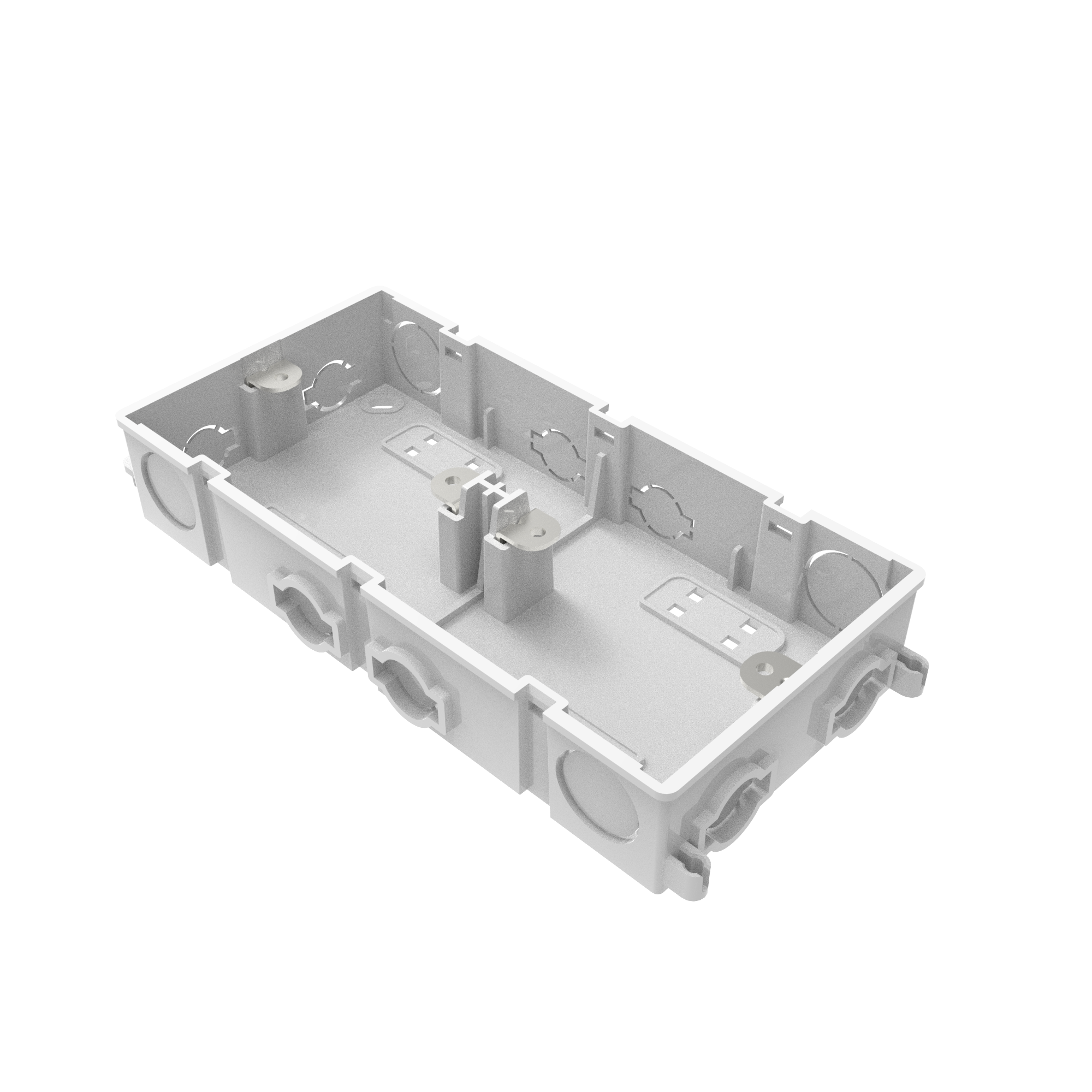

Fabricated junction box 17230
Product appearance
Product specification
| Model | Size | Color | Material |
| DL-XH17230 | 178×83.6×H29.5mm | White | PVC |
