Smart Panel
KNX system products
1-Gang 2-Button Smart Panel
Product Features
- Switching and dimming
- Value sending
- Special scene function
- Logic functions
- Blind/shutter control
- Scene recall and storage
- Short-press/Long-press operation
- LED indicator control
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Operation & Indication
Each button has a dedicated LED indicator
Red LED and programming button for physical address assignment
Flashing green LED indicates normal operation at the application layer
Protection Rating
IP Rating: IP20
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-OS/BP1032.1 | 86*86*10.2mm(L*W*H) | — | Standard 86 Junction Box Mounting | — |
2-Gang 4-Button Smart Panel
Product Features
- Switching and dimming
- Value sending
- Special scene function
- Logic functions
- Blind/shutter control
- Scene recall and storage
- Short-press/Long-press operation
- LED indicator control
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Operation & Indication
Each button has a dedicated LED indicator
Red LED and programming button for physical address assignment
Flashing green LED indicates normal operation at the application layer
Protection Rating
IP Rating: IP20
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-OS/BP1034.1 | 86*86*10.2mm(L*W*H) | — | Standard 86 Junction Box Mounting | — |
3-Gang 6-Button Smart Panel
Product Features
- Switching and dimming
- Value sending
- Special scene function
- Logic functions
- Blind/shutter control
- Scene recall and storage
- Short-press/Long-press operation
- LED indicator control
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Operation & Indication
Each button has a dedicated LED indicator
Red LED and programming button for physical address assignment
Flashing green LED indicates normal operation at the application layer
Protection Rating
IP Rating: IP20
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-OS/BP1036.1 | 86*86*10.2mm(L*W*H) | — | Standard 86 Junction Box Mounting | — |
4-Gang 8-Button Smart Panel
Product Features
- Switching and dimming
- Value sending
- Special scene function
- Logic functions
- Blind/shutter control
- Scene recall and storage
- Short-press/Long-press operation
- LED indicator control
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power: DC 21V ~ 30V
Power Consumption: < 1 W
Operation & Indication
Each unit features a programmable backlight
Each button has a dedicated LED indicator
Red LED and programming button for physical address assignment
Flashing green LED indicates normal operation at the application layer
Protection Rating
IP Rating: IP20
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/IBP1038.1 | 86*86*10.5mm(L*W*H) | — | Standard 86 Junction Box Mounting | — |

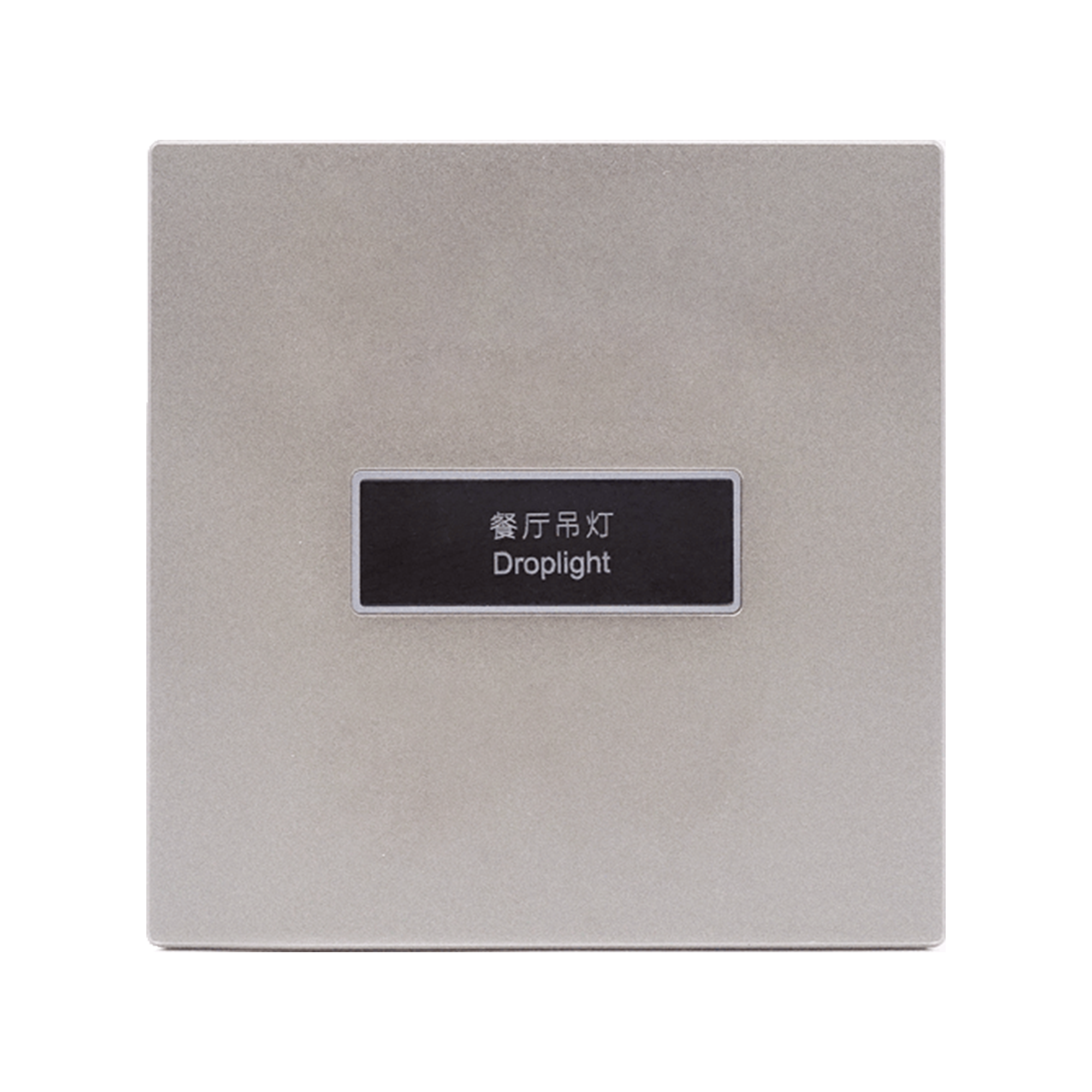

1-Gang 2-Button Smart Panel - Metal
Product Features
- Switching and dimming
- Value sending
- Special scene function
- Logic functions
- Blind/shutter control
- Scene recall and storage
- Short-press/Long-press operation
- LED indicator control
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power: DC 21V ~ 30V
Power Consumption: < 1 W
Operation & Indication
Each unit features a programmable backlight
Each button has a dedicated LED indicator
Red LED and programming button for physical address assignment
Flashing green LED indicates normal operation at the application layer
Protection Rating
IP Rating: IP20
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/IBP2201.1 | 86*86*6.7mm(L*W*H) | — | Standard 86 Junction Box Mounting | — |

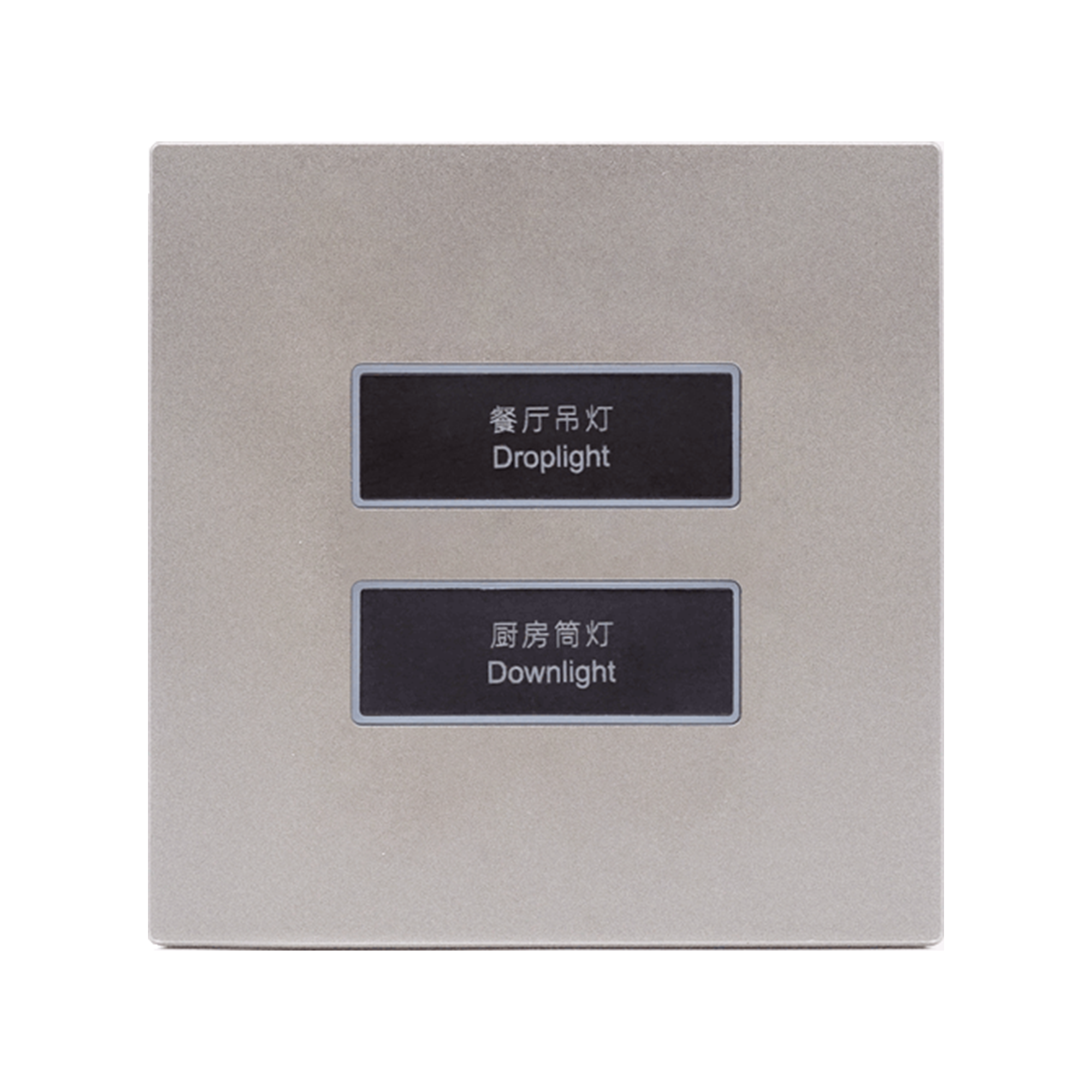

2-Gang 4-Button Smart Panel - Metal
Product Features
- Switching and dimming
- Value sending
- Special scene function
- Logic functions
- Blind/shutter control
- Scene recall and storage
- Short-press/Long-press operation
- LED indicator control
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power: DC 21V ~ 30V
Power Consumption: < 1 W
Operation & Indication
Each unit features a programmable backlight
Each button has a dedicated LED indicator
Red LED and programming button for physical address assignment
Flashing green LED indicates normal operation at the application layer
Protection Rating
IP Rating: IP20
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/IBP4201.1 | 86*86*6.7mm(L*W*H) | — | Standard 86 Junction Box Mounting | — |
3-Gang 6-Button Smart Panel - Metal
Product Features
- Switching and dimming
- Value sending
- Special scene function
- Logic functions
- Blind/shutter control
- Scene recall and storage
- Short-press/Long-press operation
- LED indicator control
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power: DC 21V ~ 30V
Power Consumption: < 1 W
Operation & Indication
Each unit features a programmable backlight
Each button has a dedicated LED indicator
Red LED and programming button for physical address assignment
Flashing green LED indicates normal operation at the application layer
Protection Rating
IP Rating: IP20
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/IBP6201.1 | 86*86*6.7mm(L*W*H) | — | Standard 86 Junction Box Mounting | — |
1-Gang 2-Button Smart Panel with 3-Channel Relay
Product Features
- Switching and dimming
- Value sending
- Special scene function
- Logic functions
- Blind/shutter control
- Scene recall and storage
- Short-press/Long-press operation
- LED indicator control
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power: DC 21V ~ 30V
Power Consumption: < 1 W
Operation & Indication
Each unit features a programmable backlight
Each button has a dedicated LED indicator
Red LED and programming button for physical address assignment
Flashing green LED indicates normal operation at the application layer
Protection Rating
IP Rating: IP20
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/MBS2221.10.1 | 86*86*6.7mm(L*W*H) | — | Standard 86 Junction Box Mounting | With 3 channels of 10A relay output |
2-Gang 4-Button Smart Panel with 3-Channel Relay
Product Features
- Switching and dimming
- Value sending
- Special scene function
- Logic functions
- Blind/shutter control
- Scene recall and storage
- Short-press/Long-press operation
- LED indicator control
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power: DC 21V ~ 30V
Power Consumption: < 1 W
Operation & Indication
Each unit features a programmable backlight
Each button has a dedicated LED indicator
Red LED and programming button for physical address assignment
Flashing green LED indicates normal operation at the application layer
Protection Rating
IP Rating: IP20
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/MBS4221.10.1 | 86*86*6.7mm(L*W*H) | — | Standard 86 Junction Box Mounting | With 3 channels of 10A relay output |
3-Gang 6-Button Smart Panel with 3-Channel Relay
Product Features
- Switching and dimming
- Value sending
- Special scene function
- Logic functions
- Blind/shutter control
- Scene recall and storage
- Short-press/Long-press operation
- LED indicator control
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power: DC 21V ~ 30V
Power Consumption: < 1 W
Operation & Indication
Each unit features a programmable backlight
Each button has a dedicated LED indicator
Red LED and programming button for physical address assignment
Flashing green LED indicates normal operation at the application layer
Protection Rating
IP Rating: IP20
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/MBS6221.10.1 | 86*86*6.7mm(L*W*H) | — | Standard 86 Junction Box Mounting | With 3 channels of 10A relay output |

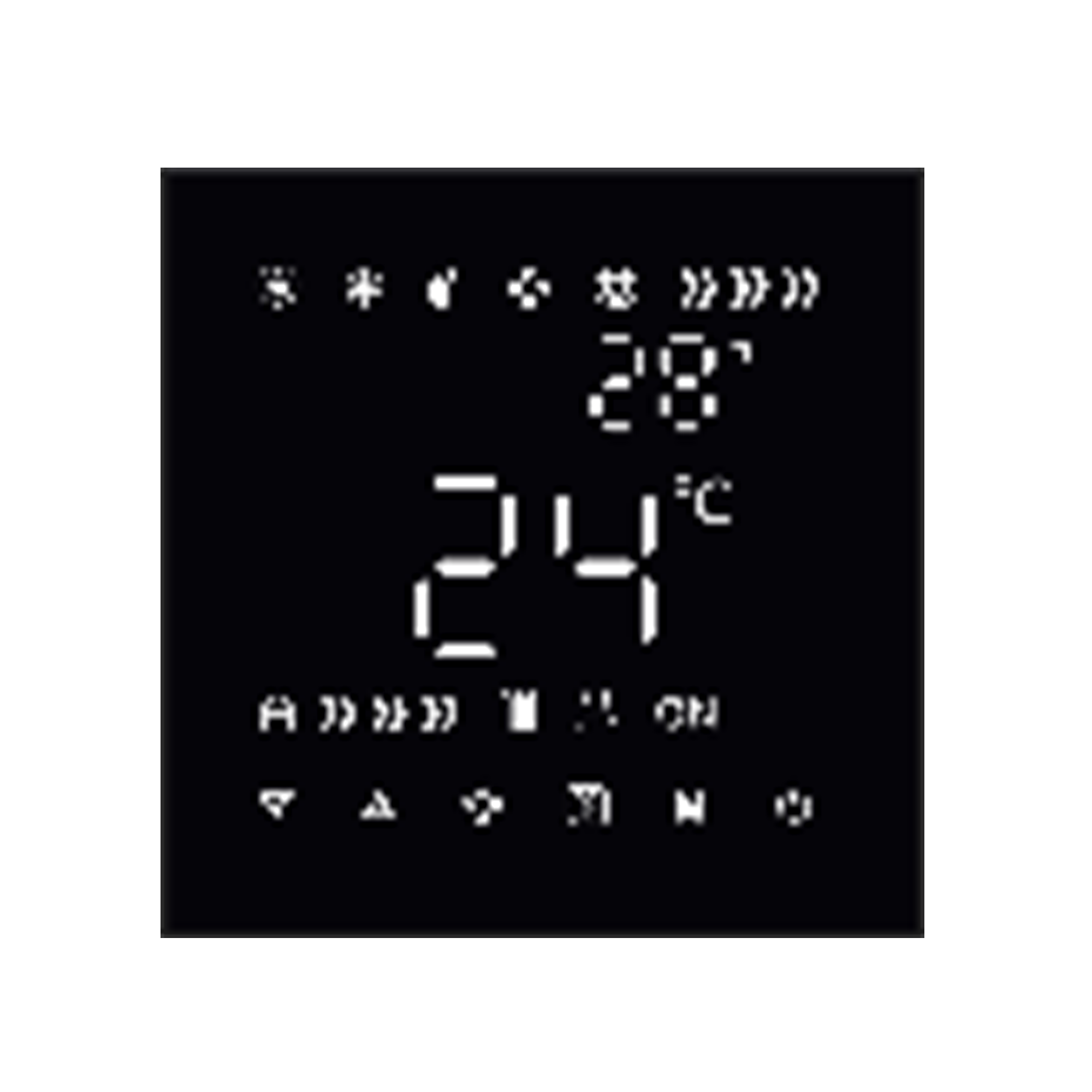

Smart Thermostat Panel with Knob
Product Features
Core Functions
Temperature and humidity display and reporting
Set temperature display and transmission
3-speed / 5-speed fan switching support
Mode setting
Programmable backlight
Status feedback support
HVAC / floor heating / fresh air system control
Installation
Standard 86-type wall box mounting
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power Supply: DC 12V ~ 30V
Power Consumption: < 1 W
Operation & Indication
Features a programmable backlight
Red LED and programming button for physical address assignment
Flashing green LED indicates normal operation at the application layer
Protection Rating
IP Rating: IP20
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/IBT4128.1 | 86*86*6.7mm(L*W*H) | — | Standard 86 Junction Box Mounting | — |
2.8-inch Smart Touch Thermostat Panel
Product Features
Core Functions
Temperature and humidity display and reporting
Set temperature display and transmission
3-speed / 5-speed fan switching support
Mode setting
Programmable backlight
Status feedback support
HVAC / floor heating / fresh air system control
Installation
Standard 86-type wall box mounting
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power Supply: DC 12V ~ 30V
Power Consumption: < 1 W
Operation & Indication
Features a programmable backlight
Red LED and programming button for physical address assignment
Flashing green LED indicates normal operation at the application layer
Protection Rating
IP Rating: IP20
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/ITP28211.1 | 86*86*6.7mm(L*W*H) | — | Standard 86 Junction Box Mounting | — |
3-in-1 Smart Thermostat Panel
Product Features
Core Functions
Temperature and humidity display and reporting
Set temperature display and transmission
3-speed / 5-speed fan switching support
Mode setting
Programmable backlight
Status feedback support
HVAC / floor heating / fresh air system control
Installation
Standard 86-type wall box mounting
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power Supply: DC 12V ~ 30V
Power Consumption: < 1 W
Operation & Indication
Features a programmable backlight
Red LED and programming button for physical address assignment
Flashing green LED indicates normal operation at the application layer
Protection Rating
IP Rating: IP20
Temperature Range
Operating: -5 °C to +45 °C
Storage: -25 °C to +55 °C
Transport: -25 °C to +70 °C
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/TC18603.1 | 86*86*6.7mm(L*W*H) | — | Standard 86 Junction Box Mounting | — |

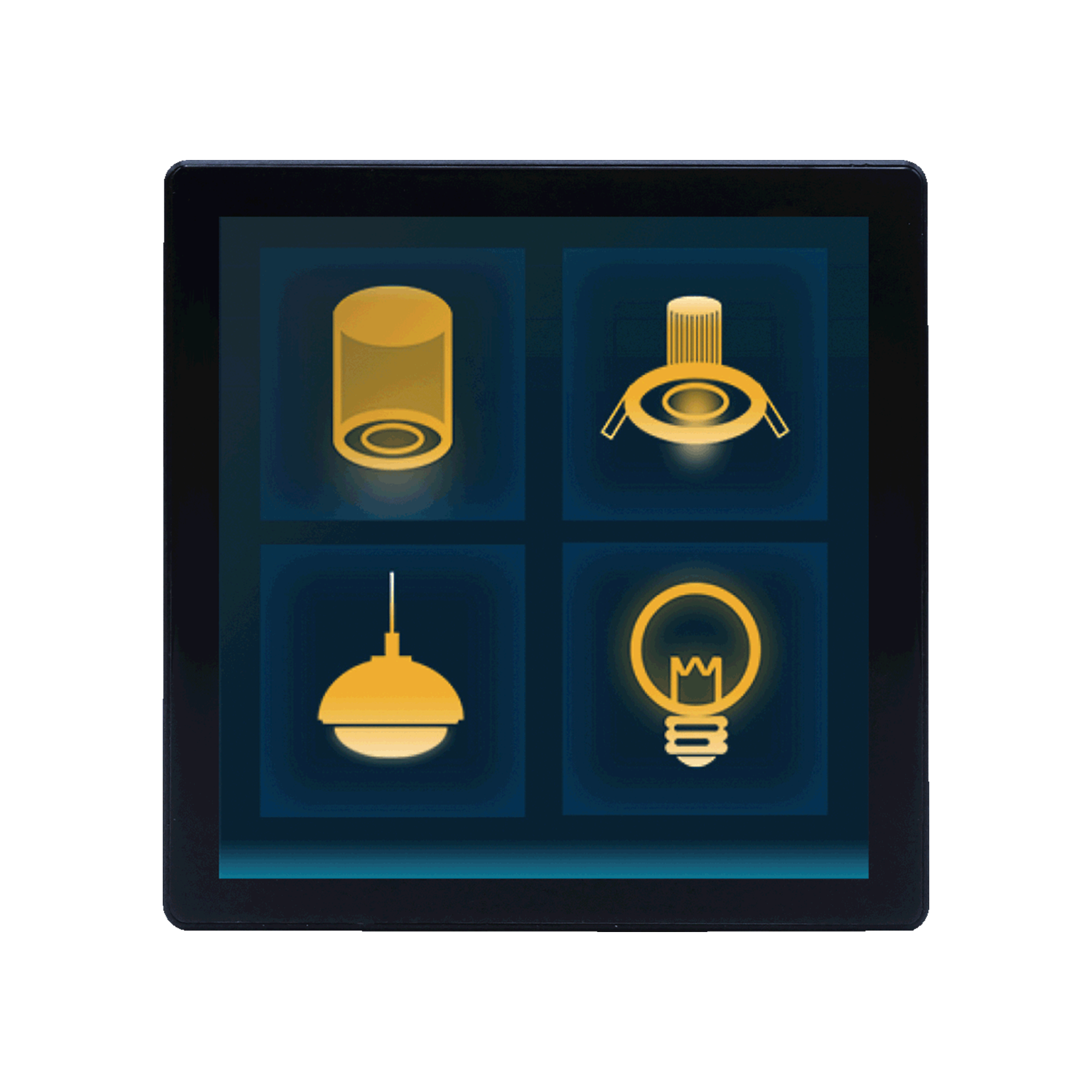

4-inch Smart HD Touch Screen
Product Features
- Supports switching, dimming, blind/shutter control, scenes, and thermostat functions
- 5-inch display with built-in proximity and illuminance sensors for automatic backlight adjustment
- Daily scheduling support
- ETS group address import functionality
- Interface updates via USB or TF Card
- User-friendly interface design software included
- Chinese language display support
- Customizable icons, backgrounds, and other resources
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power Supply: DC 12V ~ 30V
Power Consumption: < 4 W
Sensing & Hardware
Proximity Sensing Distance: < 30 cm
Processor: Quad-core A7, 1.0 GHz
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/ITP40211.1 | 86*86*5.75mm(L*W*H) | — | Standard 86 Junction Box Mounting | Resolution: 720 x 720 |

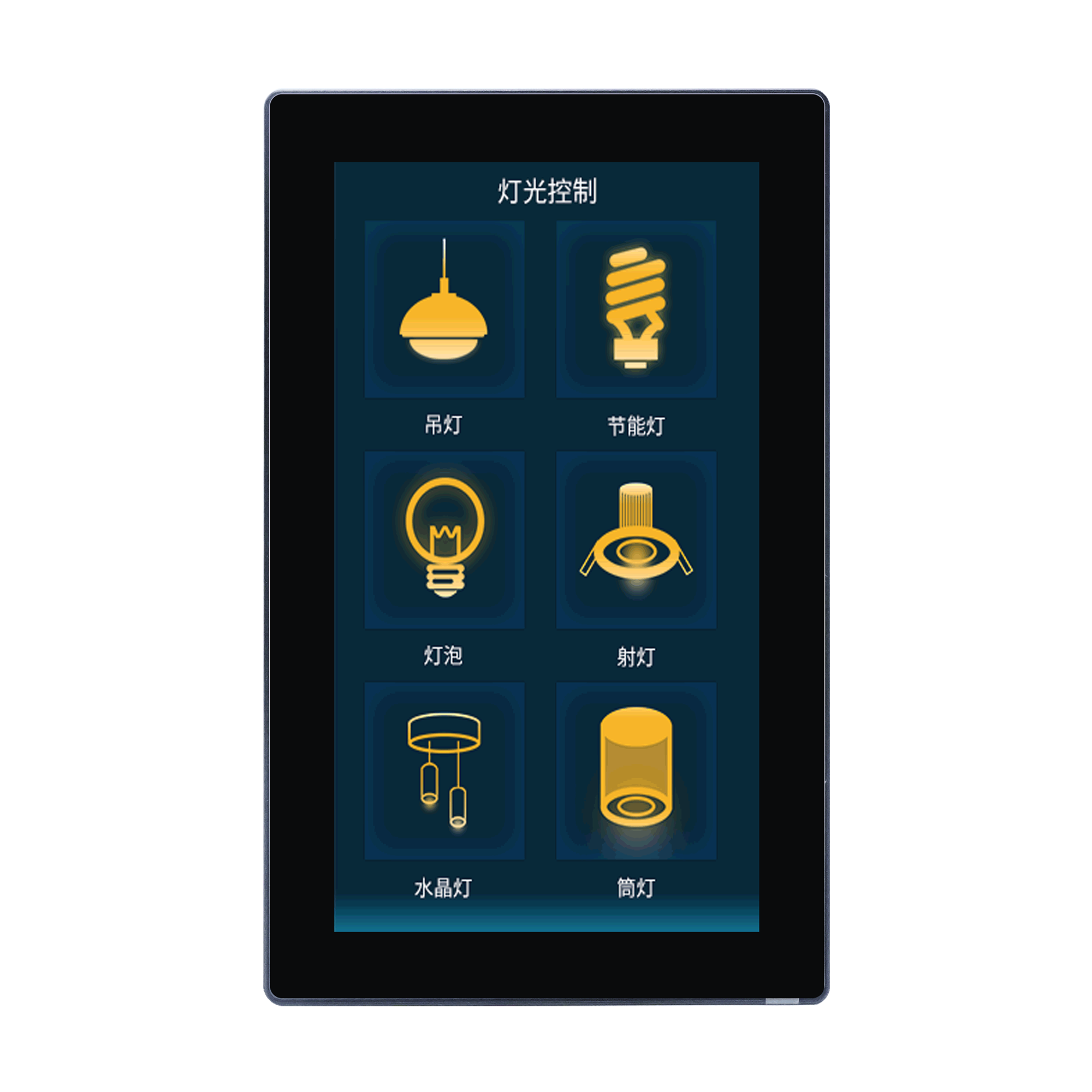

5-inch Smart HD Touch Screen
Product Features
- Supports switching, dimming, blind/shutter control, scenes, and thermostat functions
- 5-inch display with built-in proximity and illuminance sensors for automatic backlight adjustment
- Daily scheduling support
- ETS group address import functionality
- Interface updates via USB or TF Card
- User-friendly interface design software included
- Chinese language display support
- Customizable icons, backgrounds, and other resources
Product Parameters
Electrical Parameters
Bus Voltage: DC 21V ~ 30V (supplied via bus)
Bus Current: < 12 mA
Bus Power Consumption: < 360 mW
Auxiliary Power Supply: DC 12V ~ 30V
Power Consumption: < 4 W
Sensing & Hardware
Proximity Sensing Distance: < 30 cm
Processor: Quad-core A7, 1.0 GHz
Product appearance
Product specification
| Model | Product Dimensions | Modulus | Installation | Remark |
| DL-E/ITP50211.1 | 140*86*7.3mm(L*W*H) | — | Standard 86 Junction Box Mounting | Resolution: 540*960 |
Support
© 2025 DigiLight Intelligent Technology Group Limited. All rights reserved. Web ICP backup 2022030759 No.
